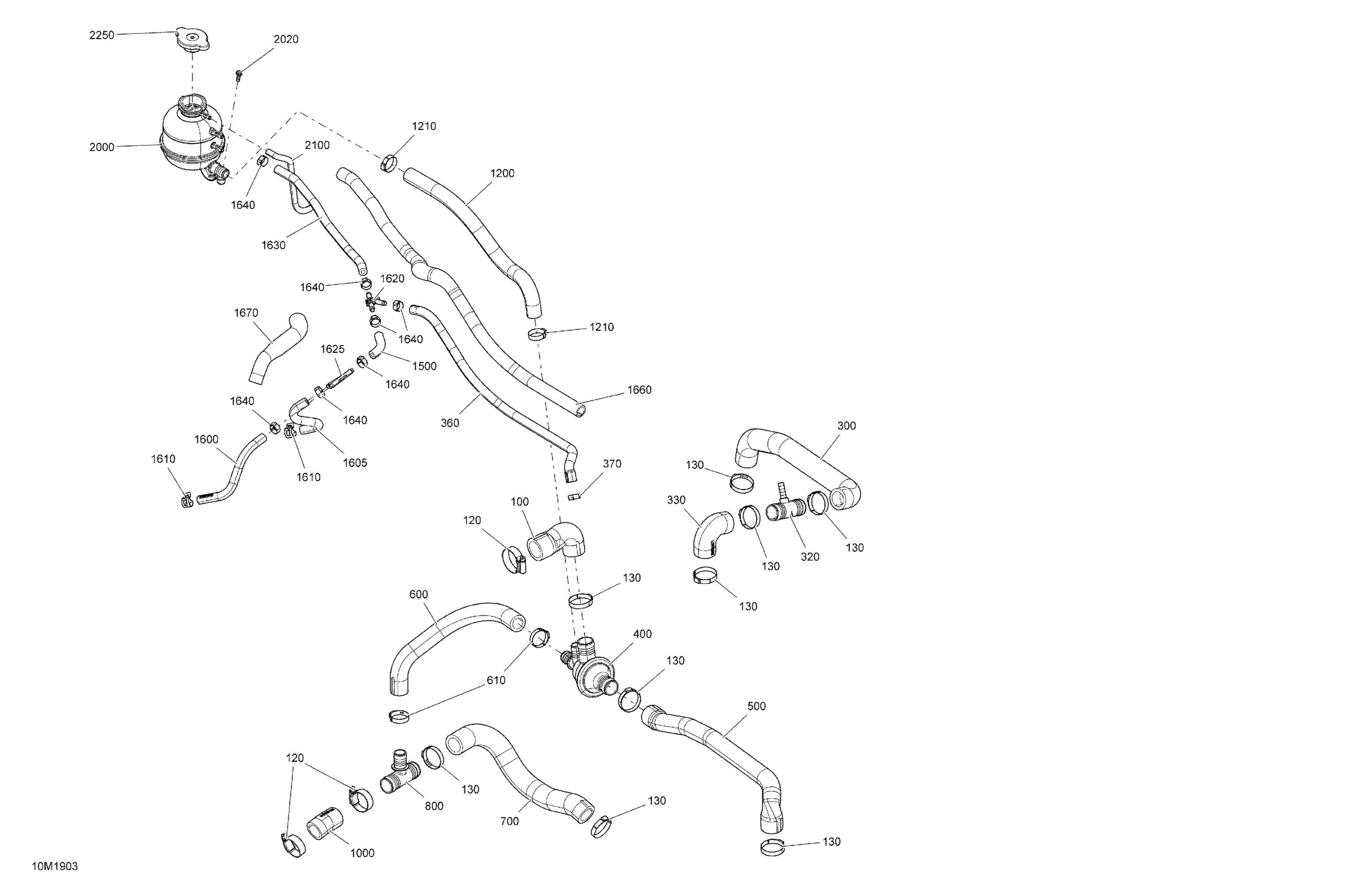

Ski-Doo MXZ 600 CARB, 2019 Cooling - 600 CARB & 600HO E-TEC Diagram

#

Description
Price

100

Engine Outlet Hose

509000678

$18.43

120

Aba Gear Clamp, 26-38 MM

509000443

$5.68

130

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

300

Radiator Hose

509000670

$34.58

310

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

320

T-Fitting

509000510

$11.52

330

Radiator Hose This part replaces 509000671.

509001066

$18.43

340

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

360

Bleeder Hose

509000502

$23.82

370

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Thermostat Housing

509000499

$39.97

500

Thermostat Outlet Hose

509000679

$25.35

510

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

600

Bypass Hose

509000672

$24.58

610

Crimp Clamp

293650099

$4.60

700

Radiator Hose

509000673

$22.28

710

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

800

T-Fitting

509000372

$7.87

1000

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

1010

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1200

Filling Hose

509000676

$23.82

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1500

Was 415129508 Bleeder Hose

219704416

$11.83

1600

Bleeder Hose

509000769

$10.78

1605

Bleeder Hose

509000768

$9.86

1610

Spring Clamp

293650210

$5.22

1620

Y-Fitting

293710140

$7.31

1625

Y-Fitting

293710059

$8.19

1630

Was 415129508 Bleeder Hose

219704416

$11.83

1640

Oetiker Clamp

293650046

$2.33

1660

Tubing 16 Mm 1000Mm Long

219704408

$6.23

1670

Protector Tube, 16 mm

513033231

$11.12

2000

Coolant Tank

509000368

$86.89

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

2250

Radiator Pressure Cap

509000180

$11.69
