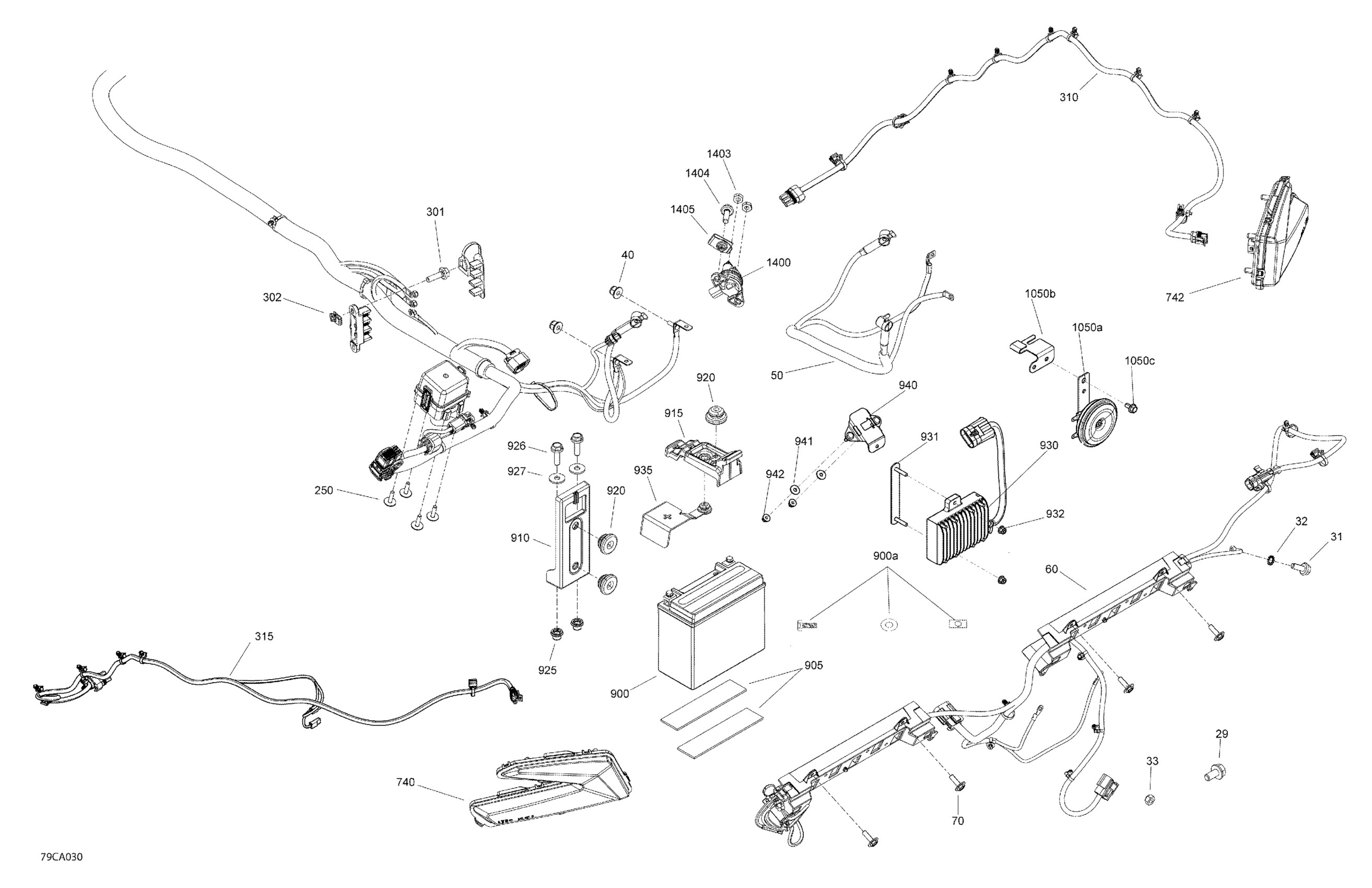

Can-Am Maverick Turbo RR - XRS - CE, 2021 Electric - Rear System Diagram

#

Description
Price

29

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

32

External Serrated Lock Washer 6 mm

234461608

$1.06

33

Elastic Stop Nut M6, Brass

232561200

$4.03

40

Elastic Stop Nut M6, Brass

232561200

$4.03

50

Starter Wiring Harness

710007440

$64.15

60

Junction Wiring Harness

710007023

$87.28

60

Junction Wiring Harness

710007303

$87.28

70

Screw PT Type K-50 X 16

250000959

$2.00

250

Screw M4 X 16

250000725

$3.30

301

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

302

Panel Nut M6 X 1.0

250100198

$1.99

310

Rear Wiring Harness

710006424

$24.60

315

LH Rear Wiring Harness

710006808

$105.19

740

LH Tail Light

710004743

$120.12

742

RH Tail Light

710004744

$120.12

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Rubber Pad

293830126

$12.64

910

Fixation Plate

710004788

$9.48

915

Fixation Plate

710004789

$6.72

920

Stopper Rubber

705014429

$6.09

925

Insert Half Hex Body M6 x 1.0

250100199

$2.91

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

927

Flat Washer 6 mm

234062410

$0.73

930

Voltage Regulator

710006824

$569.99

931

Voltage Regulator Support

710006987

$10.33

932

Hex. Flange Elastic Nut M6

233261494

$1.45

935

Battery Cable Cap

710006471

$2.59

940

Cable Support

710009507

$8.84

941

Stainless Steel Flat Washer

234062670

$2.00

942

Hex. Flange Elastic Nut M6

233261494

$1.45

1050a

Horn

710004791

$36.54

1050b

Back Up Alarm Support | SKU - 7SLH - 7TLJ

710006789

$22.36

1050c

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

1400

Starter Relay

278003012

$40.27

1403

Elastic Stop Nut M6, Brass

232561200

$4.03

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1405

Panel Nut M6 X 1.0

250100198

$1.99
