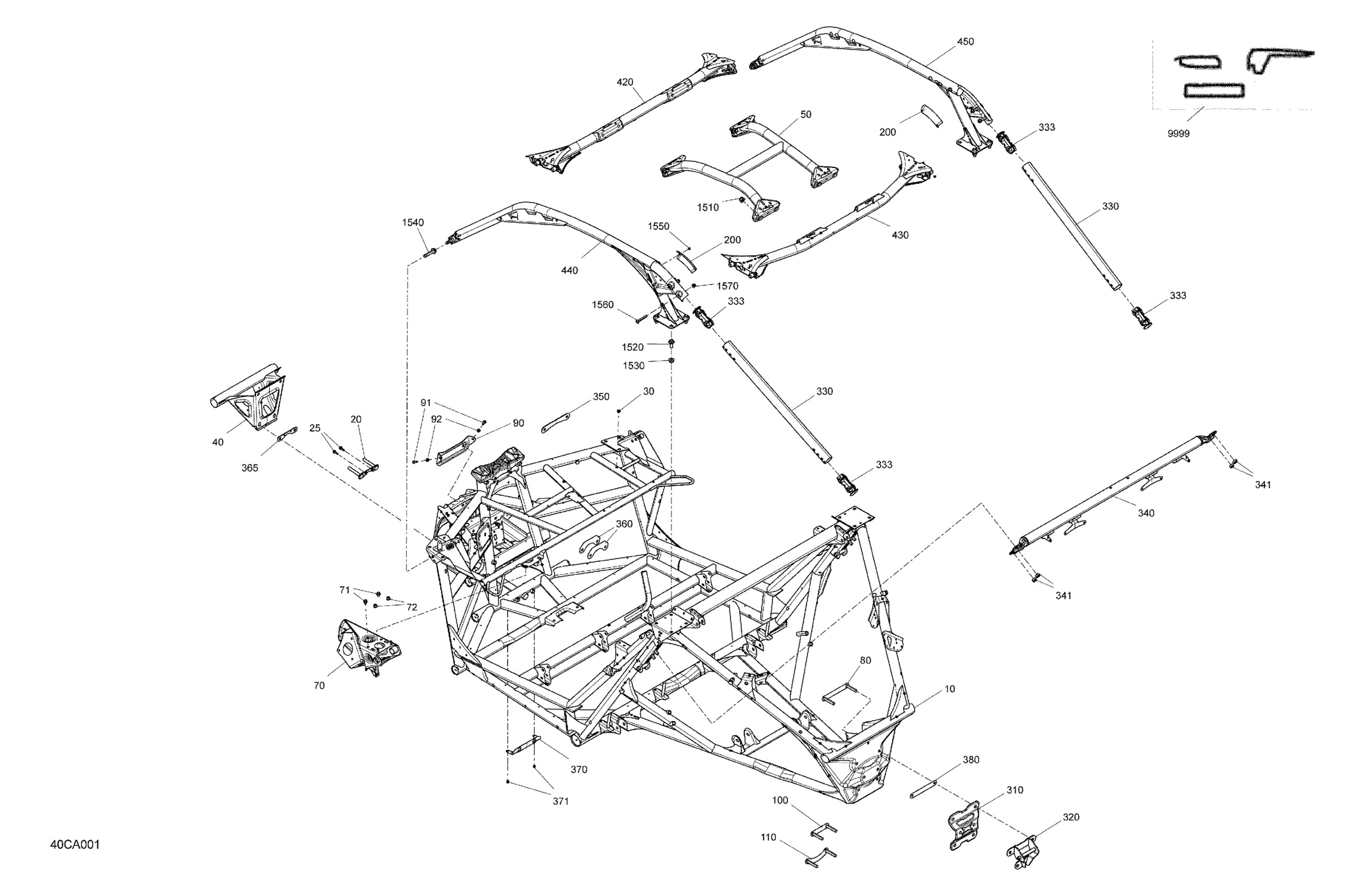

Can-Am Maverick Turbo RR - XRS - CE, 2021 Frame - System Diagram

Black, Frame Ass'y

715008510

$2,969.99

Macchiato Satin, Chassis Ass'y | Includes 10 to 10a1fw

715008789

$2,969.99

Front Plate

705207424

$18.43

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Deep Black, Front Bumper | Except Model Gold

705210400

$101.51

Added Cage | Except Model Gold Built in 2017

705206774

$91.99

DPS Support

705206924

$66.12

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

Hex. Elastic Flange Nut M8

233281416

$1.25

Rear Upper Plate

705206852

$19.20

Stifner Plate

705206877

$28.43

Hex. Flange Screw M6 X 16

207661654

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Rear Central Plate

705211558

$17.66

Rear Plate

705206854

$19.20

Black, LH Link Plate | Except Model Gold

705205926

$23.82

Rear Plate

705205750

$23.82

Black, Rear Attachement Hook

715004450

$89.97

Deep Black, Rear Pillar

705210066

$24.99

Sleeve

705210648

$9.29

Safety Belt Anchorage

705210001

$119.97

Elastic Stop Nut M12

232521416

$1.40

Connecting Plate

705211552

$4.95

Retaining Plate

705210249

$4.86

Front Plate | Package STD

705207438

$2.69

Support

706203122

$11.00

Pop Rivet 3/16"

390402200

$0.26

Front Upper Plate

705206069

$13.49

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

Black, LH Cage Ass'y

715008494

$399.99

Black, RH Cage Ass'y

715008500

$399.99

Elastic Flange Nut M12

233221466

$2.15

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

Hex Flange Nut m12

233121466

$0.68

Flange Screw M12 X 60

250000857

$6.08

Rivet 3/16"

293150102

$0.71

Torx Truss M8 X 65

250000901

$1.56

Elastic Flange Nut M8

250100025

$1.25

Wear Plate Kit | Includes 15a to 15a4

703501157

$10.14
