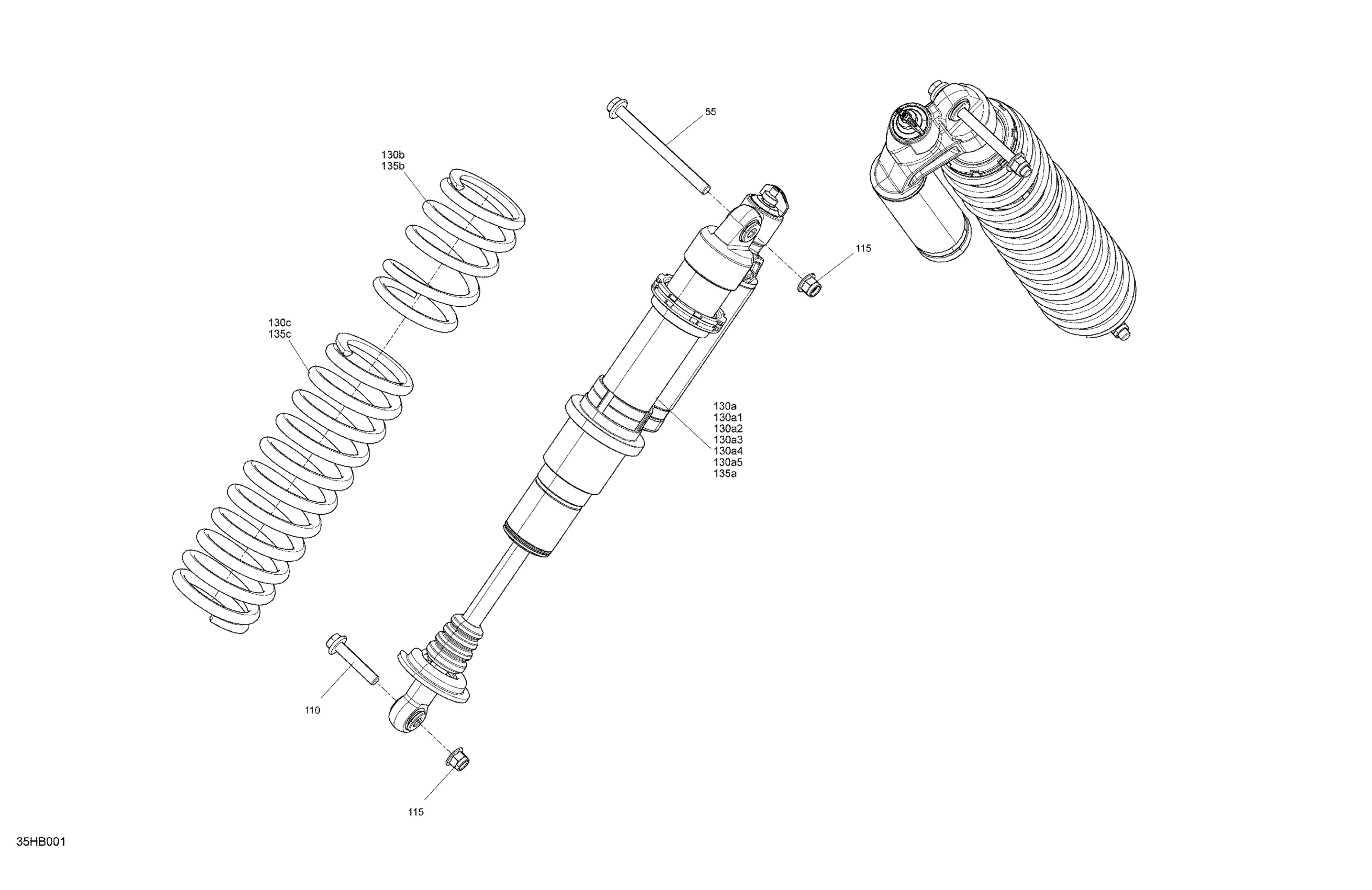

Can-Am Maverick Turbo RR - DS - CE, 2022 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$5.47

110

Flange Screw M12 X 60

250000857

$6.08

115

Elastic Flange Nut M12

233221466

$2.15

130a

LH Front Shock Absorber | Includes 130a to 130a5

706204763

$818.43

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130ad

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130b

Red Front Spring | Red

706203470

$96.89

130c

Red Front Spring | Red

706203471

$119.97

135a

RH Front Shock Absorber | Includes 135a to 135a5

706204764

$818.43

135b

Red Front Spring | Red

706203470

$96.89

135c

Red Front Spring | Red

706203471

$119.97
