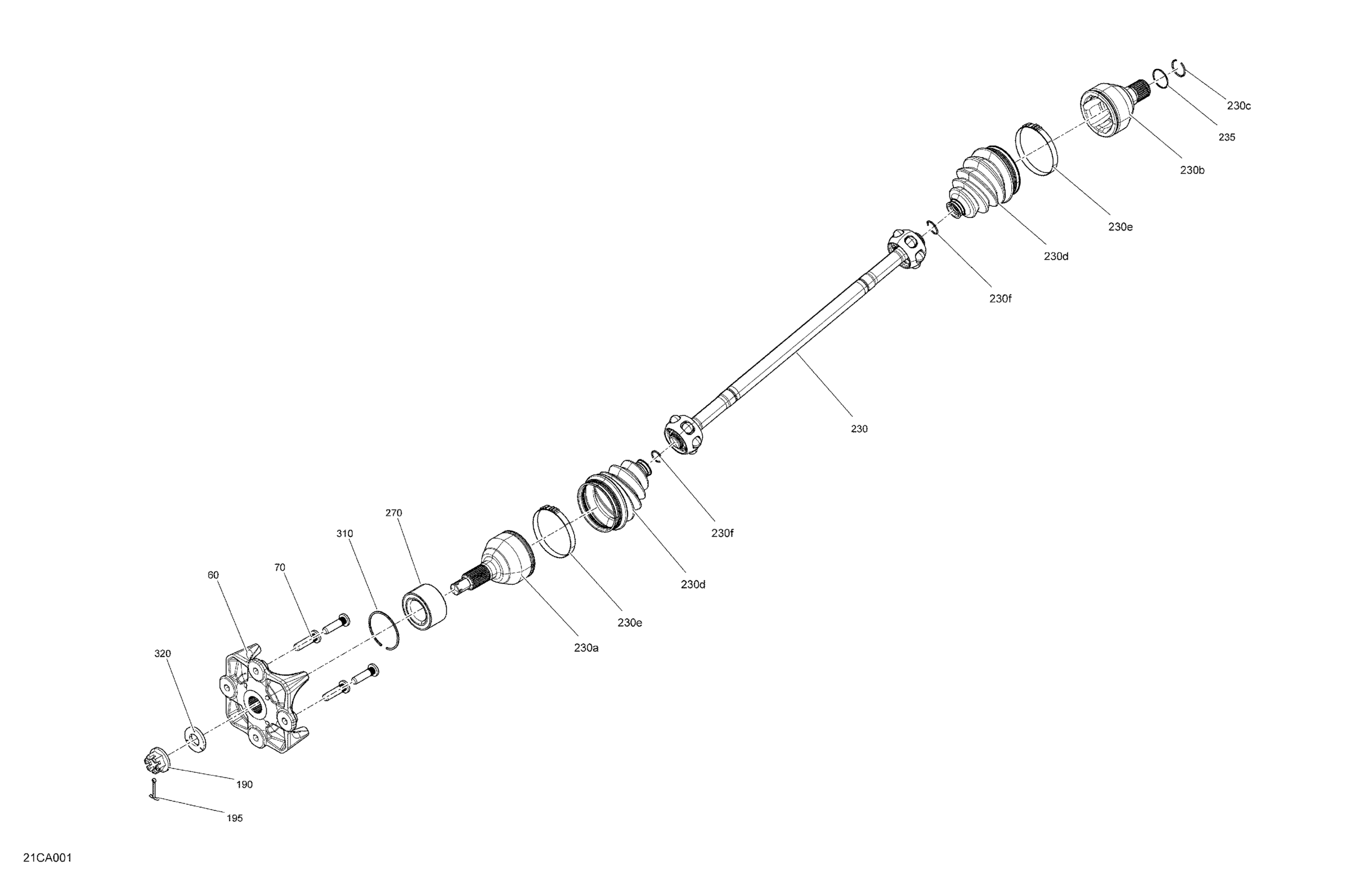

Can-Am Maverick Turbo R - DS - CE, 2021 Drive - Rear Section - Common Parts Diagram

Description

Price

Wheel Hub

705502122

$116.49

Wheel Stud M12X1.5

250300625

$3.91

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Performance CV Axle - Rear | Includes 230 to 230d2

705502154

$275.49

230a

CV Joint

715900447

$259.49

230b

Plunging Joint

715900448

$259.49

230c

Circlip Joint

715900449

$5.50

230d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$42.49

230e

Oetiker Clamp, Large

715900455

$11.58

230f

Oetiker Clamp, Small

715900456

$5.82

235

O-Ring

293300196

$2.51

270

Ball Bearing

293350151

$71.49

310

Circlip

293370102

$3.99

320

Conical Spring Washer M20

250200170

$14.74
