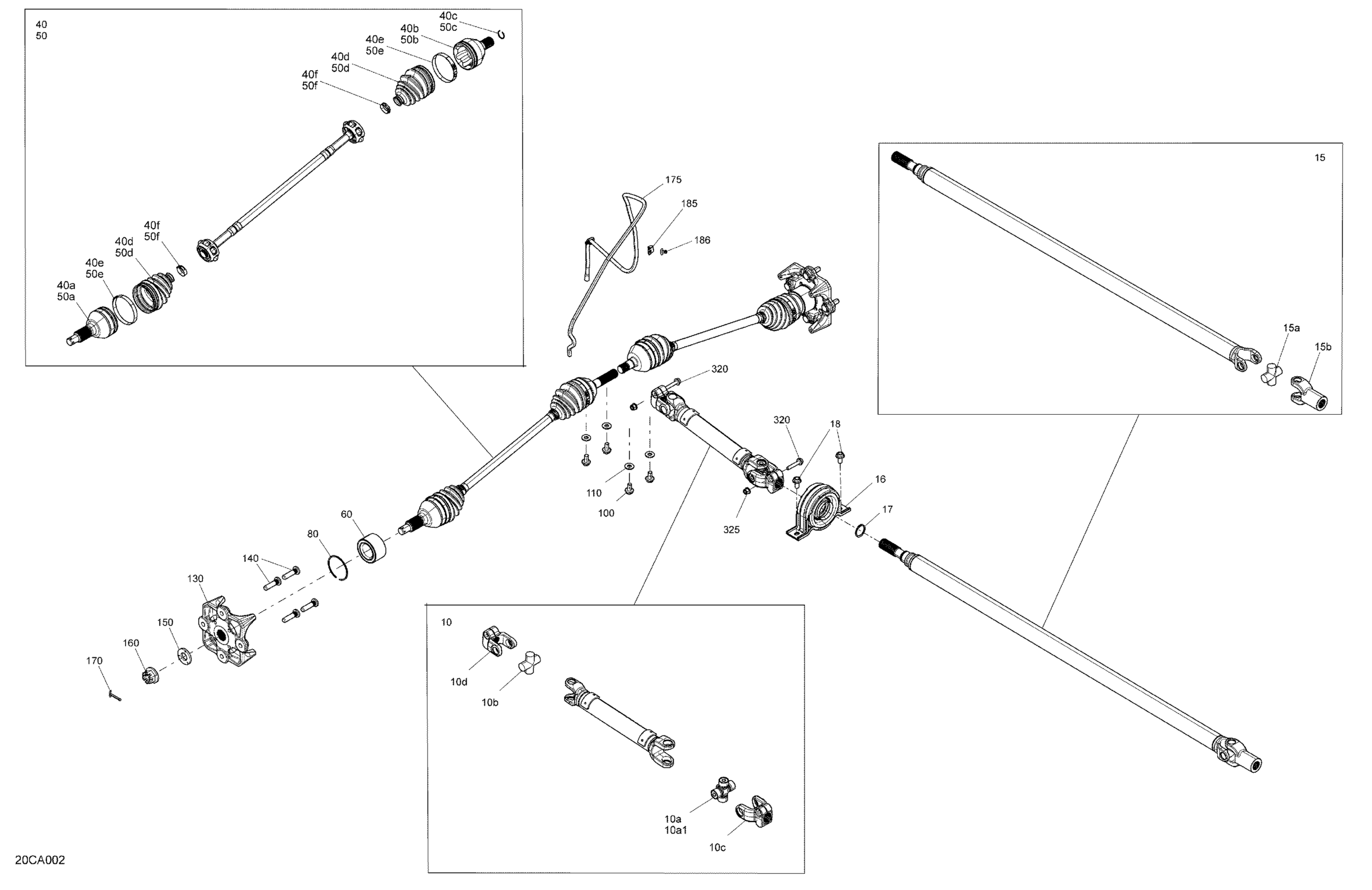

Can-Am Maverick Turbo R - DS - CE, 2021 Drive - Front Section - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y

705402948

$206.49

10a

Universal Joint Ass'y | T3

703500846

$59.49

10a1

Grease Fitting | T3

715900295

$5.24

10b

U-Joint Cross Kit | Engine 450

715900435

$78.49

10c

Fixed Yoke Joint

715900524

$59.49

10d

Yoke

715900646

$24.99

15

Drive Axle Ass'y

705403004

$248.99

15a

U-Joint Cross Kit | Engine 450

715900435

$78.49

15b

Yoke

715900401

$35.99

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$275.49

40a

CV Joint

715900452

$259.49

40b

RH Plunging Joint

715900454

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40e

Oetiker Clamp, Large

715900260

$10.33

40f

Oetiker Clamp, Small

715900261

$5.29

50

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$275.49

50a

CV Joint

715900452

$259.49

50b

LH Plunging Joint

715900453

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401354

$42.49

50e

Oetiker Clamp, Large

715900260

$10.33

50f

Oetiker Clamp, Small

715900261

$5.29

60

Ball Bearing

293350151

$71.49

80

Circlip

293370102

$3.99

100

Hex. Flange Screw M10 X 20

207502046

$2.11

100

Hex. Flange Screw M10 X 25

207502546

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502122

$116.49

140

Wheel Stud M12X1.5

250300625

$3.91

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

175

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Open Clamp

518321570

$7.69

186

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
