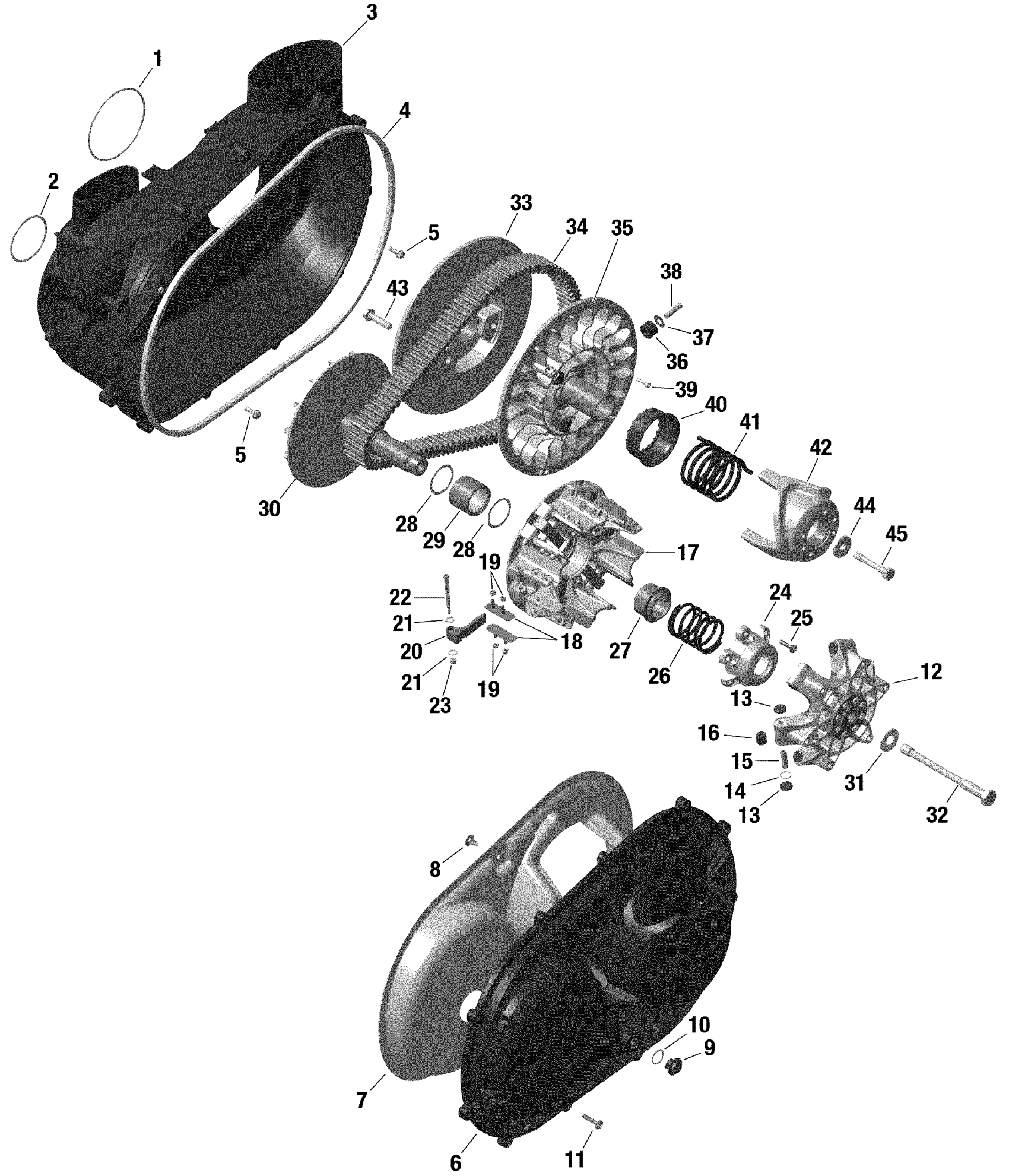

Can-Am Maverick Turbo R - DS - CE, 2021 Rotax - Transmission Diagram

#

Description
Price

1

O-Ring

420450431

$5.52

2

O-Ring

420450520

$3.98

3

CVT Air Guide

420212605

$235.35

4

Gasket

420450405

$32.28

5

Hex.Screw M6 X 20

420441311

$4.24

6

Variator Cover

420212508

$184.58

7

Insulating Mat

420897385

$41.51

8

Trim Button

420651816

$1.37

9

Cap

420441820

$11.06

10

O-Ring

420250052

$9.29

11

Torx Screw 6X30

420441575

$2.54

12

Governor Cup Ass'y

420280725

$179.97

13

Slider Shoe Set

420281296

$42.28

14

O-Ring | Turbo RR

420230457

$4.60

15

Roller Axle

417223257

$9.22

16

Roller Thrust

420229991

$18.43

17

Outer Half Ass'y | Version With Intercooler

420280461

$193.82

18

Slide Plate

420651766

$5.52

19

Lock Nut M5 | Turbo R, Turbo RR

420842032

$0.17

20

Centrifugal Lever Kit

420248658

$179.97

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Bearing Cover | Version With Intercooler

420280617

$64.58

25

Torx Flange Screw M6 X 25

420841549

$1.97

26

Compression Spring

420638117

$36.89

27

Spring Retainer

420427211

$18.43

28

Washer

420427220

$4.60

29

Needle Roller Bearing With Sleeves

420832351

$46.12

30

Inner Half Ass'y

420280596

$179.97

31

Washer

420245690

$4.60

32

Hexagonal Screw M14X 165

420841161

$27.66

33

Sliding Pulley Ass'y

420280636

$332.28

34

Drive Belt

422280652

Unavailable

35

Outer Half Pulley Ass'y

420280626

$332.28

36

Pulley Roller

417127016

$23.05

37

Thrust Washer

420227946

$2.31

38

Bearing Pin

420629192

$14.37

39

Torx Screw M4 X 20

420841531

$1.54

40

Spring Support

420427805

$11.56

41

Spring

420638126

$36.89

42

Cam 37/50 Ass'y

420280706

$212.28

43

Torx Flange Screw M10 X 40

420841711

$1.54

44

Collar Washer

420427243

$15.35

45

Hexagonal Screw M10X 61

420441990

$18.43
