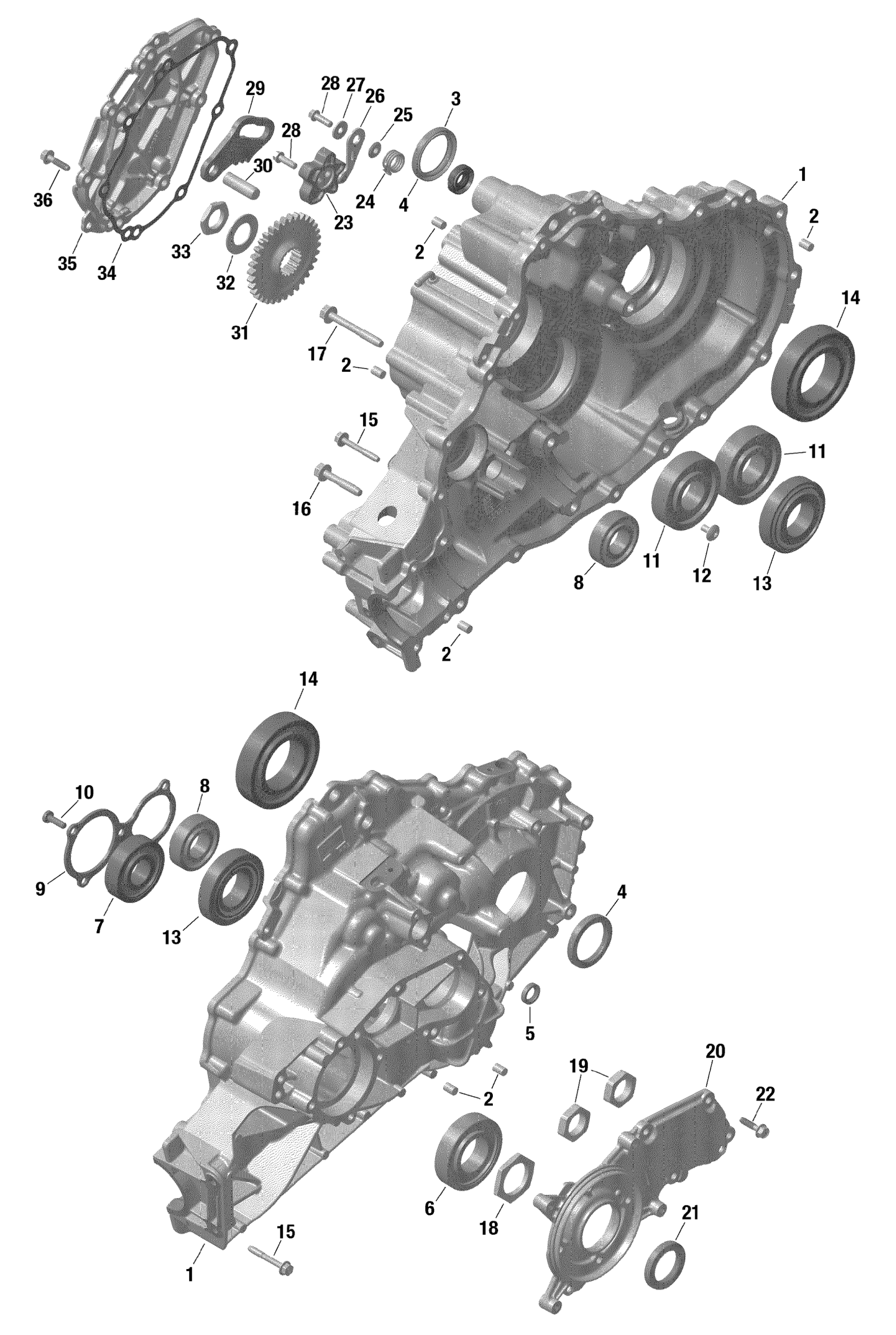

Can-Am Maverick Turbo R - DS - CE, 2021 Rotax - Gear Box 1 - 506 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Seal

420250452

$17.59

4

Oil Seal | Included in gasket set gearbox

420230137

$23.49

5

Oil Seal

420931802

$7.65

6

Ball Bearing

420632745

$25.99

7

Ball Bearing

420832098

$28.49

8

Ball Bearing 6205

420232764

$25.99

9

Retaining Plate

420651830

$15.81

10

Torx Flange Screw M6 X 20

420441386

$2.11

11

Ball Bearing

420932574

$55.99

12

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Ball Bearing

420632871

$56.99

15

Collar Screw M6 X 45

420441921

$2.19

16

Torx Flange Screw M8 X 45

420441932

$1.79

17

Torx Flange Screw M8 X 65

420441942

$2.93

18

Hex Nut M34 X 1.5

420842600

$6.67

19

Hex. Nut M24

420242012

$16.33

20

Bearing Cover

420212381

$73.99

21

Oil Seal

420950089

$19.49

22

Collar Screw M6 x 25

420441951

$2.19

23

Index Washer

420248024

$62.49

24

Spring

420239566

$2.61

25

Step Ring

420227717

$12.12

26

Index Lever Ass'y

420248528

$46.99

27

Washer

420827300

$5.24

28

Torx Flange Screw M6 X 20

420441835

$3.17

29

Parking Lock Lever

420657440

$78.99

30

Needle Pin

420249190

$14.81

31

Gear

420634938

$53.99

32

Spring Washer

420245860

$7.41

33

Nut

420242879

$7.65

34

Gasket | Included in gasket set gearbox

420450410

$12.16

35

Gear Box Cover

420212391

$56.99

36

Collar Screw M6 x 25

420441951

$2.19
