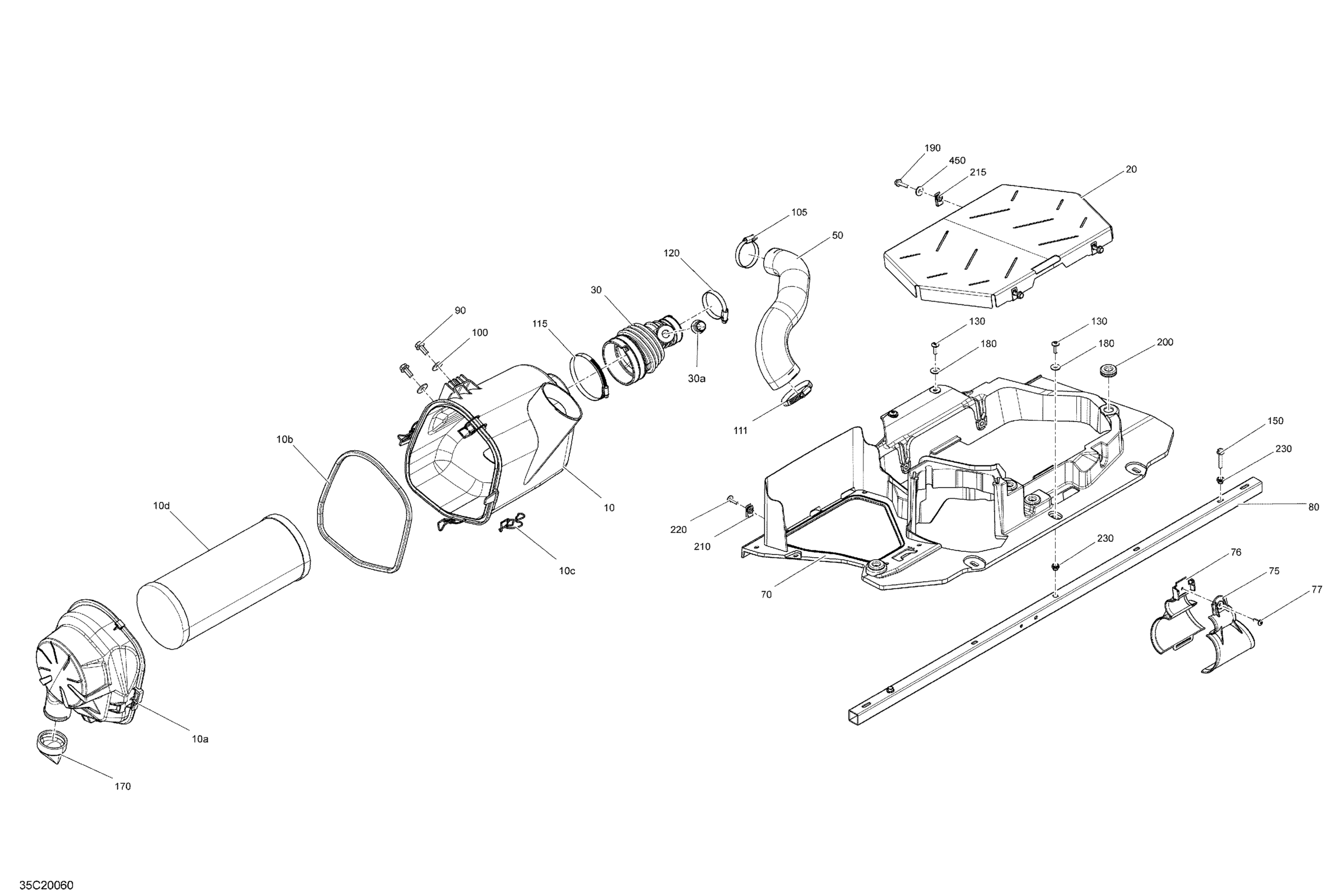

Can-Am Maverick Turbo - STD - 2020 Air Intake Diagram

#

Description
Price

10

Silencer Intake Ass'y | Includes 10 to 10f

707800859

$119.97

10a

Cover

707800852

$87.66

10b

Gasket Intake Silencer

707800853

$23.05

10c

Clip

293730086

$8.45

10d

Air Filter

715900422

$50.34

20

Protection Grille

707800889

$119.97

30

Hose | Includes 30 to 30b

707800856

$46.12

30a

Breather Valve

273000234

$10.63

50

Air Intake

707800746

$69.97

70

Radiator Support

707801049

$230.74

75

Hose Support

707900756

$5.52

76

Hose Support

707900762

$5.52

77

Torx Screw K50 X 16

250000720

$1.39

80

Square Tube

707801133

$50.74

90

Hex. Flange Screw M8 X 20

207682044

$0.92

100

Flat Washer 8 mm

234082410

$1.11

105

Mounting Clamp

293650303

$3.68

111

Mounting Clamp

293650302

$3.79

115

Norma Clamp

514052924

$10.58

120

Mounting Clamp

293650303

$3.68

130

Torx Screw M6 X 20

250000722

$1.34

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

170

Duct Bill Valve

715003114

$12.91

180

Stainless Steel Flat Washer

234062670

$1.74

190

Hex. Flange Screw M6 X 25

207562544

$1.39

200

Grommet

517303756

$3.15

210

Panel Nut M6 X 1.0

250100198

$1.73

215

Panel Nut M6 X 1.0

250100198

$1.73

220

Torx Screw M6 X 20

250000722

$1.34

230

Insert Half Hex Body M6 x 1.0

250100199

$2.54

450

Flat Washer 6 mm

234062410

$0.64
