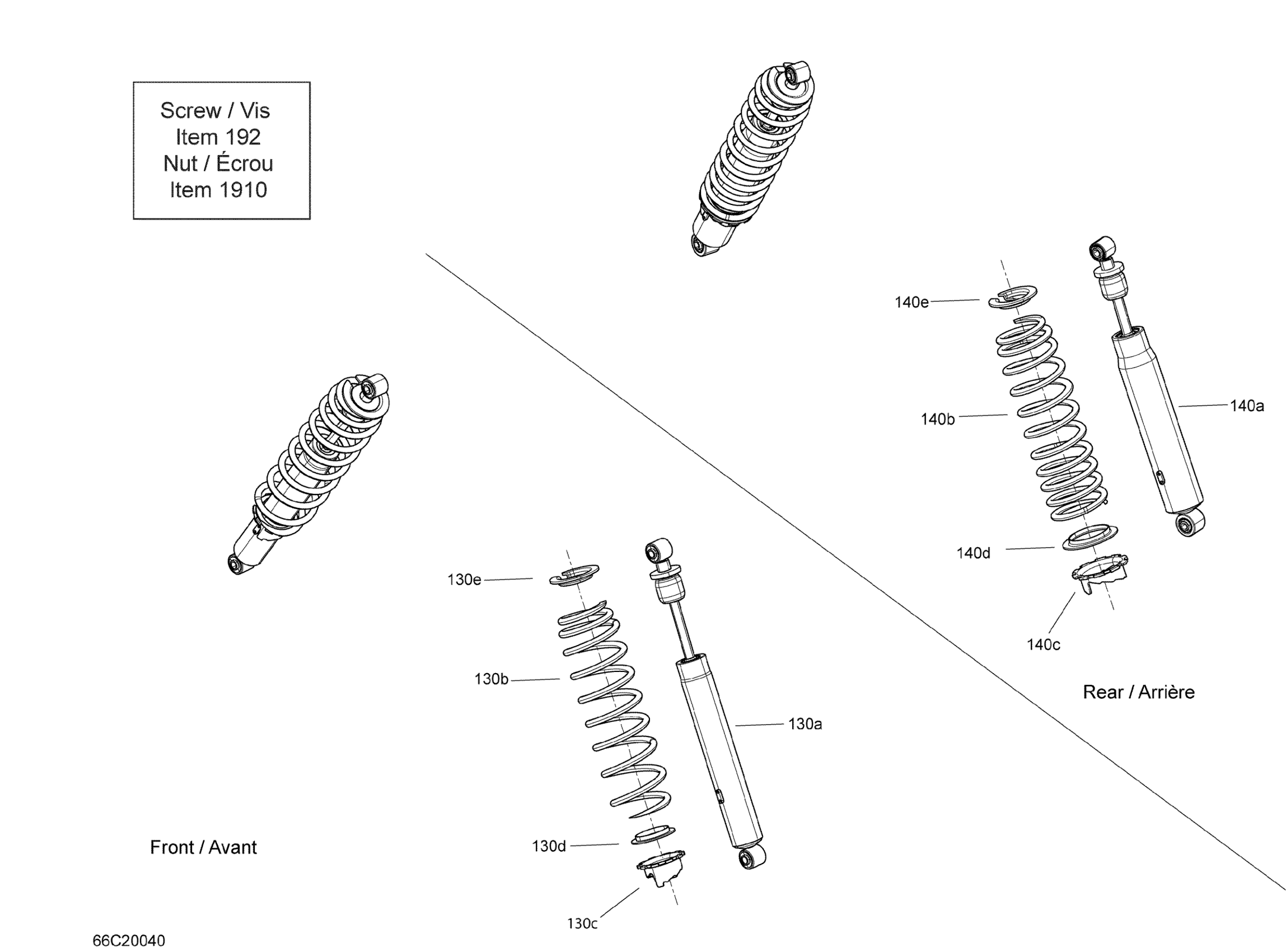

Can-Am Maverick Trail 800 - 2020 Shocks - DPS Diagram

Description

Price

130a

Front Shock

706202835

$186.12

130b

Can-Am Red Front Spring | Red Model

706203173

$119.97

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130e

Spring Cup

706001894

$14.75

140a

Rear Shock

706002719

$153.05

140b

Can-Am Red Rear Spring | Red Model

706003007

$119.97

140c

Adjustment Ring

706000910

$14.37

140d

Protector Ring | STD, XT

706000911

$7.60

140e

Spring Cup

706001894

$14.75

192

Flange Screw M12 X 60

250000857

$6.08

1910

Elastic Flange Nut M12

233221466

$2.15
