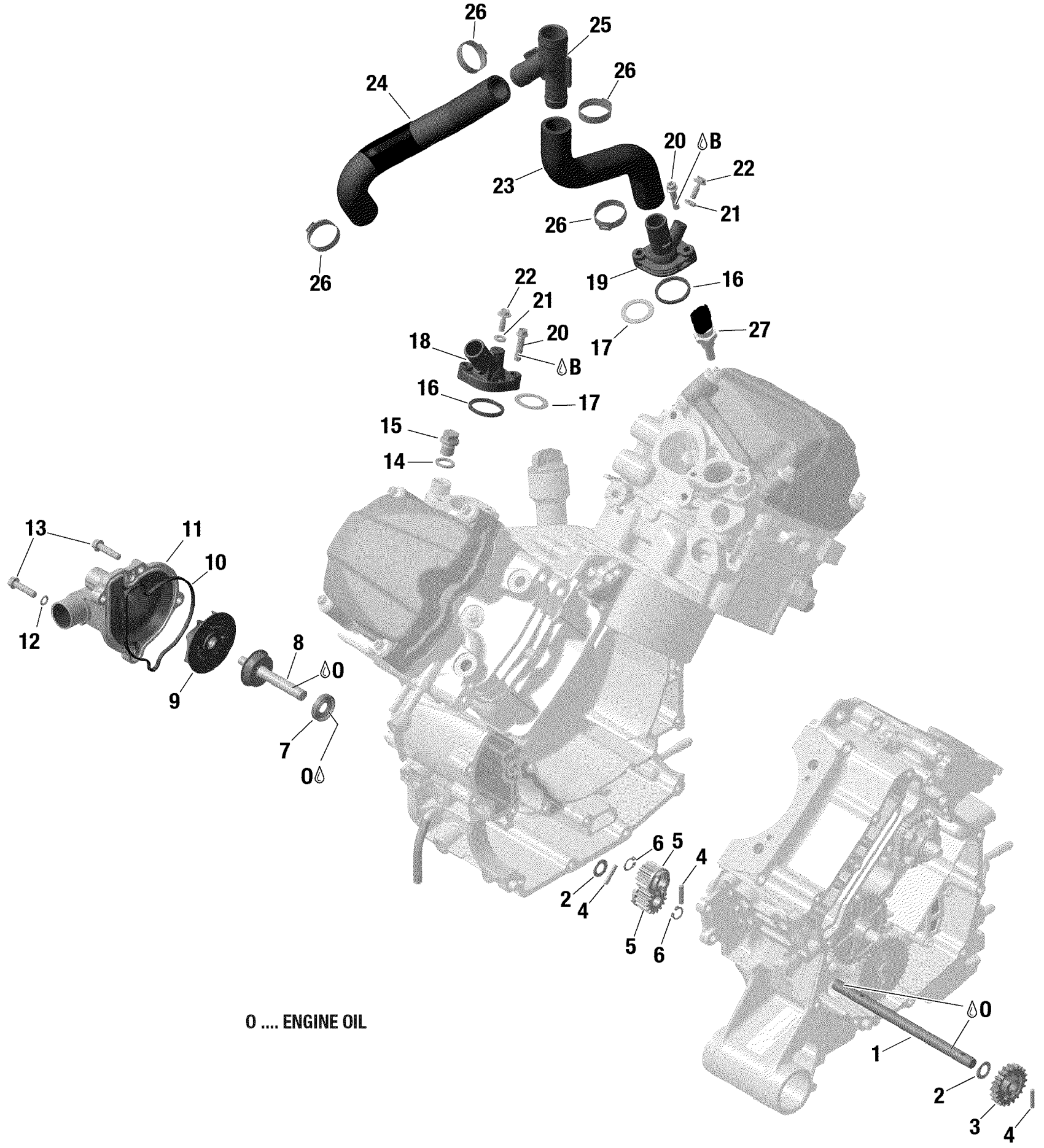

Can-Am Maverick Trail 800 - 2020 Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$36.89

2

Thrust Washer

420827590

$3.86

3

Water Pump Gear

420434330

$11.09

4

Needle Pin

420232420

$3.86

5

Pump Gear, 15 Teeth

420234627

$11.09

6

Circlip

504152282

$3.11

7

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$73.82

8

Rotary Seal

420650371

$35.72

9

Water Impeller

420822750

$18.43

10

Kit Water Pump Housing

703501124

$50.74

11

Gasket

420651190

$8.34

12

Seal Washer

420230415

$1.77

13

Torx Flange Screw M6 X 25

420641238

$2.68

14

Copper Washer

420250640

$0.81

15

Plug screw

420841924

$13.58

16>17

Spacer Ass'y | Includes 40 to 41

420927837

$7.23

17

Thermostat Gasket

420650300

$8.34

18

Thermostat Cover

420222696

$3.09

19

Thermostat Cover

420222697

$8.29

20

Torx Flange Screw M6 X 25

420641238

$2.68

21

Gasket Ring

420650255

$4.00

22

Screw M5 X 16

420441621

$3.11

23

Rear Head Hose

420822696

$16.89

24

Front Head Hose

420822701

$20.74

25

Y-Fitting

709200414

Unavailable

26

Clamp

420251578

$7.05

27

Temperature Sensor

278002895

$31.82
