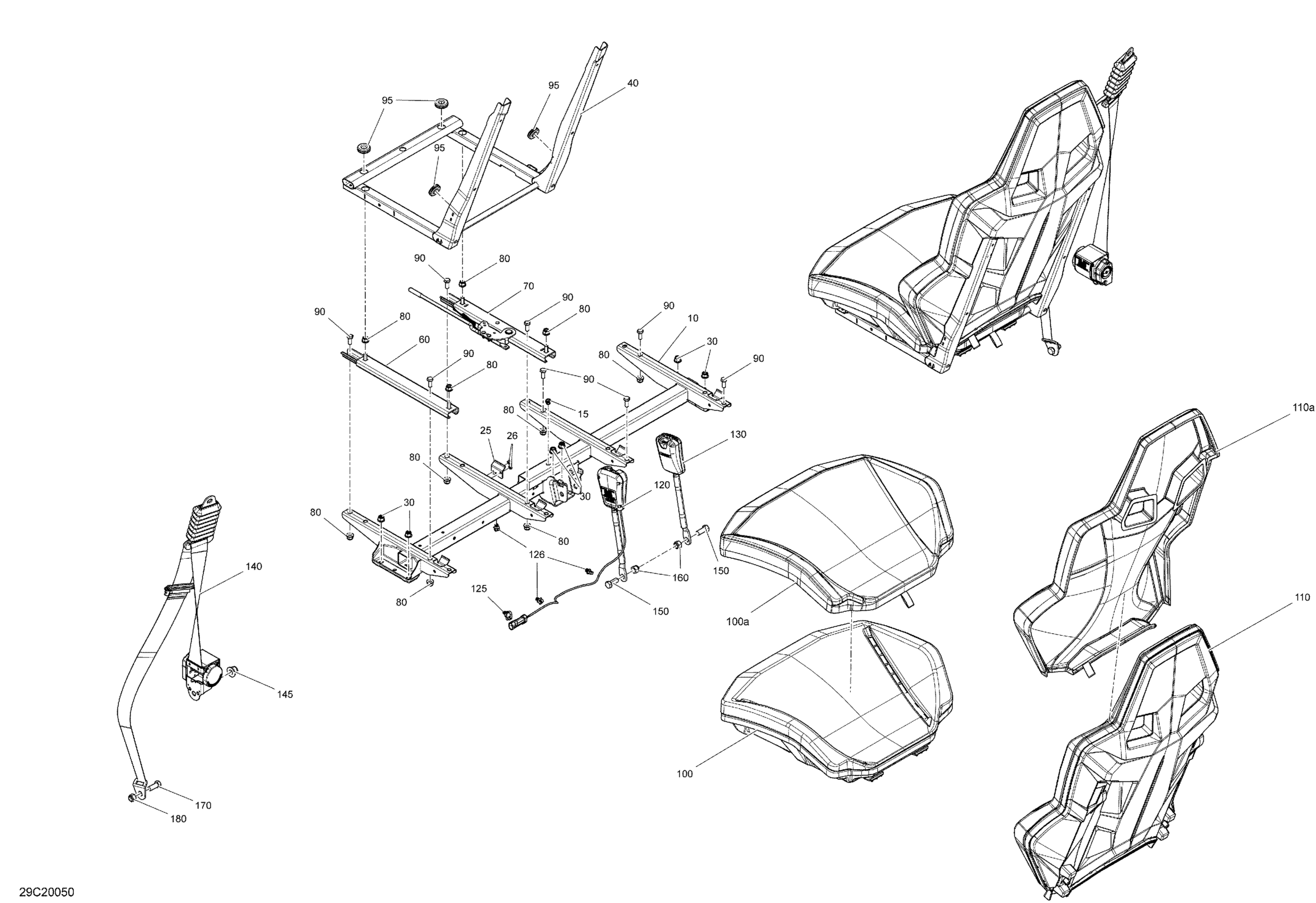

Can-Am Maverick Trail 800 - 2020 Seat Diagram

#

Description
Price

10

Seat Member

708002421

$124.99

15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

25

Seat Stopper

708003672

$2.59

26

Pop Rivet 3/16"

390402200

$0.35

30

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Seat Frame

708002423

$329.99

60

LH Rail

708000848

$53.99

70

RH Rail

708002711

$35.99

80

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Screw M8 X 20

207182044

$0.74

95

Grommet

517303756

$4.09

100

Cushion Ass'y

708002839

$249.99

100a

Not Available As Spare Part - Friction Washer

Unavailable

100

Cushion Ass'y

708002847

$249.99

100a

Not Available As Spare Part - Friction Washer

Unavailable

110

Backrest Ass'y

708002430

$349.99

110a

Not Available As Spare Part - Friction Washer

Unavailable

110

Backrest Ass'y

708002859

$349.99

110a

Not Available As Spare Part - Friction Washer

Unavailable

120

Driver Buckle

708002331

$70.99

125

Christmas Tree Tie-Rap

710005237

$7.16

126

Dart Tie Rap 200MM

710003168

$7.09

130

Passenger Buckle

708002329

$67.99

140

Safety Belt

708003378

$238.49

145

Elastic Flange Nut M12

233221416

$2.85

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

160

Lock Nut Nylon 7/16

250100183

$2.00

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

180

Lock Nut Nylon 7/16

250100183

$2.00
