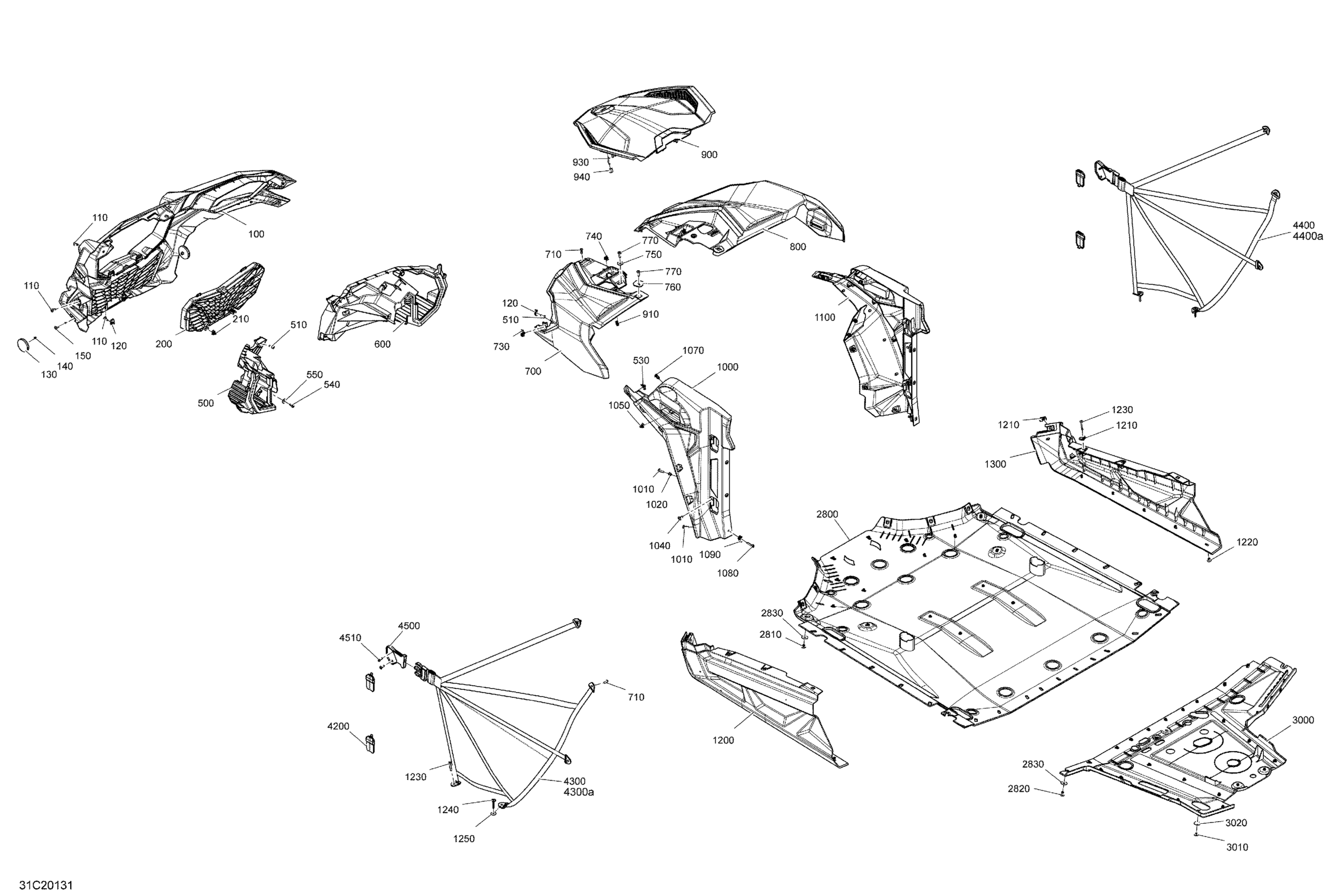

Can-Am Maverick Trail 800 - 2020 Body - Front Section - Red Diagram

#

Description
Price

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector | Except Europe Model

705011222

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Red, LH Hood Ass'y | DPS, Red Model

705012411

$309.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Red, RH Hood Ass'y | DPS, Red Model

705012412

$309.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Rocker Panel

705011331

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150101

$2.09

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Front Rocker Panel

705016939

$77.49

2800

Front Skid Plate

705014696

$191.49

2810

Pop Rivet 3/16”

293150087

$0.93

2820

Pop Rivet 3/16”

293150087

$0.93

2830

Washer

250200191

$2.11

3000

Rear Skid Plate

705014697

$98.49

3010

Pop Rivet 3/16”

293150087

$0.93

3020

Washer

250200191

$2.11

4200

Hinge Cover

705012703

$15.99

4300

LH Front Safety Net | Includes 4300 to 4300a

707900604

$219.99

4300a

Upper Link

707900049

$43.99

4400

RH Front Safety Net | Includes 4400 to 4400a

707900605

$219.99

4400a

Upper Link

707900049

$43.99

4500

Safety Net Link

707900592

$4.14

4510

Torx Screw K50 X 16

250000720

$1.69
