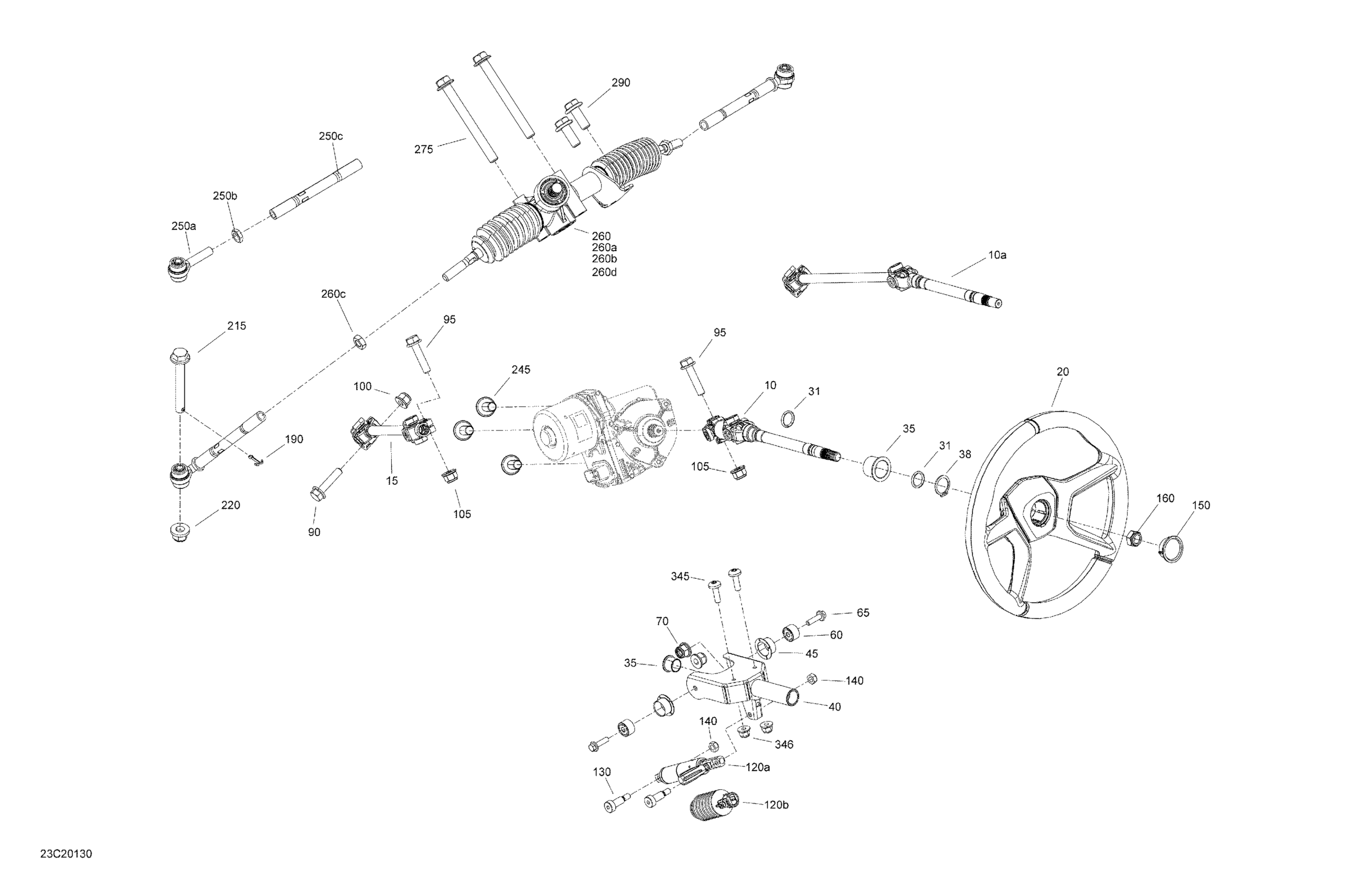

Can-Am Maverick Trail 800 - 2020 Steering Diagram

#

Description
Price

10

Steering Column Ass'y This part replaces 709402473.

709402618

$175.35

10a

Steering Column Ass'y

709402616

$189.20

15

Lower DPS Shaft Ass'y

709402650

$175.35

20

Steering Wheel

709401966

$507.66

31

O-Ring

293300144

$3.98

35

Steering Bushing

709402725

$3.17

38

Circlip

293370110

$2.31

40

Steering Support

709401602

$78.43

45

Bushing

709401603

$6.57

60

Bushing

709401604

$4.52

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

70

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Flange Screw M8 X 35

250001021

$3.61

95

Hex. Flange Screw M8 X 35

250001021

$3.61

100

Hex. Elastic Flange Nut M8

233281416

$1.25

105

Hex. Elastic Flange Nut M8

233281416

$1.25

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

$13.62

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561414

$1.55

150

Steering Cap

709401514

$15.35

160

Elastic Lock Nut M16

232511414

$1.64

190

Cotter Pin

211400017

$0.25

215

Screw Hex Cap M10 X 75

250000814

$3.95

220

Hex. Flange Elastic Nut M10

233201436

$1.74

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

250a

Ball Joint

709401991

$50.34

250b

Steering Rod Nut

715900238

$2.31

250c

Connection Rod

709401990

$20.74

260

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$452.28

260a

Boot Kit, Pinion Side

715900235

$55.35

260b

Boot Kit, Tube Side

715900236

$55.35

260c

Steering Rod Nut

715900238

$2.31

260d

Tie Rod

715900838

$69.20

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

290

Hex. Flange Screw M10 X 25

207502546

$1.74

300

Power Steering Ass'y

709402727

Unavailable

345

Torx Screw M6 X 20

250000712

$1.74

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
