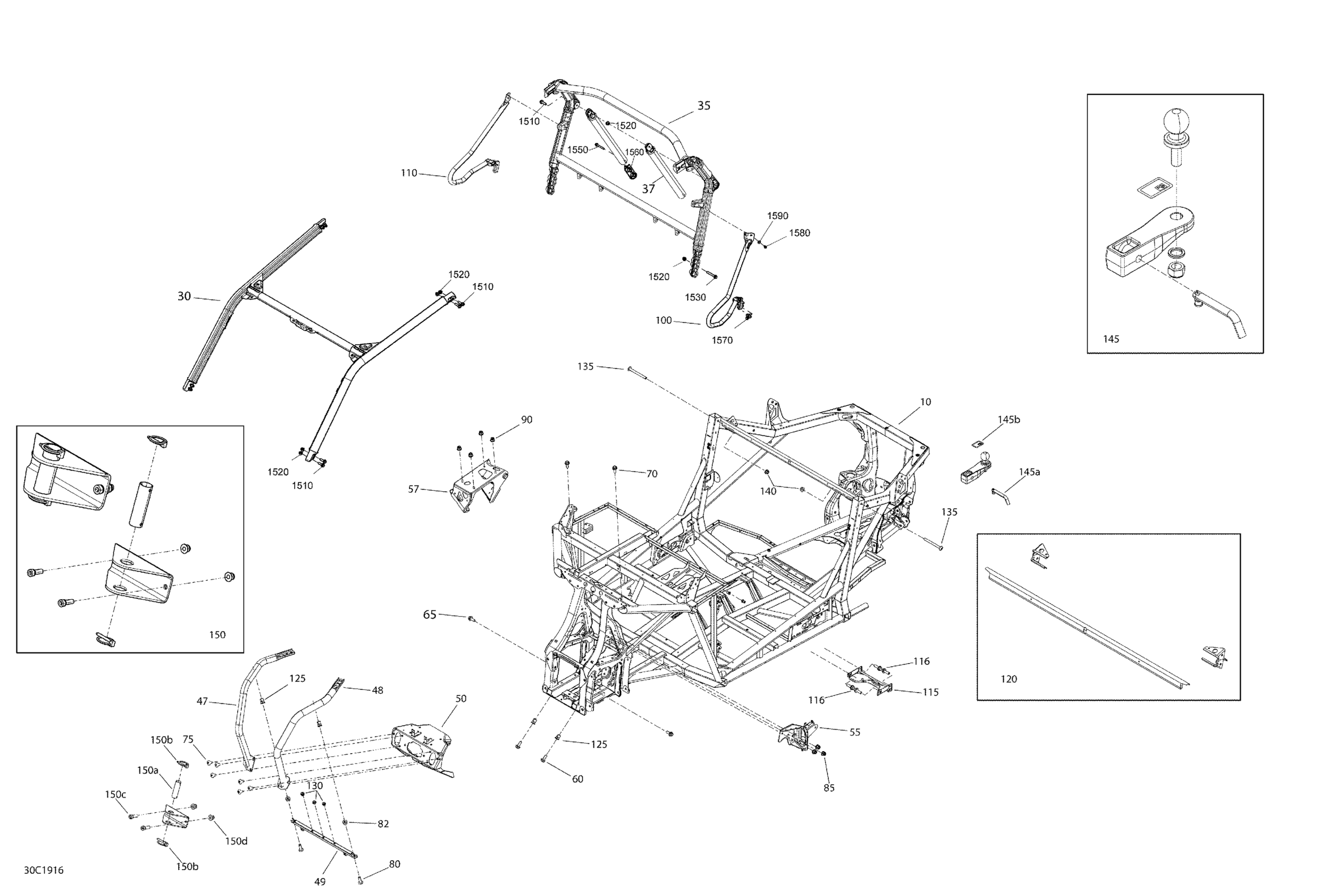

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Frame Diagram

#

Description
Price

10

Frame Ass'y

715008568

$2,969.99

30

Deep Black, Front Cage Kit

715009358

$609.99

35

Deep Black, Rear Cage Kit

715009370

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

47

LH Front Bumper

705206303

$116.49

48

RH Front Bumper

705206308

$116.49

49

Cross Member

705206313

$39.99

50

Deep Black, Front Bumper

705209043

$457.49

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

75

Torx Truss Screw M8 X 16

250000746

$3.38

80

Hex Torx Truss M8 X30

250000745

$3.17

82

Bushing

705207229

$14.49

85

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

LH Protector Tube

705206747

$46.49

110

RH Protector Tube

705206752

$46.49

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

140

Hex. Flange Nut M8

233181414

$1.15

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

145a

Hitch Pin

705204490

$52.99

145b

Hitch Approval Decal

704906897

$19.99

150

Front Coupling Device Ass'y | STD Package

705206240

$114.99

150a

Pin

605456511

Unavailable

150b

Pin

605456518

Unavailable

150c

Socket Screw M10 x 30 | XT

205003044

$3.17

150d

Hex. Flange Elastic Nut M10

233201414

$1.58

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1550

Hex. Flange Screw M8 x 60

207686044

$3.07

1560

Sleeve

705210648

$9.90

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1580

Torx Head Screw M6 X 16

250000717

$2.11

1590

Stainless Steel Flat Washer

234062670

$2.11
