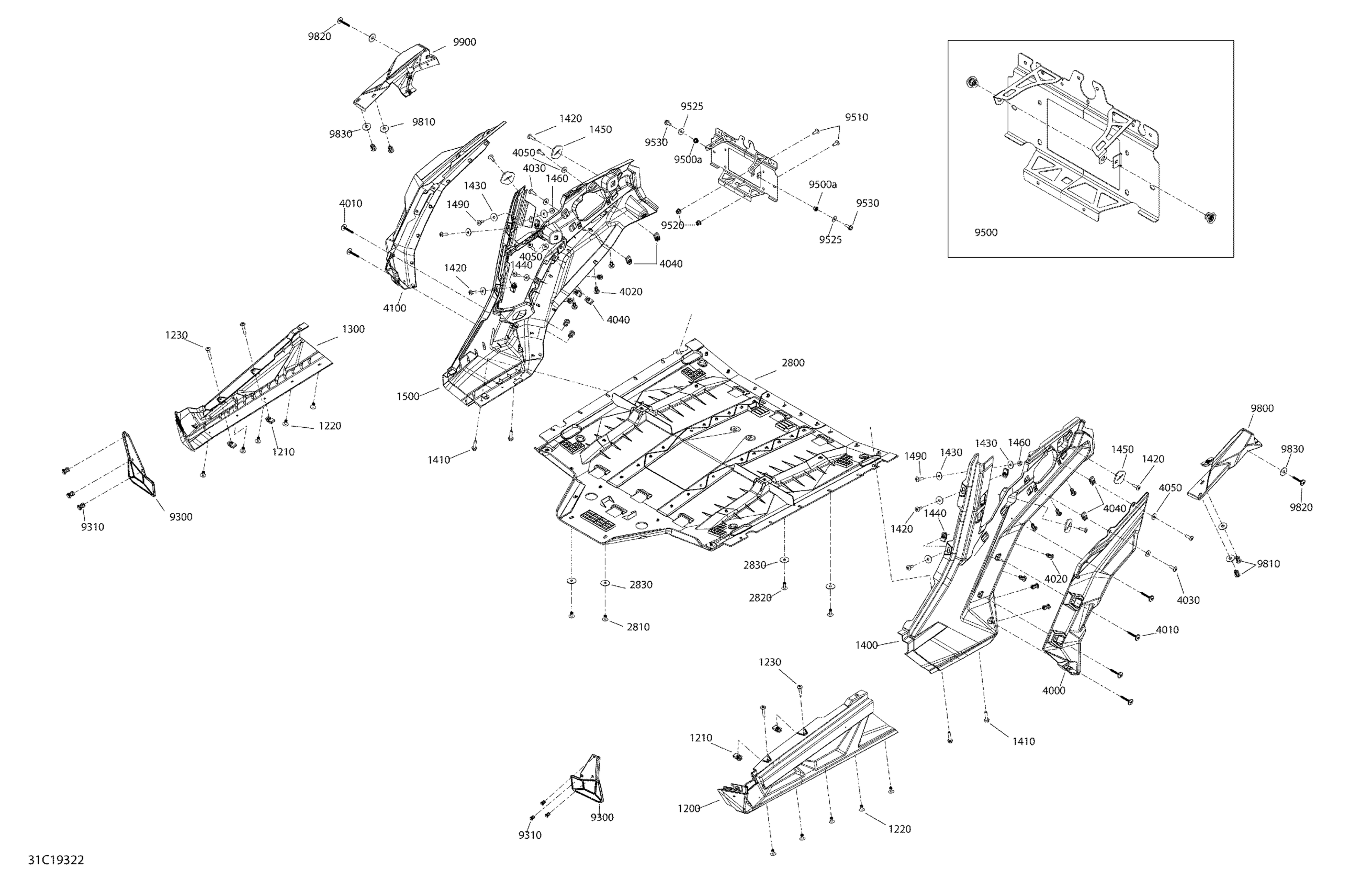

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Body Maverick Trail - 800 - White - Middle Section Diagram

LH Rocker Panel

705011331

$79.99

Panel Nut M6 X 1.0

250100198

$2.11

Pop Rivet 3/16”

293150108

$1.19

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

RH Front Rocker Panel

705016939

$77.49

LH Rear Panel

705011335

$204.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

Hex. Elastic Flange Nut M6

233161464

$1.01

Torx Screw M6 X 20

250000722

$1.68

RH Rear Panel

705011336

$204.99

Kit Plate_Skid F

703501097

$169.49

Pop Rivet 3/16”

293150087

$0.93

Pop Rivet 3/16”

293150087

$0.93

Washer

224060251

$0.58

LH Rear Mud Guard

705012097

$56.99

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

RH Rear 60" Mud Guard Extension

705012098

$56.99

Front Mud Flap Model T

705012793

$56.99

Tuflok Plastic Rivet

293150230

$1.47

Licence Plate Support Ass'y | Includes 9500 to 9500a

705013731

$114.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Rear Flasher Support Model T

705012799

$58.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Stainless Steel Flat Washer

234082670

$2.11

RH Rear Flasher Support Model T

705012800

$30.49

Torx Head Screw M6 X 16

250000717

$2.11
