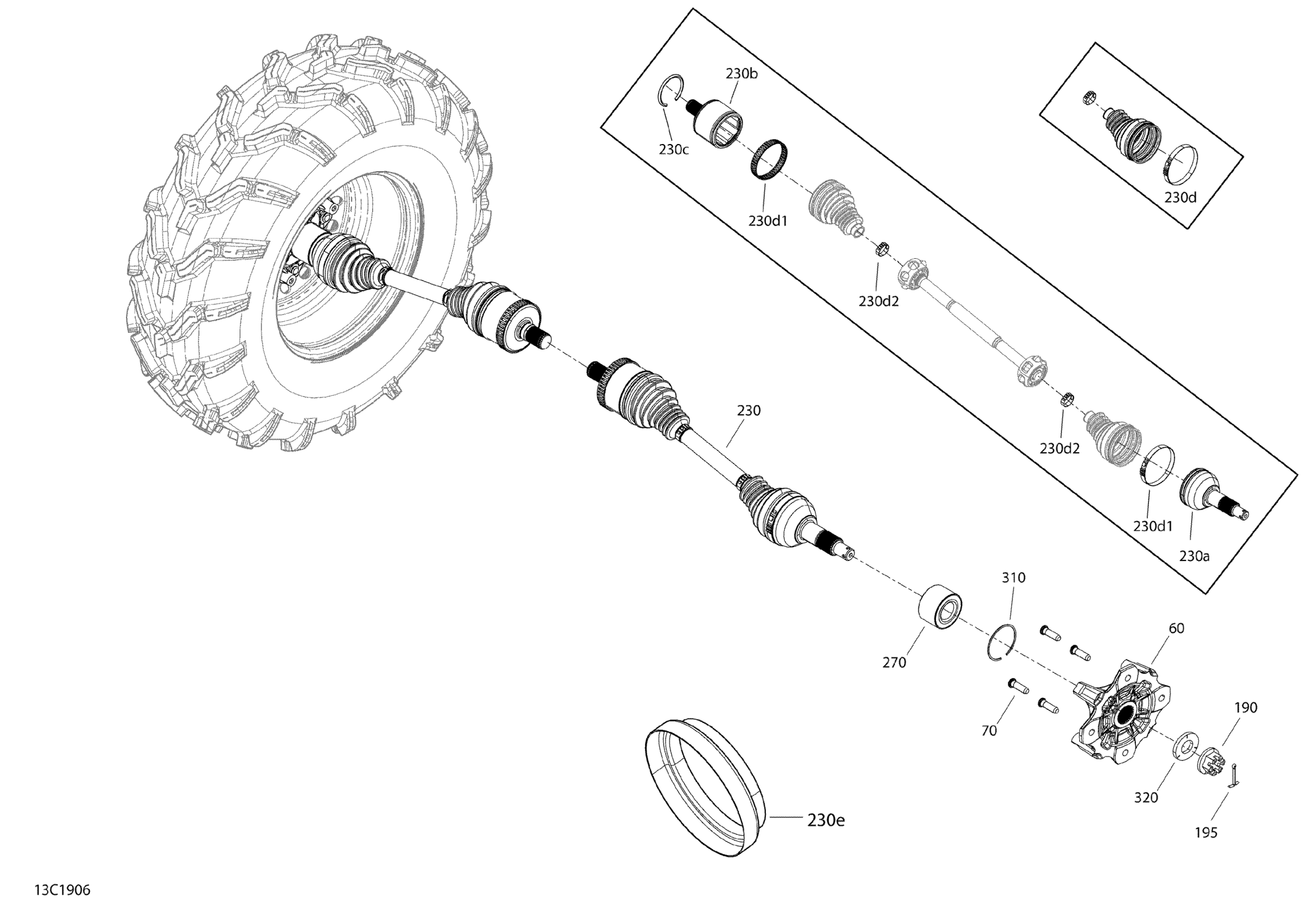

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Rear Drive Diagram

Description

Price

Wheel Hub

705502338

$108.18

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

230

Rear - Premium CV Axle | Includes 230 to 230d2

705502541

$226.84

230

Rear - Premium CV Axle | Includes 230 to 230f

705502755

$226.84

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$256.69

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230d1

Oetiker Clamp, 82.1 mm

715900241

$9.00

230d2

Oetiker Clamp, 27.3 mm

715900242

$9.00

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63
