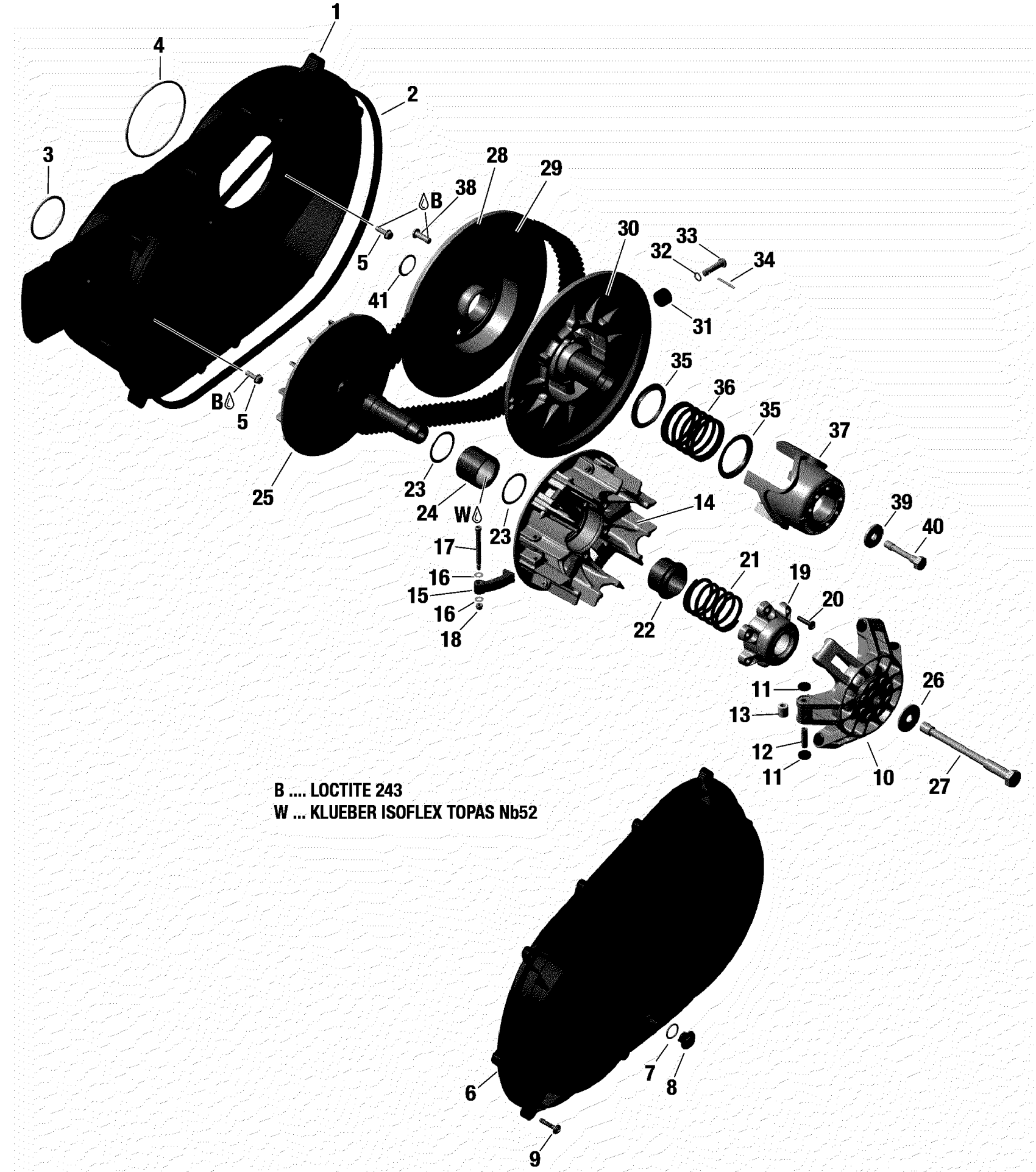

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Transmission Diagram

#

Description
Price

1

CVT Air Guide

420212604

$202.21

2

Gasket

420450400

$29.82

3

O-Ring

420430408

$4.87

4

O-Ring

420450431

$4.87

5

Hex.Screw M6 X 20

420441311

$4.87

6

Variator Cover

420212500

$184.30

7

O-Ring

420250050

$8.93

8

Cap

420441820

$10.55

9

Torx Screw 6X30

420441575

$2.91

10

Governor Cup Ass'y

420280746

$170.12

11

Slider Shoe Set

420281296

$41.01

12

Roller Axle

417223257

$6.37

13

Roller

417223767

$7.15

14

Outer Half Ass'y

420280605

$188.03

15>18

Centrifugal Lever Kit

420248664

$209.67

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Bearing Cover Ass'y

420280615

$60.42

20

Torx Flange Screw M6 X 25

420841549

$1.91

21

Compression Spring

420638119

$32.81

22

Spring Seat

420427210

$36.34

23

Washer

420427220

$4.49

24

Needle Roller Bearing With Sleeves

420832351

$44.75

25

Inner Half Ass'y

420280596

$170.12

26

Washer

420245690

$4.49

27

Hexagonal Screw M14X 165

420841161

$26.84

28

Inner Half Ass'y

420280635

$159.67

29

Drive Belt

422280656

$156.69

30

Outer Half Ass'y

420280627

$330.57

31

Pulley Roller

417127016

$22.36

32

Lock Washer 8 mm

250200009

$2.00

33

Pivot Stud

417127294

$13.18

34

Dowel Pin

420629200

$1.97

35

Swivel Abutment

417127116

$7.82

36

Spring

417127061

$44.00

37

Cam

420280647

$172.36

38

Binding Head Screw M8X25

420441981

$15.64

39

Collar Washer

420427243

$14.91

40

Hexagonal Screw M10X 61

420441990

$17.88

41

Distance Ring

420647263

$24.60
