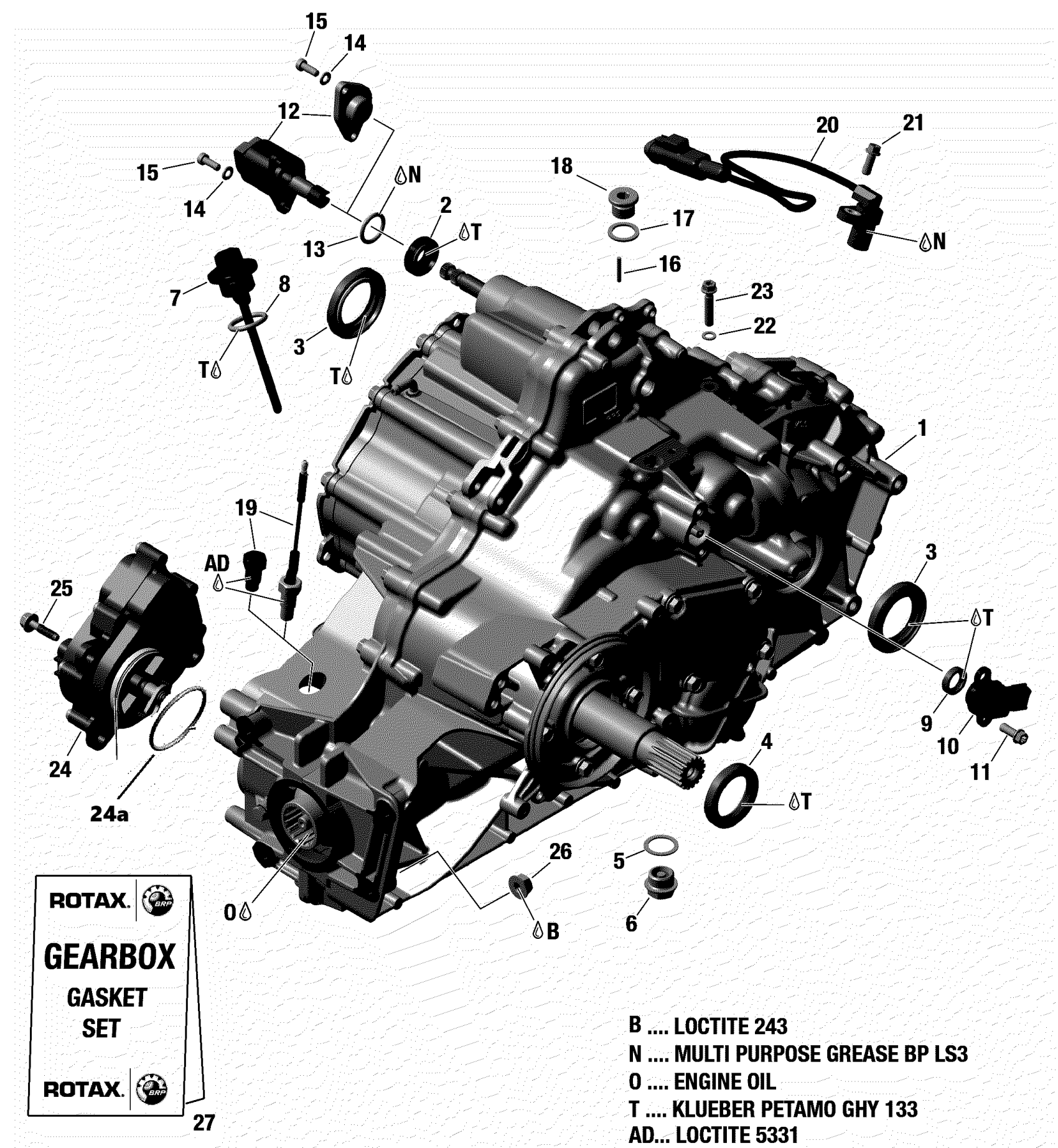

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Gear Box And Components - 420686757 - DPS Diagram

Description

Price

1>23

Gearbox

420686889

$3,374.99

Oil Seal

420250452

$17.66

Oil Seal

420831185

$17.66

Oil Seal

420950089

$18.43

Crush Washer

420552280

$2.99

Drain Plug M18 X 1.5

420840278

$23.05

Oil Dipstick

420256806

$16.89

O-Ring

420631640

$2.06

Oil Seal

420931802

$5.29

Angle Rotation Sensor

420666850

$193.82

Torx Flange Screw M6 X 16

420440162

$3.11

Actuator Ass'y 4 pins

715900613

$299.97

O-Ring | Included in gasket set gearbox

420450450

$1.46

Washer 5.3

420927574

$1.85

Allen Screw M5 X 14

420240150

$2.31

Needle Pin

420932840

$3.09

O-Ring

420430622

$3.61

Plug Screw M16 X 1.5

420240234

$13.58

Plug Screw M10X10

420241905

$2.75

Camshft Position Sensor Ass'y

420265727

$104.49

Torx Flange Screw M6 X 16

420440162

$3.11

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Actuator Ass'y 4 pins

715900613

$299.97

24a

O-Ring

293300117

$4.28

Collar Screw M6 x 25

420441951

$1.83

Hex. Nut M8

420842619

$2.75

Gearbox Gasket Set

420686603

$96.89
