Description

Price

1

Counter Shaft

420637507

$370.49

2>17

Main Shaft | Includes no. 2-11

420637786

$939.99

3

Shifting Sleeve

420657404

$98.99

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Gear Pinion 65T

420435903

Unavailable

6

Needle Cage

420432139

$30.49

7

Thrust Washer

420427082

$20.99

8

Chain

420898532

$98.49

9

Intermediate Shaft

420637676

$338.99

10>11

Shifting Drum | Models Built Sept 2016 And Up

420657546

$309.99

11

Needle Pin

420932780

$7.41

12

Fork Spindle

420657432

$38.99

13

Shifting Block

420657476

$25.99

14

Spring

420638075

$3.98

15

Gearshift Fork Ass'y

420657539

$219.99

16

Spring

420638070

Unavailable

17

Spring Seat

420427140

$2.59

18

Retaining Ring

420945470

$5.50

19

Gearshift Fork Ass'y

420657559

$164.99

20

Spring

420638075

$3.98

21

Shift Shaft With Gear

420637569

$119.99

22

Drive Gear 48T

420934085

$469.99

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Shifting Sleeve

420257674

$129.99

27

Shifting Fork Ass'y

420258525

$16.49

28

Needle Pin

420832650

$7.73

29

Hex Screw M6 X 8

420841581

$1.15

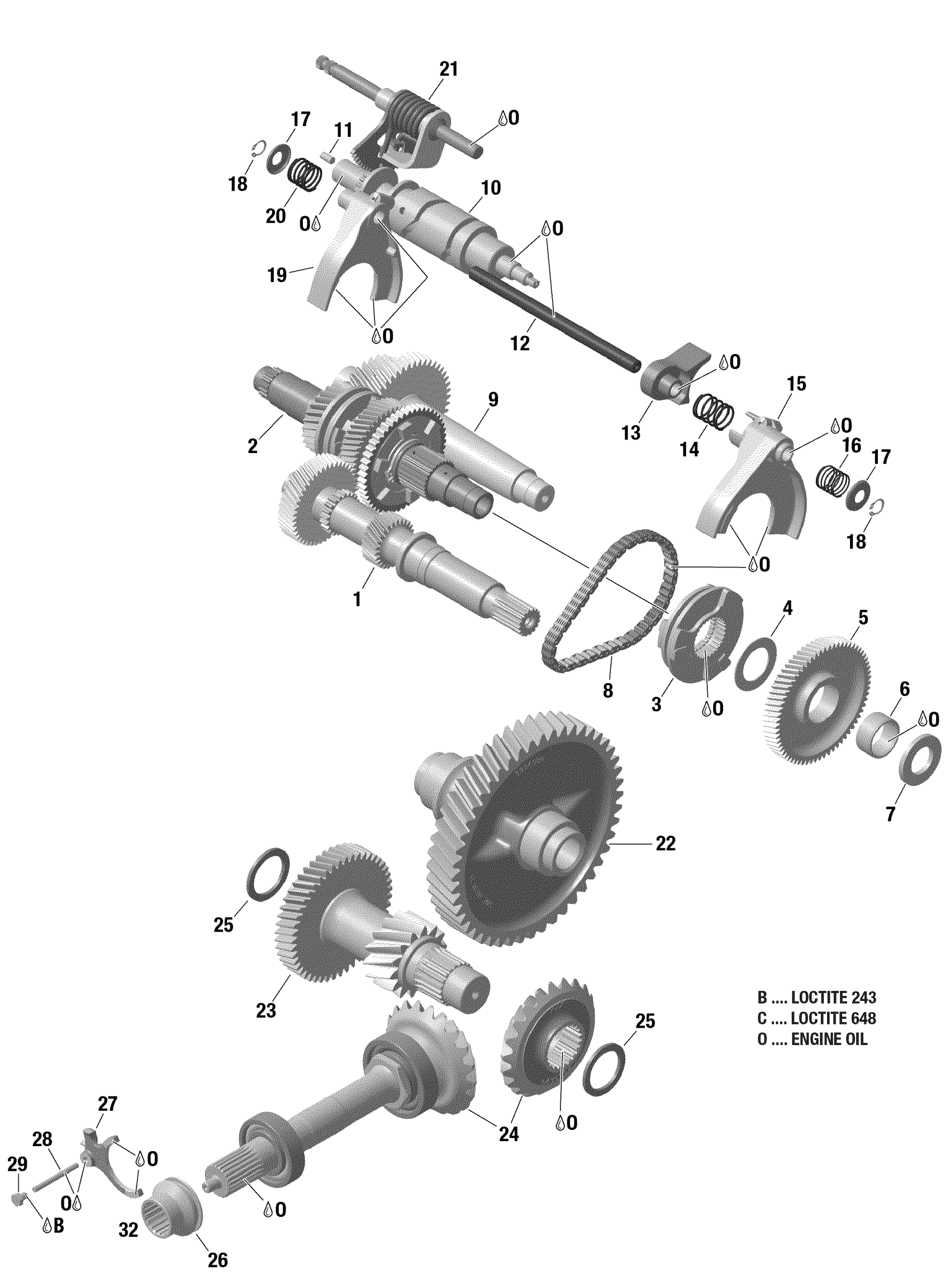

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Gear Box 2 - 420686758 - BASE Diagram

Counter Shaft

Main Shaft | Includes no. 2-11

Shifting Sleeve

Not Available As Spare Part - Friction Washer

Gear Pinion 65T

Needle Cage

Thrust Washer

Chain

Intermediate Shaft

Shifting Drum | Models Built Sept 2016 And Up

Needle Pin

Fork Spindle

Shifting Block

Spring

Gearshift Fork Ass'y

Spring

Spring Seat

Retaining Ring

Gearshift Fork Ass'y

Spring

Shift Shaft With Gear

Drive Gear 48T

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Shifting Sleeve

Shifting Fork Ass'y

Needle Pin

Hex Screw M6 X 8
