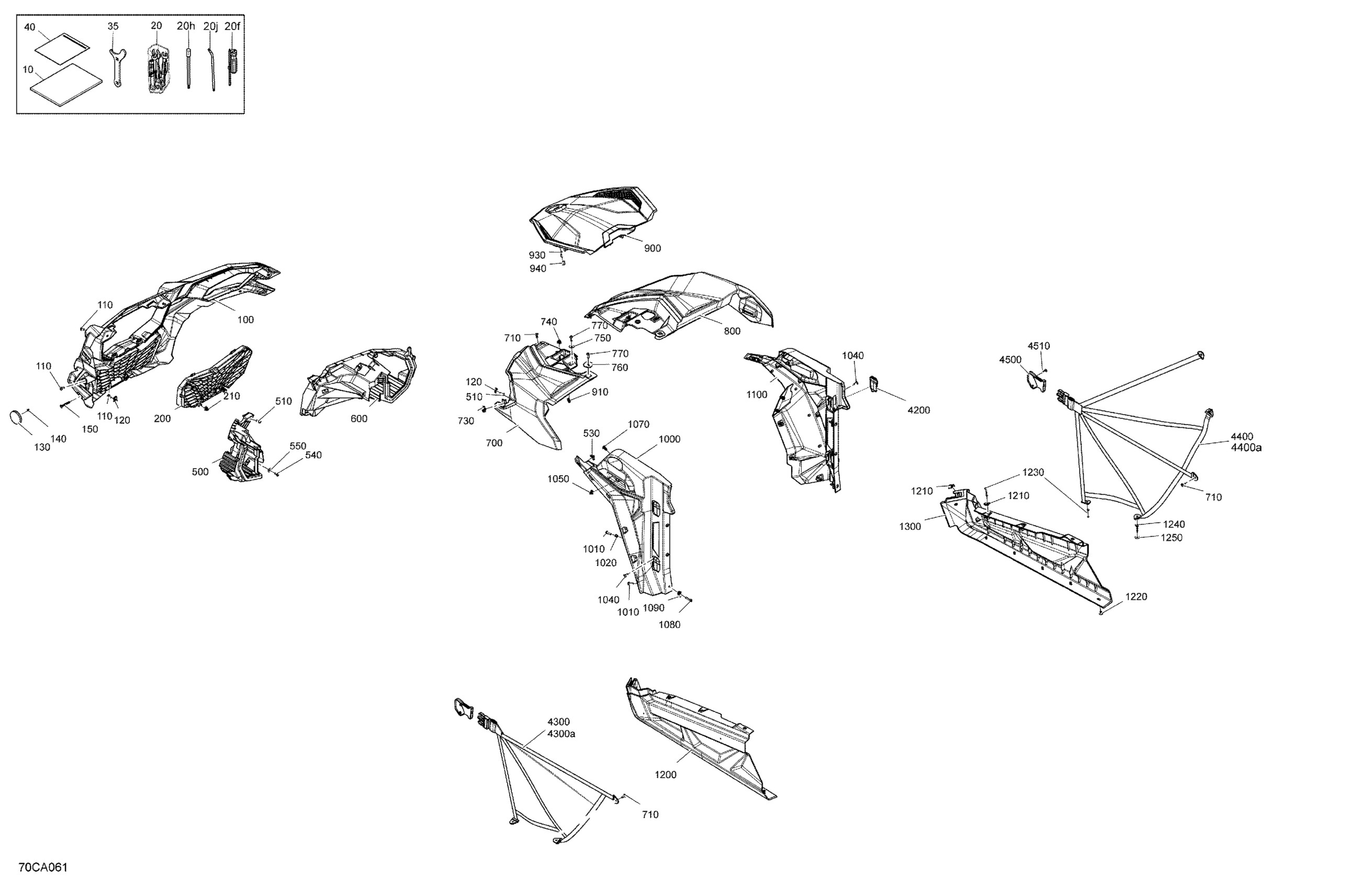

Can-Am Maverick Trail 800 - BASE_DPS - 2021 Body - Front Section Diagram

#

Description
Price

10

English Operator Guide

219002126

Unavailable

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20f

Screw Driver

529000021

$3.29

20h

Driven Open Tool

529000088

$17.99

20j

Torx Key T30

708200340

$1.28

35

Adjustment Wrench

529000057

$4.29

40

Waranty Registration Form

219400038

Unavailable

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector | Except Europe Model

705011222

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Can-Am Red, LH Front Fender

705015448

$309.99

700

Timeless Black, LH Front Fender

705019683

$204.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Can-Am Red, RH Front Fender

705015449

$309.99

800

Timeless Black, RH Front Fender

705015581

$204.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Rocker Panel

705011331

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150101

$2.09

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Front Rocker Panel

705016939

$77.49

4200

Hinge Cover

705012703

$15.99

4300

LH Front Safety Net | Includes 4300 to 4300a

707900604

$219.99

4300a

Upper Link

707900049

$43.99

4400

RH Front Safety Net | Includes 4400 to 4400a

707900605

$219.99

4400a

Upper Link

707900049

$43.99

4500

Safety Net Link

707900592

$4.14

4510

Torx Screw K50 X 16

250000720

$1.69
