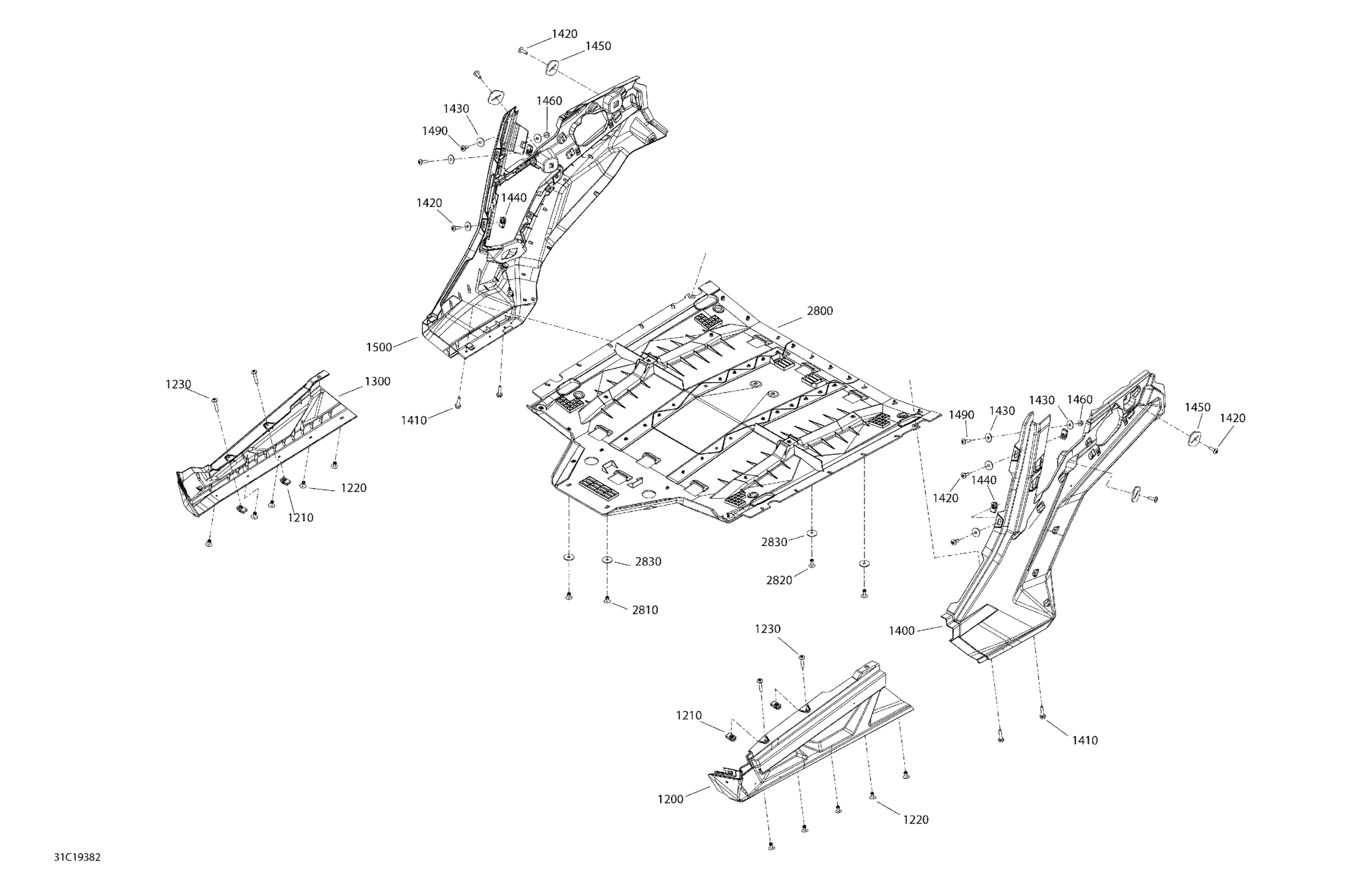

Can-Am Maverick Trail 800 - BASE_DPS - 2019 Body Maverick Trail - 800 - Middle Section Diagram

Description

Price

1200

LH Rocker Panel

705011331

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150108

$1.19

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1300

RH Front Rocker Panel

705016939

$77.49

1400

LH Rear Panel

705011335

$204.99

1410

Hex. Flange Screw M6 X 20

207662054

$1.01

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1440

Panel Nut M6 X 1.0

250100198

$2.11

1450

Support Plate

705003841

$0.99

1460

Hex. Elastic Flange Nut M6

233161464

$1.01

1490

Torx Screw M6 X 20

250000722

$1.68

1500

RH Rear Panel

705011336

$204.99

2800

Kit Plate_Skid F

703501097

$169.49

2810

Pop Rivet 3/16”

293150087

$0.93

2820

Pop Rivet 3/16”

293150087

$0.93

2830

Washer

224060251

$0.58

10000

Torx Head Screw M6 X 16

250000717

$2.11
