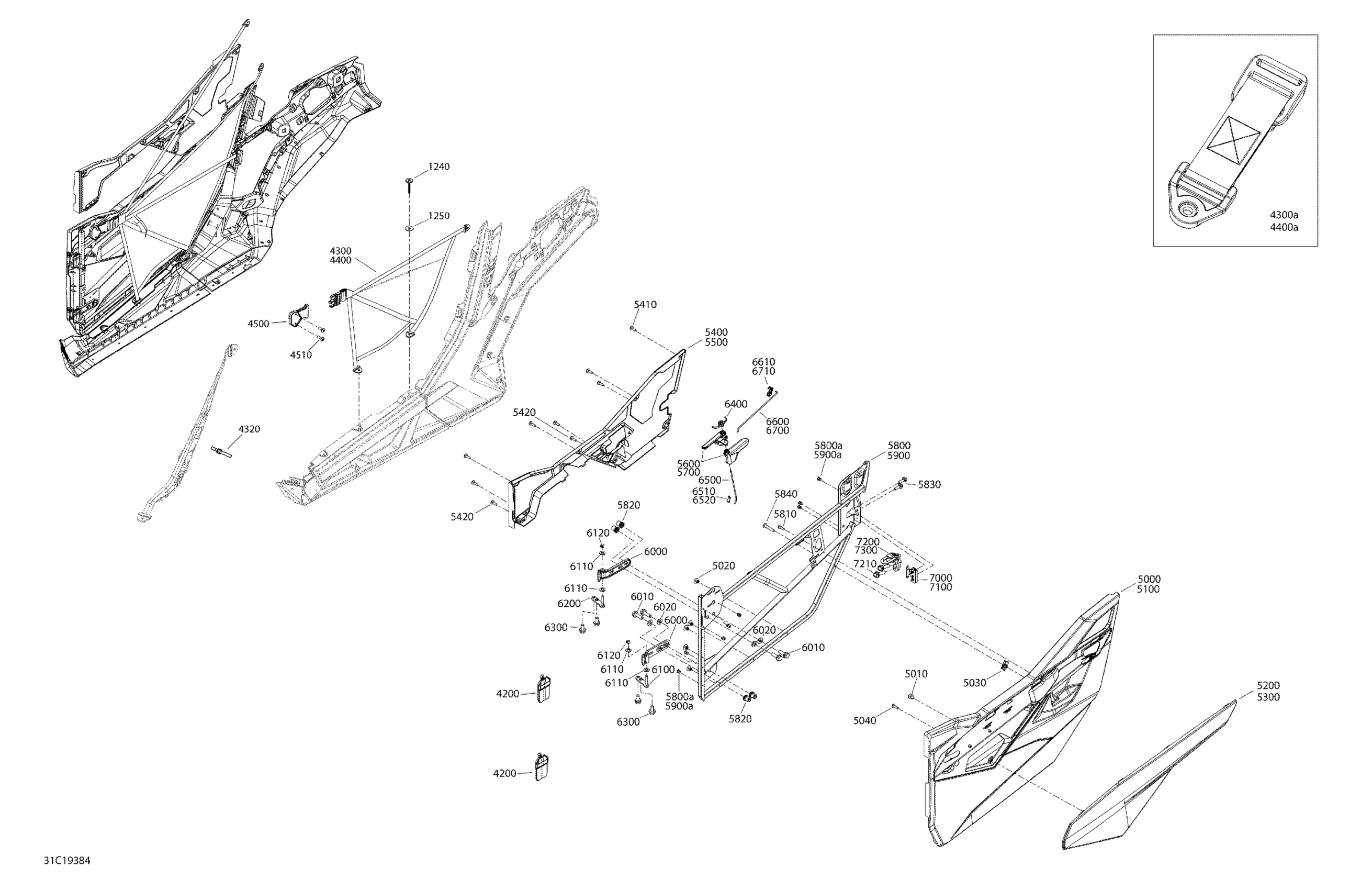

Can-Am Maverick Trail 800 - BASE_DPS - 2019 Body Maverick Trail - 800 - Door Section Diagram

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

Flat Washer M6.6 X 22

250200162

$1.91

Hinge Cover

705012703

$13.49

LH Front Safety Net | Includes 4300 to 4300a

707900604

$207.66

Upper Link

707900049

$41.51

Tie Rap, 533 mm

293750047

$1.83

RH Front Safety Net | Includes 4400 to 4400a

707900605

$207.66

Upper Link

707900049

$41.51

Safety Net Link

707900592

$4.98

Torx Screw K50 X 16

250000720

$1.39

LH Exterior Door Panel

705011479

$105.35

Rubber Bumper

293830005

$5.33

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw K50 X 16

250000720

$1.39

RH Exterior Door Panel

705011480

$105.35

White, LH Door Trim Panel | Package Base

705011481

Unavailable

Red, LH Door Trim Panel | DPS, Red Model

705012419

$175.35

White, RH Door Trim Panel | Package Base

705011482

$116.89

Red, RH Door Trim Panel | DPS, Red Model

705012420

$175.35

LH Inner Door Panel Ass'y

715005003

$101.51

Torx Screw K50 X 16

250000720

$1.39

Torx Screw K50 X 16

250000720

$1.39

RH Door Panel Ass'y

715006765

$101.51

LH Opening Handle

705011585

$16.12

RH Opening Handle

705011586

$16.12

LH Door Frame | Includes 5800 to 5800a10

705800303

$140.74

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

Torx Screw K50 X 16

250000720

$1.39

Insert Half Hex Body M8 x 1.25

293450307

$2.03

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Torx Screw M6 X 35

250000541

$1.74

RH Door Frame | Includes 5900 to 5900a10

705800304

$140.74

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

Hinge

705013228

$27.66

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

Washer

503192494

$3.11

Lock Washer 8 mm, Stainless

234181601

$0.46

Lower Hinge Ajustement

705011629

$12.31

Flat Washer 8 mm, Nylon

234081100

$1.00

Circlip | RS STD

705601030

$4.12

Upper Hinge Ajustement

705012506

$12.31

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

Handle Spring

705011630

$10.14

Handle Axle

705206132

$11.54

RH Tie Rod Clip

708300202

$2.31

LH Tie Rod Clip

708300182

$2.31

LH Locking Rod

705206133

$3.98

RH Tie Rod Clip

708300202

$2.31

RH Locking Rod

705206134

$3.98

LH Tie Rod Clip

708300182

$2.31

LH Latch

705013095

$55.35

RH Latch

705013096

Unavailable

LH Stricker Support

705207027

$27.66

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

RH Stricker Support

705207028

$27.66
