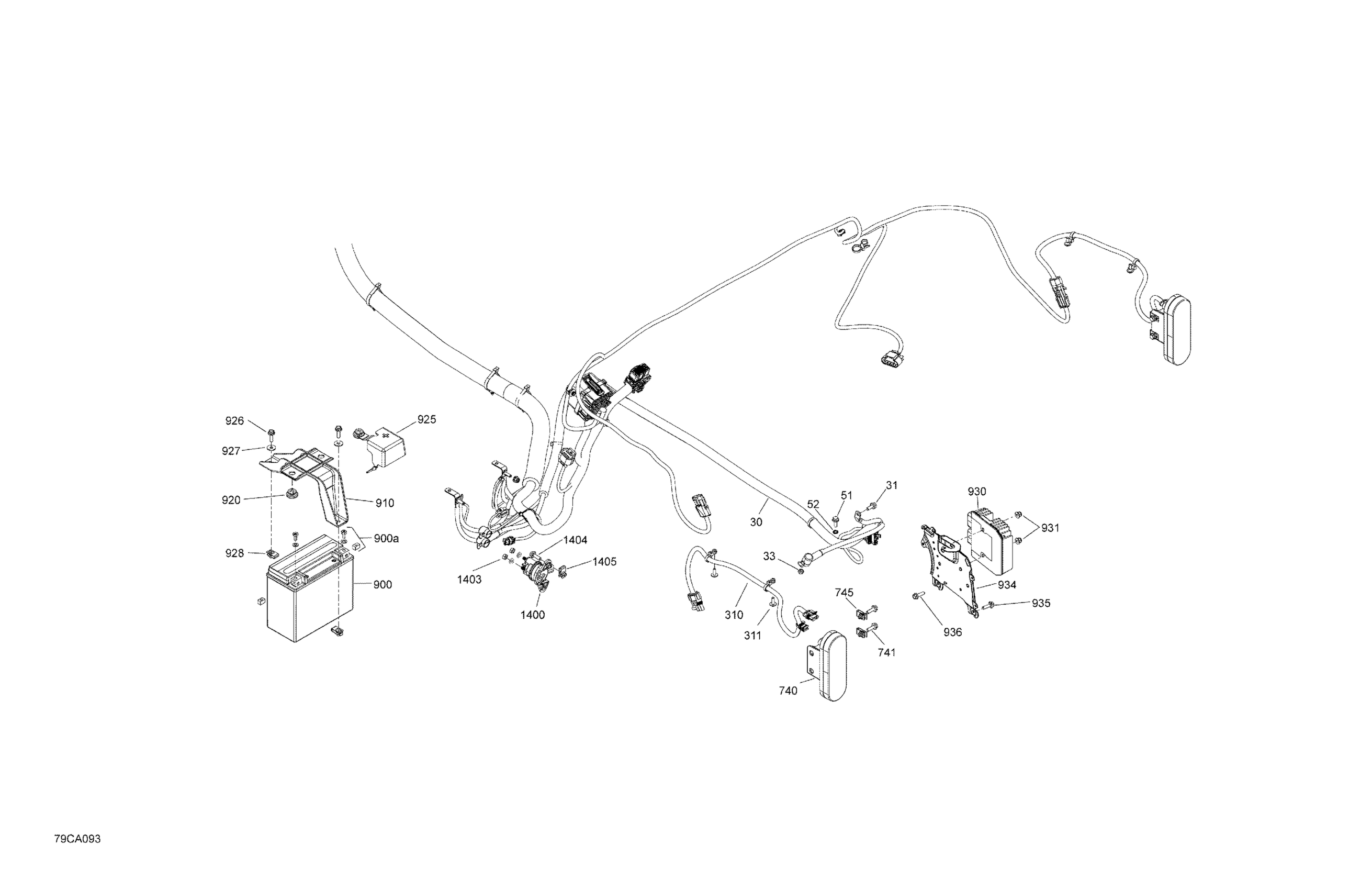

Can-Am Maverick Sport 1000 - BASE - 2021 Electric - Rear System Diagram

#

Description
Price

30

Starter Wiring Harness

710007207

$169.99

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

33

Elastic Stop Nut M6, Brass

232561200

$4.23

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

52

External Serrated Lock Washer 6 mm

234461608

$1.15

310

Rear Harness

710006551

$43.99

311

Screw PT Type K-50 X 16

250000959

$2.11

740

Tail Light

710004497

$111.49

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

910

Fixation Plate

710005673

$13.49

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710005930

$10.49

926

Hex. Flange Screw M6 X 20

207662054

$1.01

927

Stainless Steel Flat Washer

234062670

$2.11

928

Panel Nut M6 X 1.0

250100198

$2.11

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Elastic Nut M6

233261494

$1.58

932

Voltage Regulator Attach

710006402

$10.49

934

Rear Accessory Support

710008175

$34.99

936

Hex Screw Washer Head M8 X 20

207582054

$3.17

935

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1405

Panel Nut M6 X 1.0

250100198

$2.11
