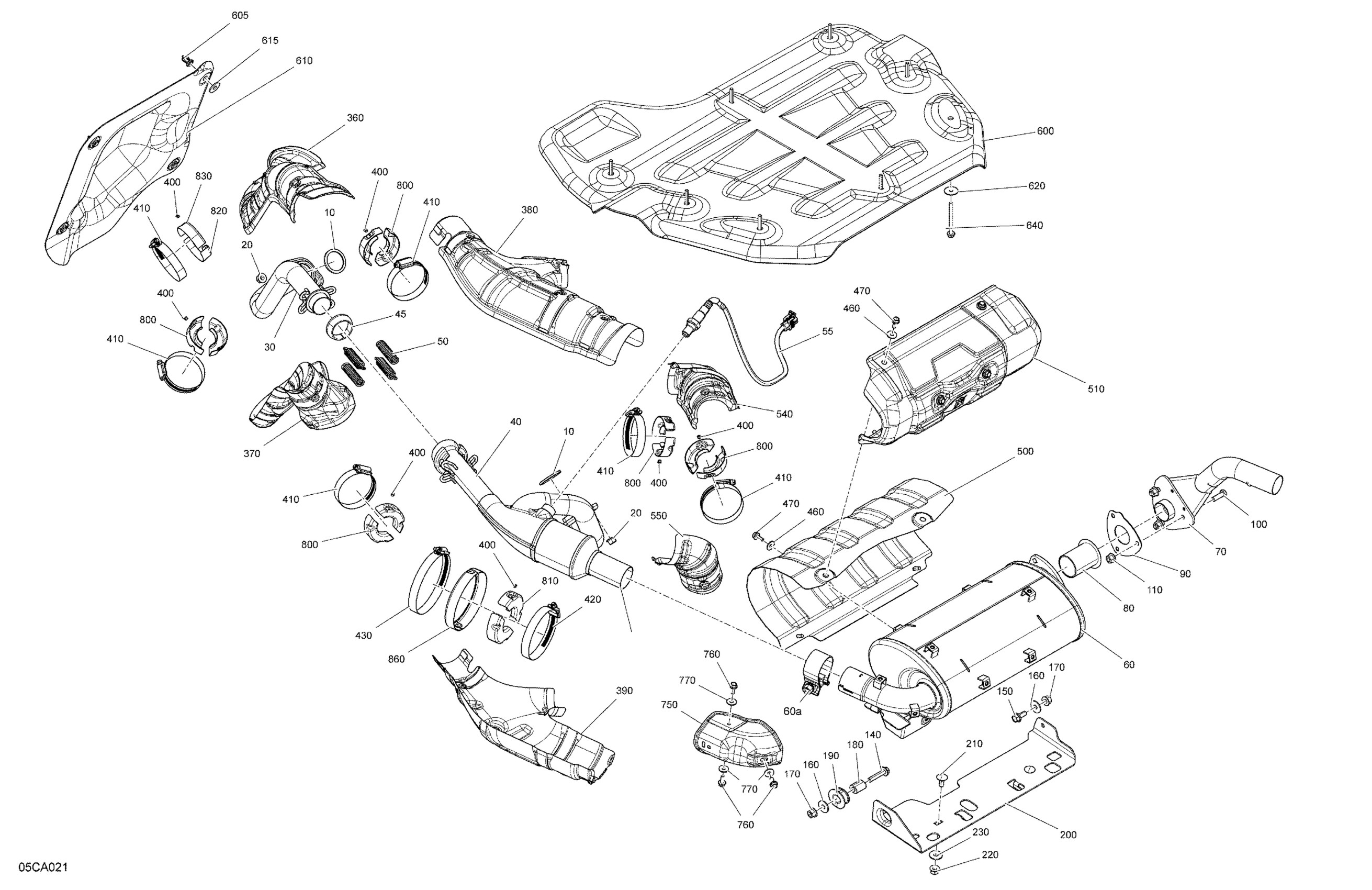

Can-Am Maverick Trail 800 - BASE_DPS - 2021 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut

233081436

$2.00

30

Front Exhaust Pipe | Engine HD8

707601913

$174.49

40

Rear Exhaust Pipe | Engine HD8

707601916

$328.49

45

Exhaust Gasket

707601814

$13.69

50

Spring

707601834

$6.35

55

Oxygen Sensor

707600872

$144.99

60

Exhaust Muffler | Include 60a

703501046

$847.49

60a

Exhaust Pipe Clamp

293650228

$12.49

70

Tail Pipe

707602520

$94.49

80

Spark Arrestor

707601803

$49.99

90

Gasket

707602205

$12.63

100

Hex. Screw Cap DIN.933

207182546

$1.01

110

Hex. Flange Nut

233081436

$2.00

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut

233081436

$2.00

180

Spacer

707601969

$16.99

190

Rubber Mount

707602102

$7.90

200

Muffler Support

707601588

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut

233081436

$2.00

230

Flat Washer 8 mm

234082410

$1.47

360

Heat Shield, Front

707601923

$26.99

370

Front Heat Shield

707602403

$27.99

380

Heat Shield

707601925

$30.99

390

Heat Shield

707601926

$30.99

400

Pop Rivet 1/8 X

293150071

$0.98

410

Tridon Gear Clamp

293650258

$14.31

420

Tridon Gear Clamp

293650250

$14.31

430

Tridon Gear Clamp

293650261

$6.19

460

Flat Washer 6 mm

234062410

$0.77

470

Hex Flange Screw M6 X 16

250000906

$5.29

500

Heat Shield

707601521

$27.99

510

Heat Shield

707602041

$27.99

540

Heat Shield, Rear

707601927

$18.99

550

Heat Shield, Rear

707601928

$18.99

600

Heat Shield

707603178

$114.99

605

Tuflok Plastic Rivet

293150230

$1.47

610

Heat Shield

707602043

$53.99

615

Flat Washer 8 mm

234082410

$1.47

620

Washer

224060251

$0.58

640

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

750

Heat Shield

707602532

$27.99

760

Hex Flange Screw M6 X 16

250000906

$5.29

770

Flat Washer 6 mm

234062410

$0.77

800

Exhaust Pipe Spacer

707602026

$3.29

810

Exhaust Pipe Spacer

707602027

$6.95

820

Exhaust Pipe Spacer

707601948

$6.95

830

Exhaust Pipe Spacer

707602016

$6.95

860

Exhaust Pipe Spacer

707602013

$12.16
