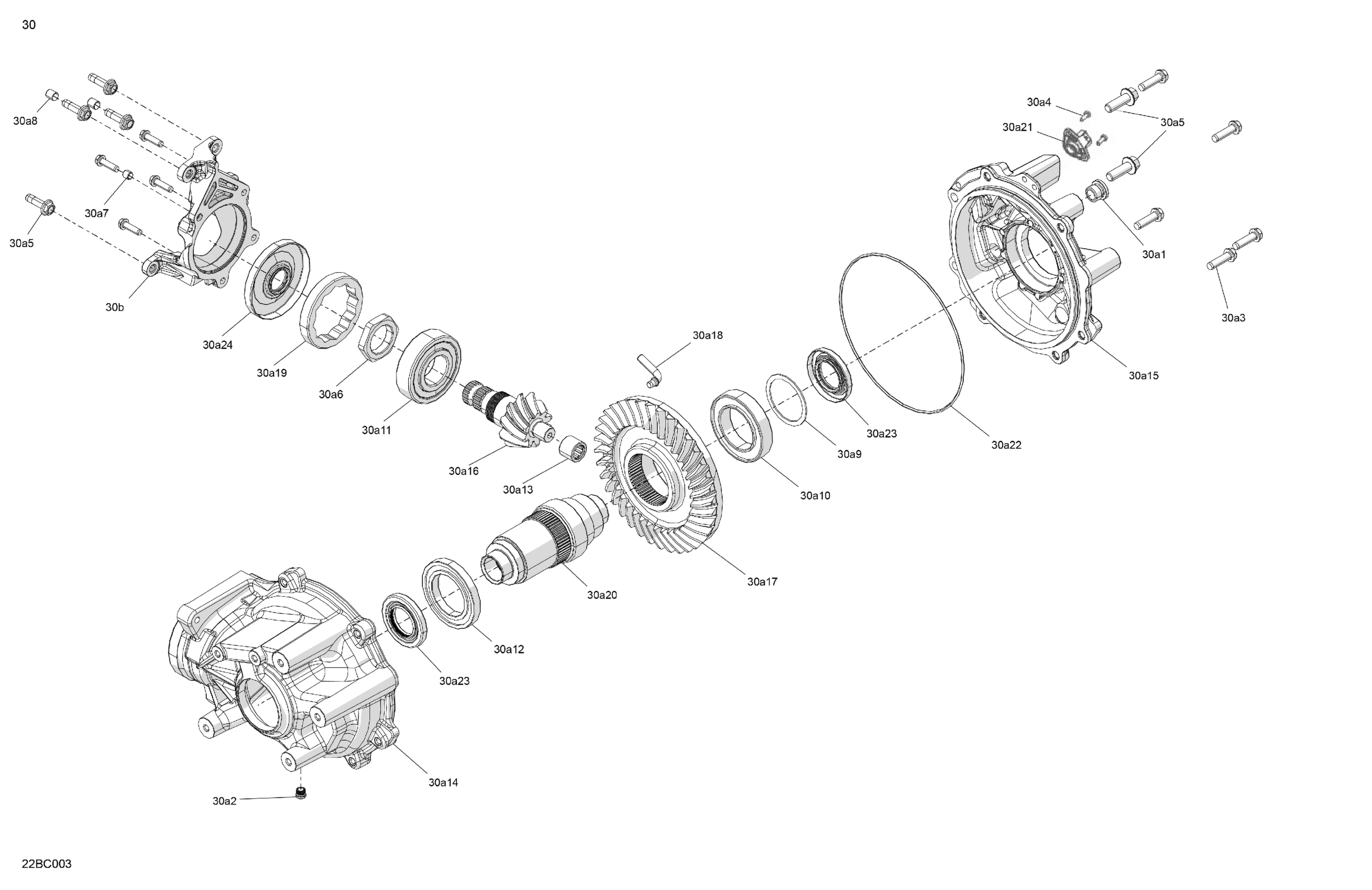

Can-Am Maverick Trail 700 - BASE - 2023 Drive - Final Drive Unit Diagram

Description

Price

Rear Differential Ass'y | Includes 30 to 30ac

705503462

$1,341.01

30a1

Fill Level Plug

705501889

$18.63

30a2

Fill Level Plug M10

715900563

$25.34

30a3

Bolt

705501886

$6.30

30a4

Screw

715900736

$18.63

30a5

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30a6

Nut

715900737

$30.57

30a7

Dowel Pin

715900738

$29.07

30a8

Dowel Pin

715900739

$29.07

30a9

Shim

715900740

$33.55

30a10

Ball Bearing

715900741

$40.27

30a11

Ball Bearing

715900782

$63.40

30a12

Ball Bearing

715900742

$26.09

30a13

Needle Bearing

705501874

$66.39

30a14

Case

715900816

$272.36

30a15

Cover

715900840

$196.99

30a16

Pinion, 10T Spiral

715900746

$121.61

30a17

Ring Gear 36T Spiral

715900747

$266.39

30a18

Vent Valve

705401935

$13.43

30a19

Nut

705501882

$34.30

30a20

Hub

715900748

$120.12

30a21

Cover

420427563

$8.24

30a22

O-Ring

715900749

$10.21

30a23

Oil Seal

715900531

$24.60

30a24

Seal

715900751

$39.52

30b

Differential Support

705503213

$170.12
