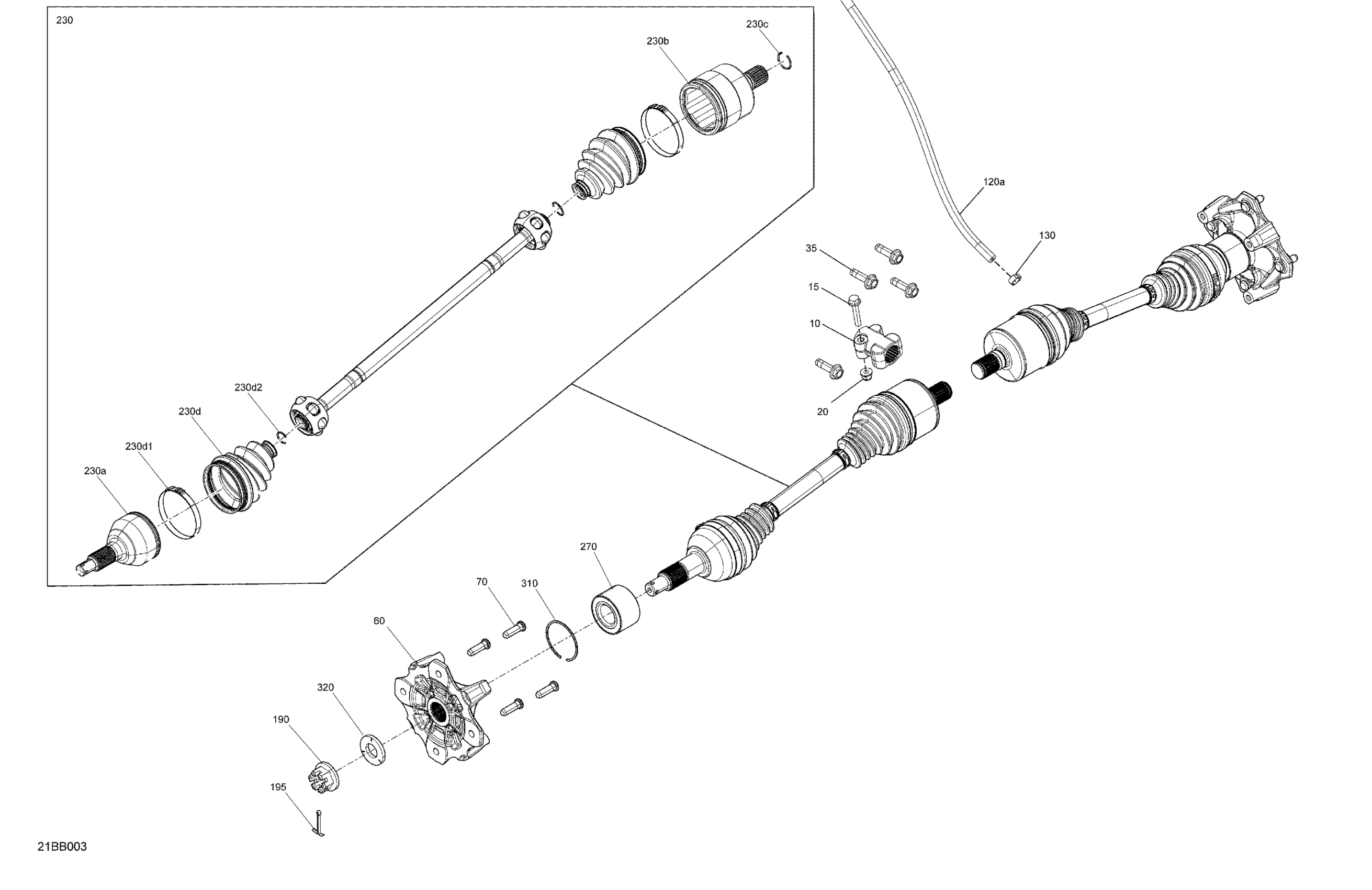

Can-Am Maverick Trail 700 - BASE - 2022 Drive - Rear - Common Parts Diagram

Description

Price

Coupling Sleeve

709402586

$35.99

Hex. Flange Screw M8 X 42

250001050

$1.16

Hex. Elastic Flange Nut M8

233281416

$1.48

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

120a

Hose

219704549

$50.99

130

Oetiker Clamp

293650042

$3.09

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Rear - Premium CV Axle | Includes 230 to 230d2

705502541

$243.99

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230b

Plunging Joint

715900444

$275.49

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$14.74
