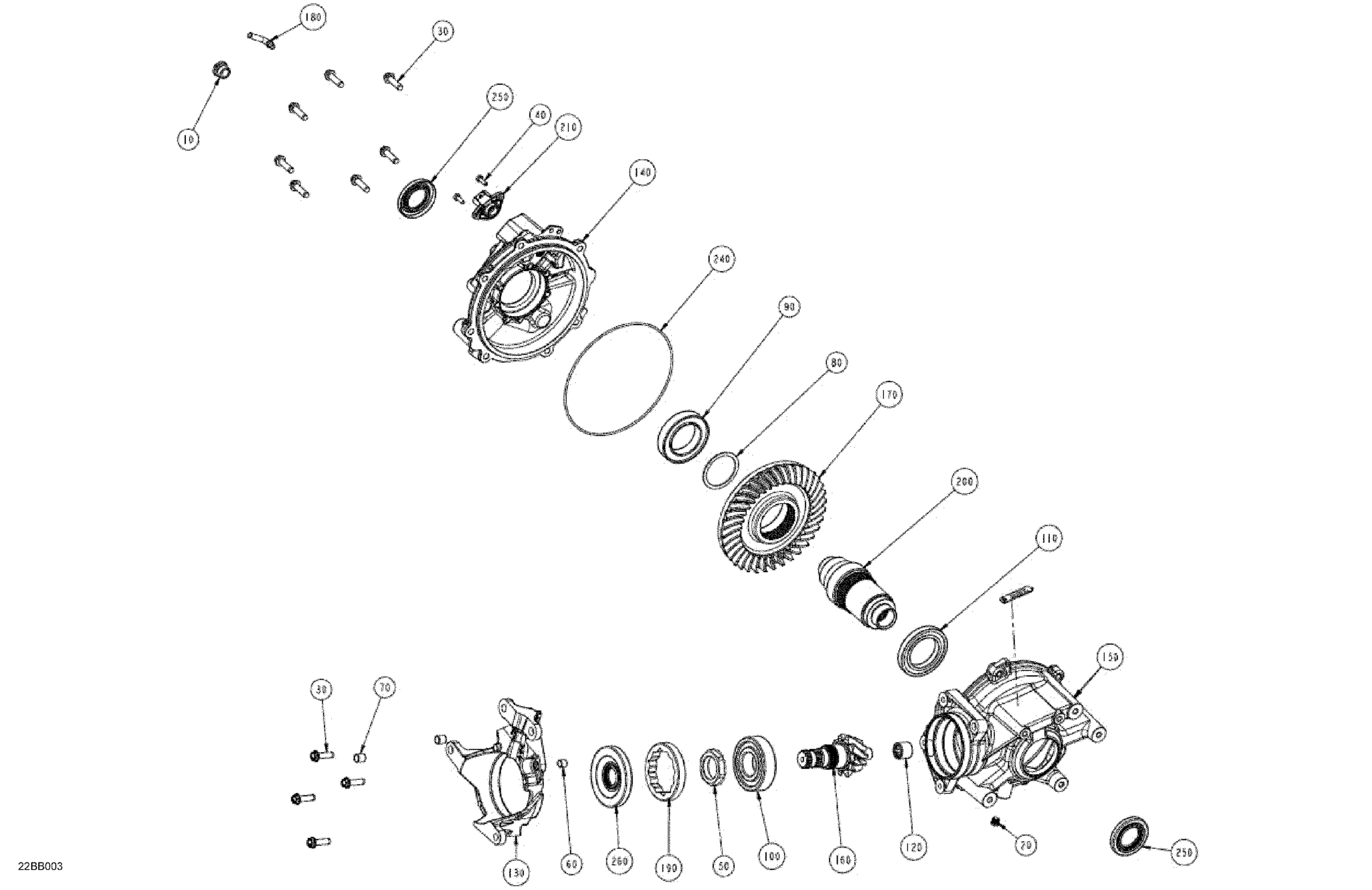

Can-Am Maverick Trail 700 - BASE - 2022 Drive - Final Drive Unit Diagram

#

Description
Price

10

Fill Level Plug

705501889

$18.43

20

Fill Level Plug M10

715900563

$27.66

30

Bolt

705501886

$6.75

40

Screw

715900736

$18.43

50

Nut

715900737

$32.28

60

Dowel Pin

715900738

$29.97

70

Dowel Pin

715900739

$29.97

80

Shim

715900740

$36.89

90

Ball Bearing

715900741

$40.49

100

Ball Bearing

715900782

$65.35

110

Ball Bearing

715900742

$26.89

120

Needle Bearing

705501874

$68.43

130

Differential Support

705503213

$179.97

140

Cover

715900767

$193.82

150

Case

715900744

$286.12

160

Pinion, 10T Spiral

715900746

$129.20

170

Ring Gear 36T Spiral

715900747

$281.51

180

Vent Valve

705401935

$14.37

190

Nut

705501882

$36.89

200

Hub

715900748

$129.20

210

Cover

420427563

$8.45

240

O-Ring

715900749

$10.98

250

Oil Seal

715900531

$27.66

260

Seal

715900751

$41.51
