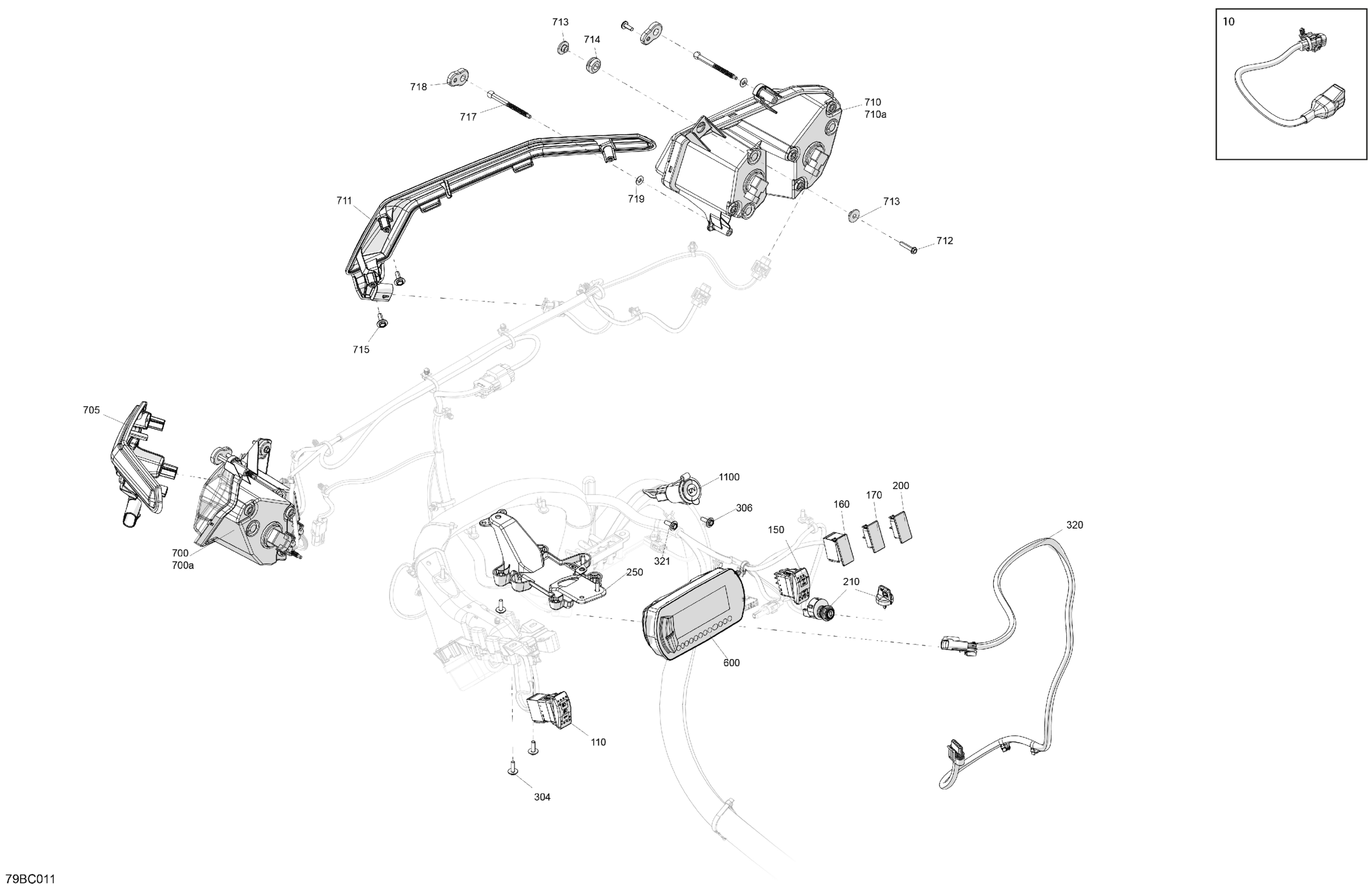

Can-Am Maverick Trail 700 - BASE - 2023 Electric - Front Section Diagram

Description

Price

Wiring Harness

710007655

$23.85

110

Light Switch

710004492

$44.00

150

Switch 2X4

710005489

$29.82

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

205

Specialized Nut

710007923

$1.99

209

Sticker | Not Shown

710008322

Unavailable

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

210a

Specialized Nut

710007923

$1.99

210b

Blank Ignition Key

715900934

$17.13

250

Housing Support

710005672

$7.81

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$211.91

321

Screw PT Type K-50 X 16

250000959

$1.74

600

Multifunction Compact Gauge

710007407

$335.04

700

LH Headlamp | Includes 700 to 700a

710008230

$177.58

700a

Bulb 12V 55W

715900141

$38.78

705

LH Fascia Trim

705011485

$39.52

710

RH Headlamp | Includes 710 to 710a

710008231

$177.58

710a

Bulb 12V 55W

715900141

$38.78

711

RH Fascia Trim

705011486

$39.52

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.25

715

Screw PT Type K-50 X 16

250000959

$1.74

717

Ajustment Screw

710005837

$5.90

718

Ball Socket

293900157

$7.88

719

O-Ring

293300192

$3.81

1100

12V Power Outlet

710005374

$27.27
