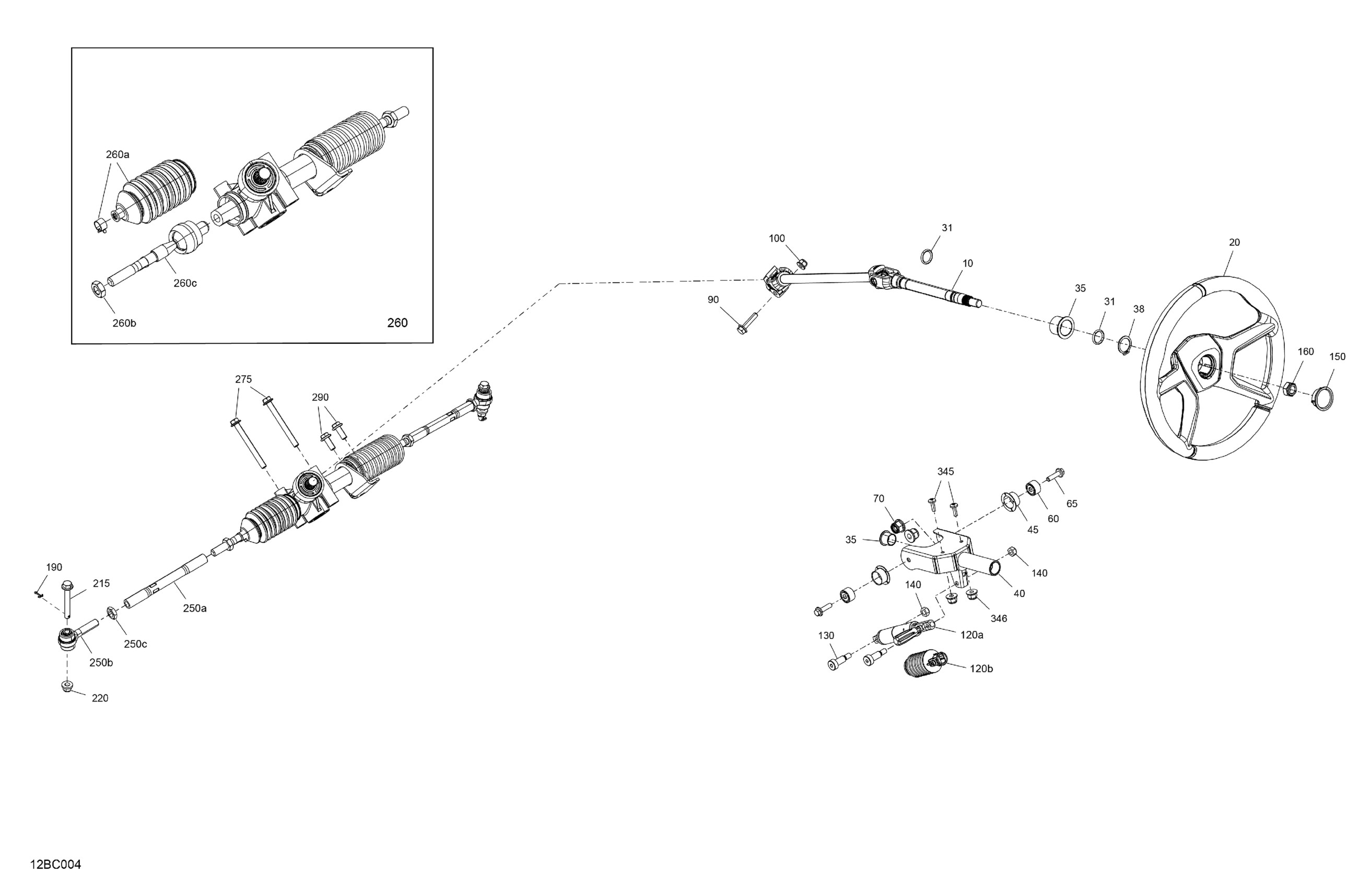

Can-Am Maverick Trail 700 - BASE - 2023 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column Ass'y

709402616

$177.58

20

Steering Wheel

709401966

$486.54

31

O-Ring

293300144

$3.79

35

Steering Bushing

709402725

$3.07

38

Circlip

293370110

$2.03

40

Steering Support

709401602

$74.60

45

Bushing

709401603

$6.57

60

Bushing

709401604

$4.39

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

70

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Flange Screw M8 X 35

250001021

$3.61

100

Hex. Elastic Flange Nut M8

233281416

$1.25

120a

Adjustment Cylinder

709402506

$64.90

120b

Boot Tube Side

709401232

$13.62

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561434

$1.55

150

Steering Cap

709401514

$14.37

160

Elastic Lock Nut M16

232511414

$1.64

190

Cotter Pin

211400017

$0.25

215

Screw Hex Cap M10 X 75

250000814

$3.95

220

Hex. Flange Elastic Nut M10

233201436

$1.74

250a

Connection Rod

709401990

$19.37

250b

Ball Joint

709401991

$49.22

250c

Steering Rod Nut

715900238

$1.76

260

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$433.55

260a

Pinion Side Boot Kit

715900836

$50.72

260b

Steering Rod Nut

715900238

$1.76

260c

Tie Rod

715900838

$66.39

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

290

Hex. Flange Screw M10 X 25

207502546

$1.74

345

Torx Screw M6 X 20

250000712

$1.74

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
