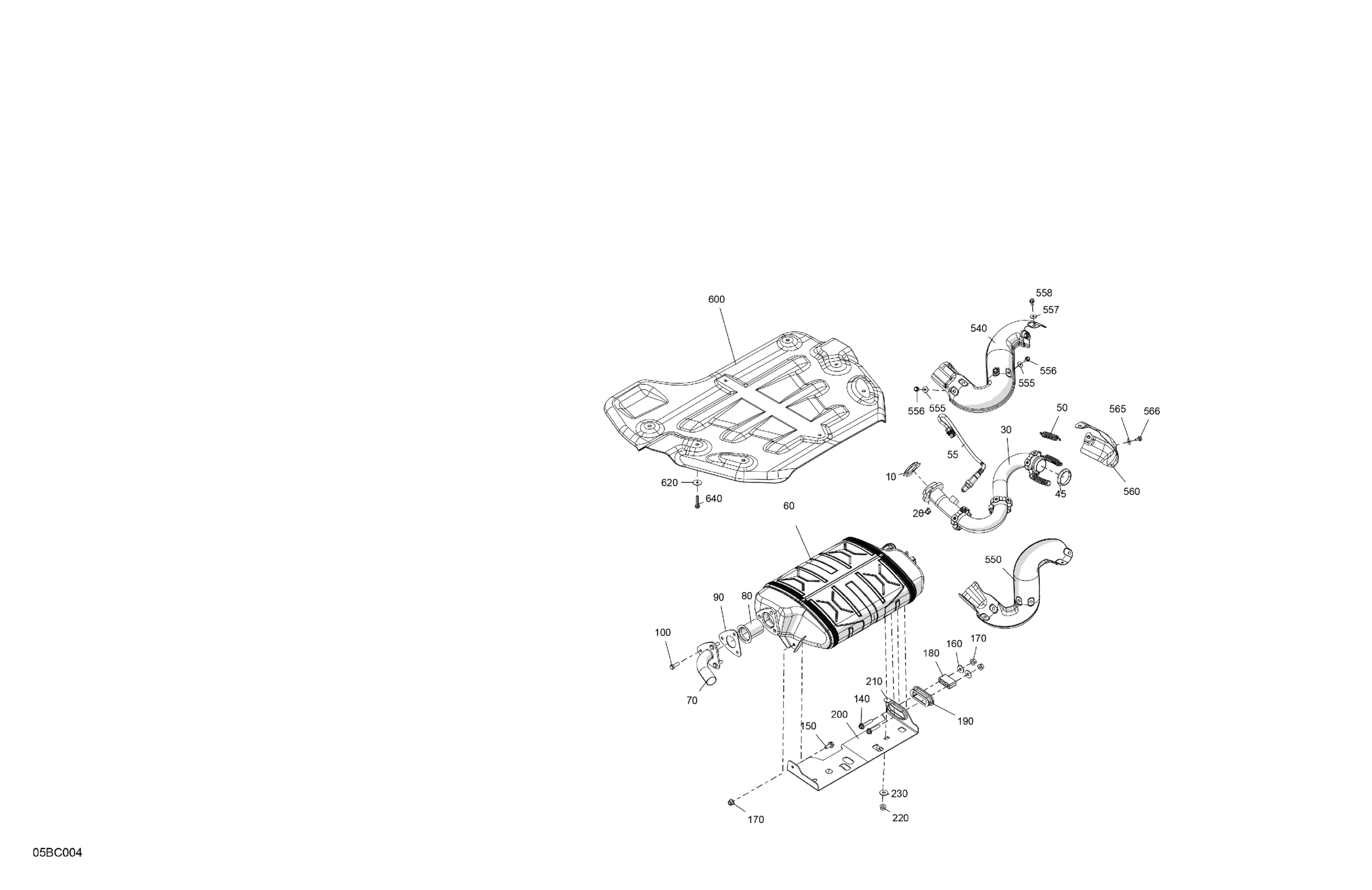

Can-Am Maverick Trail 700 - BASE - 2023 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$4.69

20

Hex. Flange Nut

233081436

$1.63

30

Exhaust Pipe Ass'y

707603670

$311.16

45

Exhaust Gasket

707603439

$13.73

50

Spring

707601834

$6.01

55

Oxygen Sensor

707600872

$115.67

60

Exhaust Muffle Ass'y

707603073

$738.78

70

Tail Pipe

707603212

$81.31

80

Spark Arrestor

707601803

$46.24

90

Gasket

707602731

$10.51

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut

233081436

$1.63

180

Muffler Stopper

707603214

$11.93

190

Rubber Bumper

707603330

$13.51

200

Exhaust Support

707603201

$27.58

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut

233081436

$1.63

230

Flat Washer 8 mm

234082410

$1.11

540

Front Upper Heat Shield

707603060

$76.84

550

Front Lower Heat Shield

707603061

$76.84

555

Flat Washer 6 mm

234062410

$0.64

556

Hex. Flange Screw M6 X 12

207661244

$1.70

557

Flat Washer 6 mm

234062410

$0.64

558

Hex. Flange Screw M6 X 12

207661244

$1.70

560

Rear Heat Shield

707603324

$48.48

565

Flat Washer 6 mm

234062410

$0.64

566

Hex. Flange Screw M6 X 12

207661244

$1.70

600

Heat Shield

707603178

$99.97

620

Washer

224060251

$0.55

640

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74
