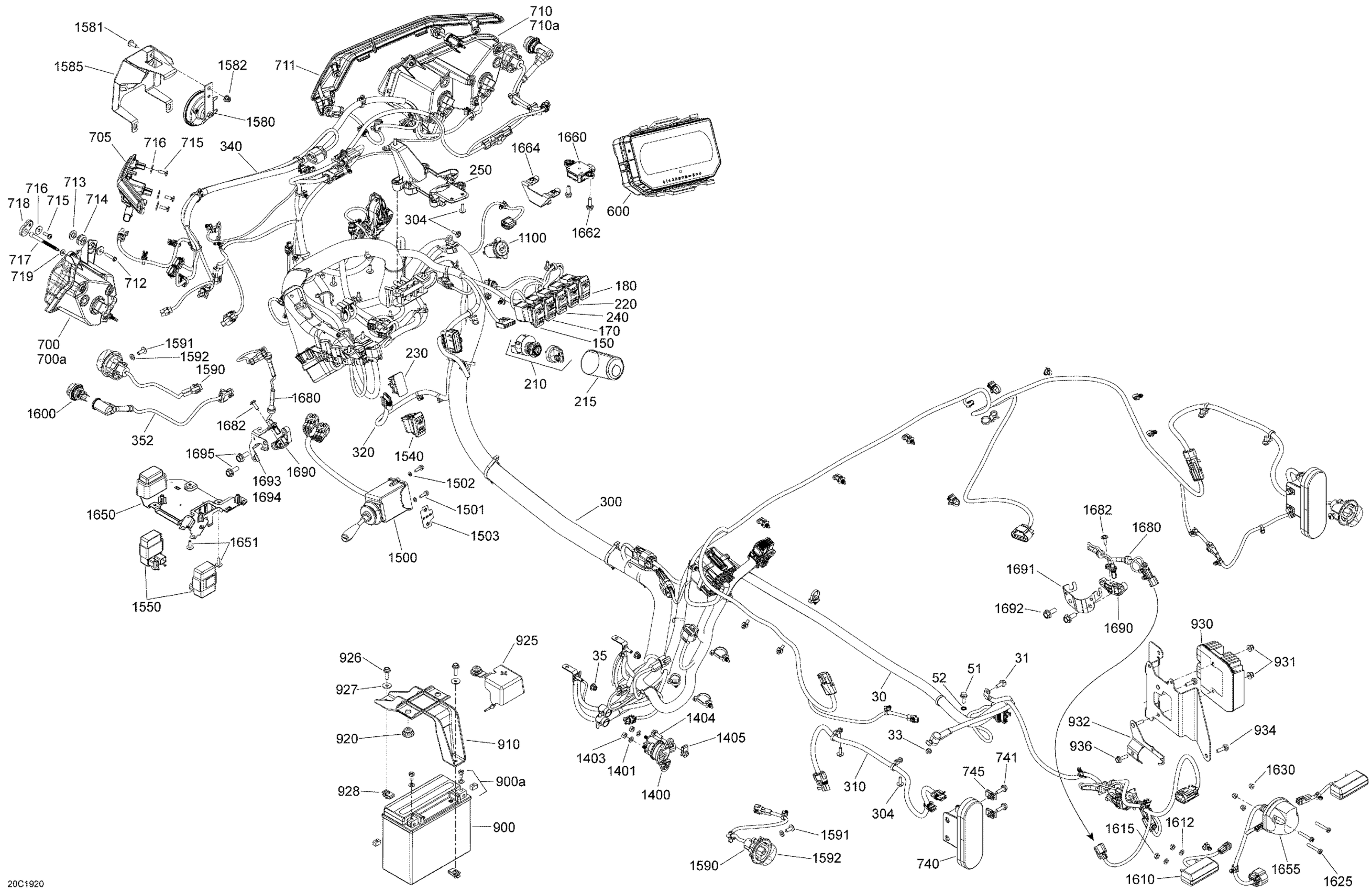

Can-Am Maverick Sport 1000R - DPS - T1B Series, 2019 Electrical - DPS - T1B Diagram

#

Description
Price

30

Starter Wiring Harness

710006233

$161.51

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

33

Elastic Stop Nut M6

232561414

$1.55

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

52

External Serrated Lock Washer 6 mm

234461608

$0.92

150

Switch 2X4

710005489

$32.28

170

Differential Lock Switch

710005470

$46.12

180

Switch HDC

710006553

$23.05

210

Inter Allumage *Ignition

710007870

$55.35

215

Key Switch Protector

710005739

$2.69

220

Driving Mode Switch

710005909

$36.89

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

240

Cluster Navigator Switch

710006183

$36.89

250

Housing Support

710005672

$8.05

300

Main Wiring Harness

710006235

$876.89

304

Screw PT Type K-50 X 16

250000959

$1.74

310

Rear Harness

710006551

$41.51

320

Trottle Pedal Harness

710005929

$226.12

340

Front Wiring Harness

710006218

$101.51

352

Position Light Harness

710005676

$13.52

600

Speedometer

710006723

$341.51

600

Speedometer

710006723

$341.51

700

LH Headlamp | Includes 700 TO 700a

710006422

$189.20

700a

Bulb 12V 55W

715900141

$41.51

705

LH Signature Beam

710004994

$161.51

710

RH Headlamp

710006423

$189.20

710a

Bulb 12V 55W

715900141

$41.51

711

RH Signature Beam

710004995

$161.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Torx Screw K50 X 16

250000720

$1.39

716

Stainless Steel Flat Washer

234062670

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

Tail Light

710004257

$92.28

740

Tail Light

710004497

$110.74

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

910

Fixation Plate

710005673

$10.15

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710005930

$8.46

926

Hex. Flange Screw M6 X 20

207662054

$0.83

927

Stainless Steel Flat Washer

234062670

$1.74

928

Panel Nut M6 X 1.0

250100198

$1.73

930

Voltage Regulator

710005842

$159.87

931

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

932

Voltage Regulator Attach

710006402

$8.05

934

Voltage Regulator Support

710006656

$11.15

936

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1100

12V Power Outlet

710005374

$27.27

1400

Starter Relay

278003012

$35.07

1401

Lock Washer Helical M6

234161601

$0.92

1403

Hex. Nut M6

232061600

$0.91

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1405

Panel Nut M6 X 1.0

250100198

$1.73

1500

Turn Signal | Europe

710001721

$198.43

1501

Hex. Forming Screw M5 X 16

210251650

$0.92

1502

Lock Washer 5 mm | Europe

234151401

$0.46

1503

Flasher Decal | Europe

704902614

$16.89

1504

Tuflok Plastic Rivet

293150230

$1.21

1540

Hazard Lights Switch

710006107

$18.43

1550

Flasher Unit

710003239

$78.43

1580

Horn

710004791

$37.66

1581

Torx Truss Screw M6 X 16

250000721

$1.39

1582

Hex. Flange Elastic Nut M6

233261494

$1.26

1585

Horn Bracket

710006055

$60.74

1590

Flasher | Europe

710002964

$35.14

1591

Torx Truss Screw M6 X 16

250000721

$1.39

1592

Flat Washer 6 mm

234061410

$1.04

1594

Dart Tie Rap 200MM

710003168

$5.72

1600

Day Light | Europe

710001726

$36.89

1600a

Cap Protector | Model-Europe

710003269

$10.98

1610

License Light

710002055

$59.99

1610a

Bulb

219800128

$2.99

1610

License Light

710002055

$59.99

1612

Lock Washer Helical M6

234161601

$0.92

1615

Hex. Nut M6

232061600

$0.91

1625

Phillips Screw M5 X 35

208653560

$1.85

1630

Hex. Flange Elastic Nut M5

233251414

$1.66

1650

Support Connector

710006056

$5.00

1651

Screw PT Type K-50 X 16

250000959

$1.74

1652

Screw PT Type K-50 X 16

250000959

$1.74

1655

Trailer Wiring Harness

710006245

$115.35

1660

Yaw Rate Sensor

710005658

$166.12

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

1664

Yaw Sensor Support

710006501

$32.28

1680

Speed Sensor

710006981

$78.43

1682

Screw PT Type K-50 X 16

250000959

$1.74

1683

Clip (double dart)

278002910

$11.06

1684

Clip

710001343

$7.09

1690

Sensor Support

705402088

$2.98

1691

ABS Harness Support

710006452

$16.89

1692

Hex Screw Washer Head M8 X 20

207582054

$2.61

1693

RH ABS Harness Support

710006554

$16.89

1694

LH ABS Harness Support

710006555

$16.89

1695

Hex Screw Washer Head M8 X 20

207582054

$2.61
