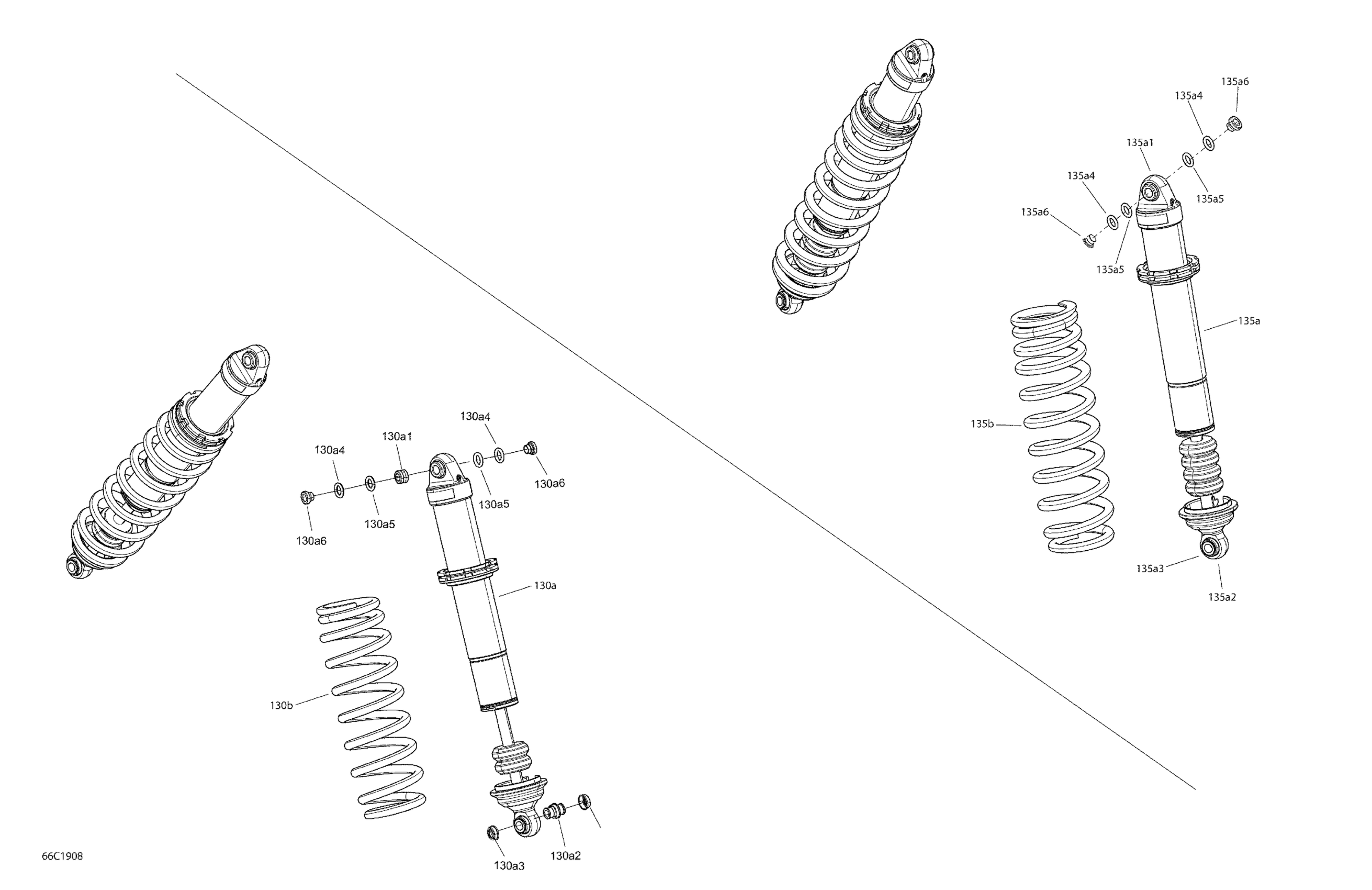

Can-Am Maverick Sport 1000R - DPS - T1B Series, 2019 Shocks - Package DPS Diagram

Description

Price

130a

Front Shock | Includes 130a to 130a6

706203194

$399.99

130a1

Spherical Bearing

715900329

$84.99

130a2

Spherical Bearing

715900330

$84.99

130a3

Protector

715900331

$13.99

130a4

O-Ring Bushing

715900268

$14.75

130a5

Retaining Ring

715900252

$12.49

130a6

Internal Bushing

715900267

$26.49

130b

Can-Am Red Front Spring | Red

706203560

$100.49

130b

Sunburst Yellow Front Spring | Sunburst Yellow

706203561

$100.49

135a

Rear Shock | Includes 135a to 135a6

706003029

$399.99

135a1

Spherical Bearing

715900329

$84.99

135a2

Spherical Bearing

715900330

$84.99

135a3

Protector

715900331

$13.99

135a4

O-Ring Bushing

715900268

$14.75

135a5

Retaining Ring

715900252

$12.49

135a6

Internal Bushing

715900267

$26.49

135b

Can-Am Red, Rear Spring | Red

706003354

$100.49

135b

Sunburst Yellow, Rear Spring | Sunburst Yellow

706003355

$104.99
