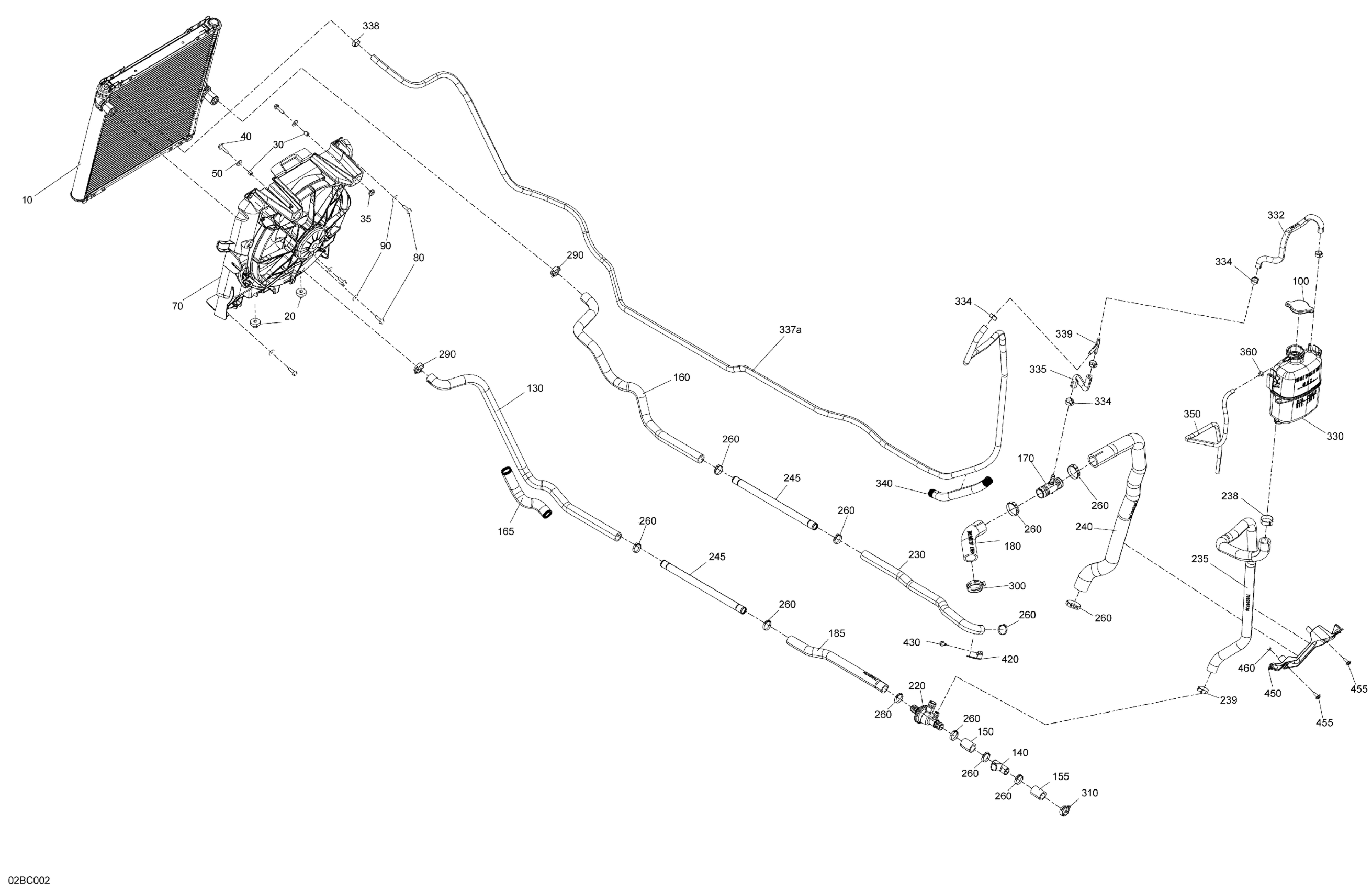

Can-Am Commander 1000R EFI - DPS - 2023 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200703

$360.49

20

Grommet

709200948

$8.89

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200665

$329.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

130

Radiator Inlet hose

709200793

$63.49

140

T-Fitting

509001313

$16.40

150

Pump Hose

709200672

$9.79

155

Pump Hose

709200672

$9.79

160

Radiator Outlet Hose

709200797

$35.99

165

Tubing 35 MM 1000MM Long

219704428

$10.99

170

T-Fitting

509000510

$13.16

180

Intermediate Outlet Hose

709200729

$39.99

185

Intermediate Inlet Hose

709200794

$41.49

220

Thermostat Housing

709200967

$103.99

230

Radiator Hose

709200795

$12.11

235

Coolant Tank Hose

709200736

$38.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Thermostat Inlet Hose

709200796

$35.99

245

Heater Tubing

709200664

$19.49

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

300

Norma Spring Clamp

293650166

$4.44

310

Norma Spring Clamp

293650166

$4.44

330

Coolant Tank

709201323

$80.99

332

Bleeding Hose

709200799

$20.99

334

Crimp Clamp, 15.3-706R

293650047

$3.29

335

Bleeding Hose

709200717

$20.99

337a

Was 415129508 Bleeder Hose

219704416

$12.18

338

Oetiker Clamp

293650042

$3.09

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

420

Support

709200721

$11.07

430

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

450

Support

709200746

$4.44

455

Screw PT Type K-50 X 16

250000959

$2.11

460

Bushing

709200761

$11.12
