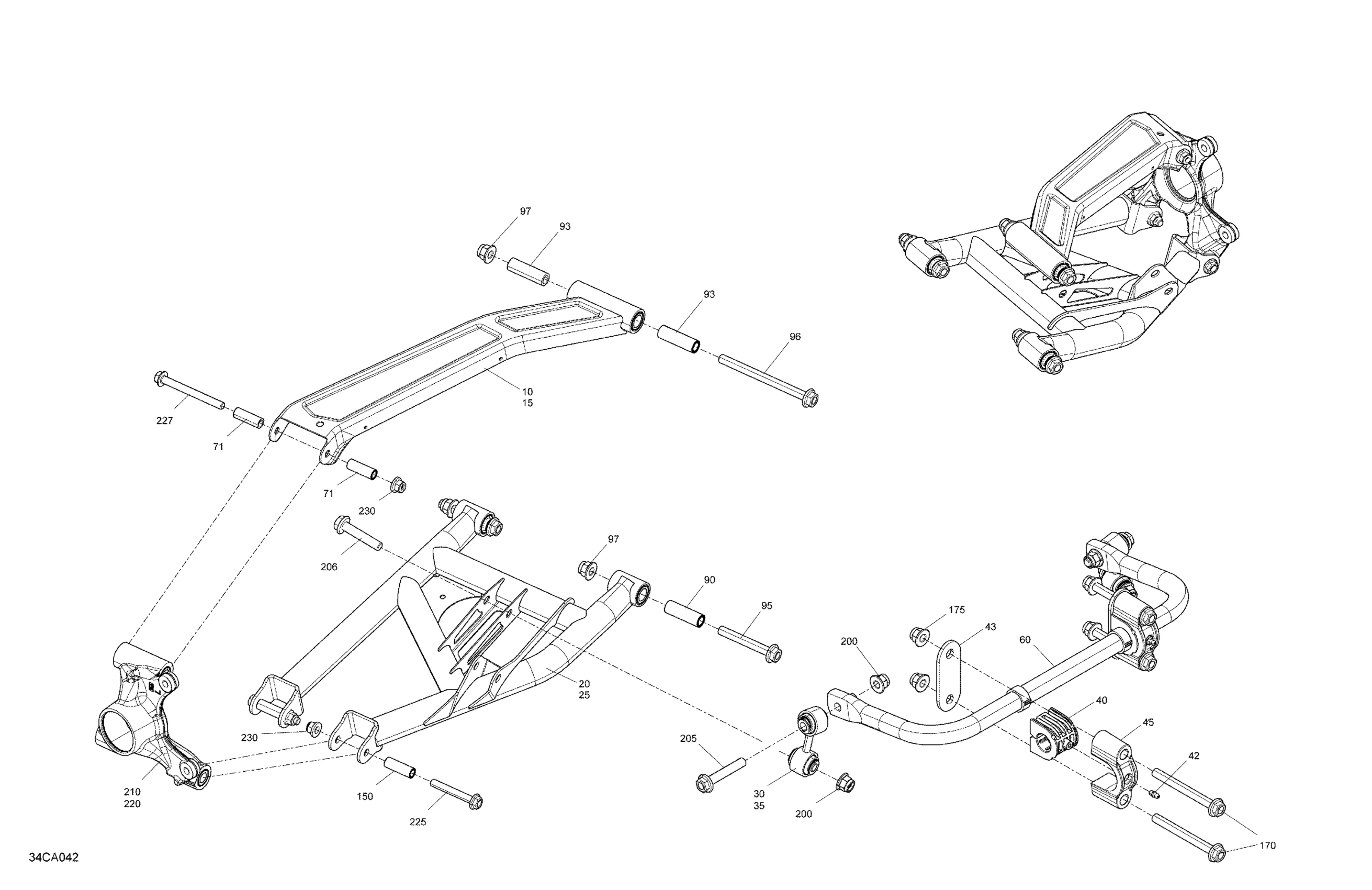

Can-Am Maverick Sport 1000 - BASE - 2021 Suspension - Rear - Built After January 18th 2021 Diagram

#

Description
Price

10

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003713.

715010683

$223.85

15

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003714.

715010694

$223.85

20

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003725.

715010703

$223.85

25

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003726.

715010710

$223.85

30

Sway Bar Double Link

706003004

$104.45

35

Sway Bar Double Link

706003003

$104.45

40

Stabilizer Bar Bushing

706004272

$7.24

42

Grease Fitting

408200700

$3.21

43

Plate Support

706002977

$4.52

45

Clamp

706002970

$14.48

60

Sway Bar Ass'y

706002972

$114.90

71

Not Available As Spare Part - Friction Washer

Unavailable

90

Suspension Arm Bushing

706003528

$3.36

93

Suspension Arm Bushing

706004829

$3.58

95

Flange Screw M12 X 85

250000859

$4.54

96

Flange Screw M12 X 145

250000861

$6.28

97

Elastic Flange Nut M12

233221466

$2.46

150

Not Available As Spare Part - Friction Washer

Unavailable

170

Screw Flange M12 X 115

250000860

$6.28

175

Elastic Flange Nut M12

233221466

$2.46

200

Elastic Flange Nut M12

233221466

$2.46

205

Hex. Flange Screw M12 X 70

250000858

$3.57

206

Flange Screw M12 X 60

250000857

$6.99

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$114.90

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$114.90

225

Hex. Flange Screw M10 X 70

207607046

$2.82

227

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.00

230

Hex. Flange Elastic Nut M10

233201436

$2.00
