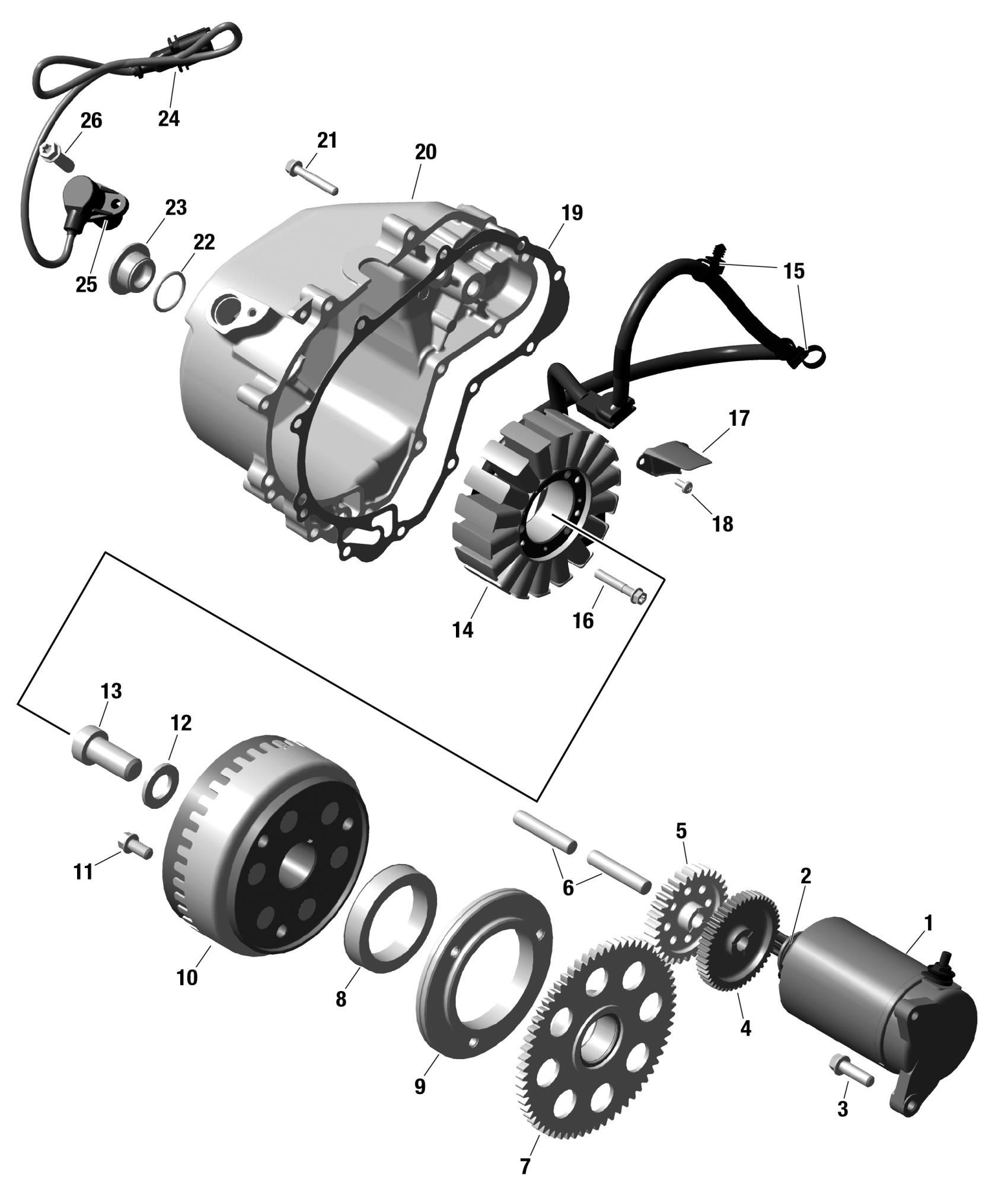

Can-Am Maverick Sport 1000R - DPS - CE, 2023 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Double Gear 11/49

420634743

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6

Location Pin 10 M6x50

420229302

$3.17

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

8

Sprag Clutch

420659111

$259.99

9

Sparg Clutch Housing

420659263

$154.99

10

Flywheel With Trigger Wheel 650W | With DPS, European Community, T3

420685704

$582.99

11

Torx Flange Screw M8 X 16

420440854

$4.44

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241549

$8.57

14

Stator Ass'y | Includes no. 14-15

420685923

$319.49

15

Not Available As Spare Parts

XXX

Unavailable

16

Torx Flange Screw M6 X 30

420440647

$2.00

17

Interior Cable Support Ass'y

420251889

$14.30

18

Phillips Screw M4 X 8

420240196

$2.32

19

Gasket

420651203

$35.99

20

Ignition Cover

420212225

$190.49

21

Torx Flange Screw M6 X 35

420440274

$1.01

22

O-Ring

420430781

$0.87

23

Plug Screw M24X 1.5

420241633

$7.41

24

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

25

O-Ring

420431580

$14.83

26

Torx Flange Screw M6 X 16

420440162

$3.17
