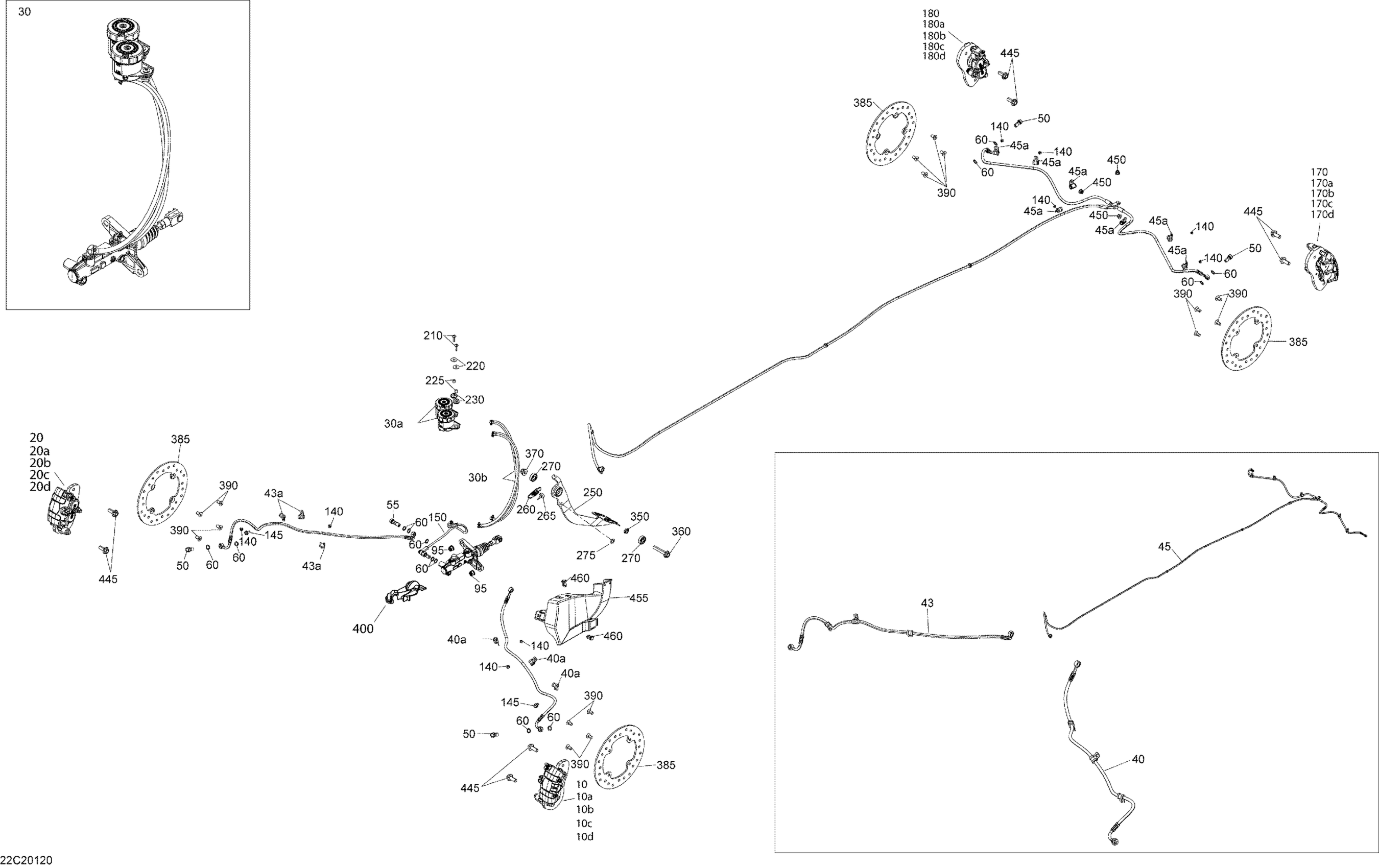

Can-Am Maverick Sport 1000 - BASE - 2020 Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$223.85

10a

LH Brake Pads

715900379

$108.18

10b

Bleeding Screw

705601017

$5.90

10c

Cap Spring Kit

715900385

$16.39

10d

Pin Kit | Packages STD & PRO

715900384

$10.30

20

RH Front Brake Caliper | RH Front

705601888

$223.85

20a

RH Brake Pads

715900380

$108.18

20b

Bleeding Screw

705601017

$5.90

20c

Cap Spring Kit

715900385

$16.39

20d

Pin Kit | Packages STD & PRO

715900384

$10.30

30

Master Cylinder

705601863

$256.69

30a

Oil Tank

705601020

$35.79

30b

Oil Housing Hose

705601019

$14.43

40

LH Front Caliper Hose | Includes 40 to 40a

705601854

$73.85

40a

Clamp

293650256

$5.00

43

RH Front Caliper Hose | Includes 43 to 43a

705601855

$80.57

43a

Clamp

293650256

$5.00

45

Rear Brake Hose | Includes 45 to 45a

705601641

$149.22

45a

Clamp

293650256

$5.00

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

55

Double Banjo Bolt

705601723

$6.73

60

Copper Washer

705601628

$4.21

95

Hex. Elastic Flange Nut M8

233281416

$1.43

140

Pop Rivet 3/16"

390402200

$0.30

145

Hex. Flange Screw M6 X 10

210261040

$1.43

150

Brake Switch

705601250

$55.19

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$204.45

170a

LH Brake Pads

715900386

$108.18

170b

Bleeding Screw

705601017

$5.90

170c

Pin Kit | Packages STD & PRO

715900384

$10.30

170c

Pin Kit | Packages STD & PRO

715900384

$10.30

170d

Cap Spring Kit

715900385

$16.39

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$204.45

180a

RH Brake Pads

715900387

$108.18

180b

Bleeding Screw

705601017

$5.90

180c

Pin Kit | Packages STD & PRO

715900384

$10.30

180c

Pin Kit | Packages STD & PRO

715900384

$10.30

180d

Cap Spring Kit

715900385

$16.39

210

Elastic Flange Nut M5

233251494

$2.00

220

Flat Washer

250200040

$1.76

225

Bushing

293900112

$9.30

230

Grommet

414036300

$2.55

250

Brake Pedal

705601537

$51.46

260

Brake Pedal Spring

705600792

$8.42

265

Rubber Stopper

708000759

$4.15

270

Bearing

705600458

$6.82

275

Nylon Flat Washer M8

250200183

$1.24

350

Bushing

705601622

$13.51

360

Hex. Flange Screw M10 X 55

207605546

$2.00

370

Hex. Flange Elastic Nut M10

233201436

$2.00

385

Brake Disc

705601511

$101.46

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

400

Hose Support

705601750

$4.19

445

Hex. Flange Screw M10 X 25

207502546

$2.00

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

455

Master Cylinder Deflector

705601626

$6.73

460

Tuflok Plastic Rivet

293150230

$1.39

475a

Tubing 10 MM 1000MM Long

219704407

$2.52
