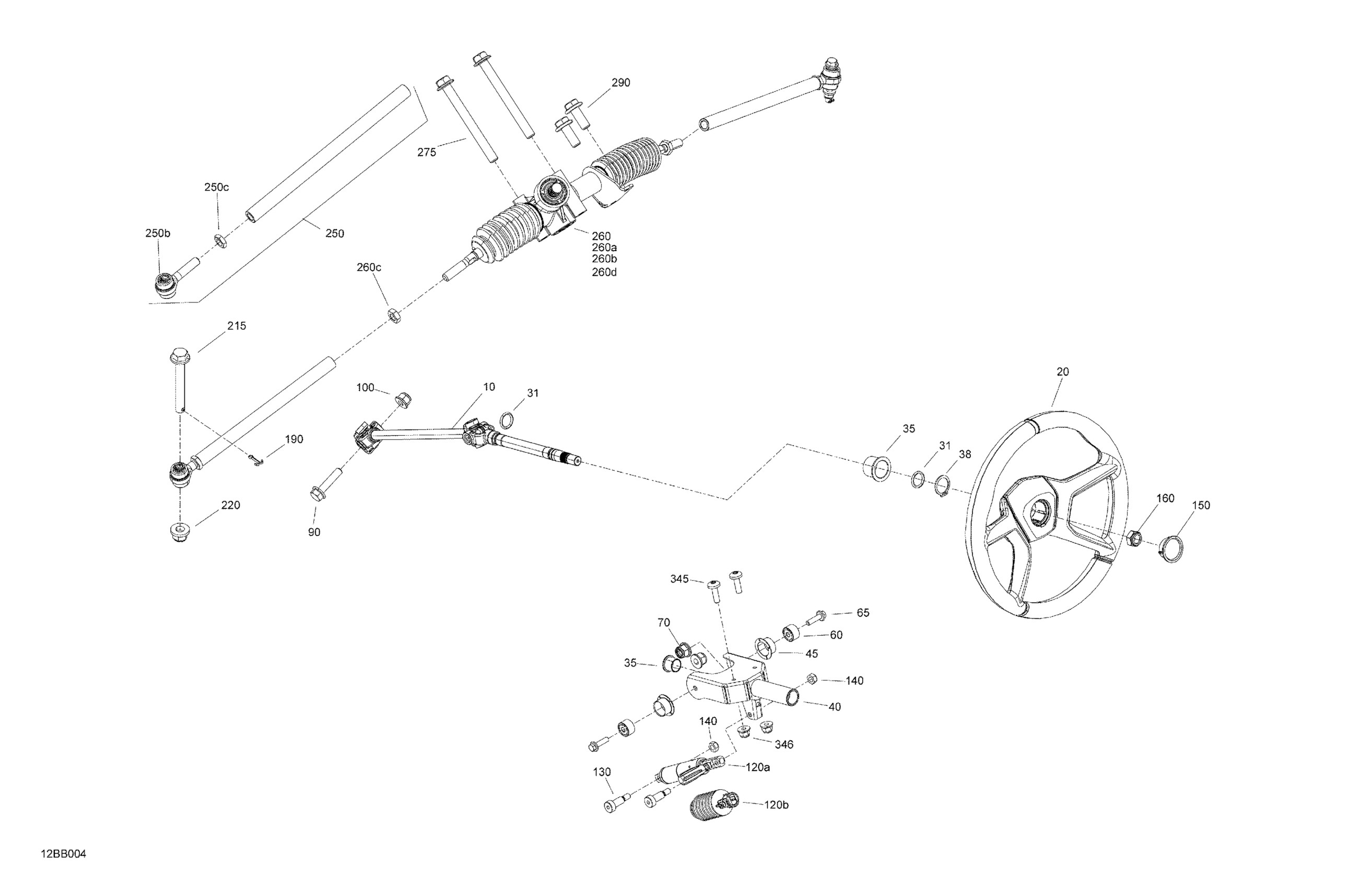

Can-Am Maverick Sport 1000 - BASE - 2022 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column Ass'y

709402616

$199.99

20

Steering Wheel

709401966

$529.49

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

38

Circlip

293370110

$2.61

40

Steering Support

709401602

$83.99

45

Bushing

709401603

$8.85

60

Bushing

709401604

$5.89

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

70

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Flange Screw M8 X 35

250001021

$4.44

100

Hex. Elastic Flange Nut M8

233281416

$1.48

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561434

$1.99

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.00

190

Cotter Pin

211400017

$0.33

215

Screw Hex Cap M10 X 75

250000814

$4.76

220

Hex. Flange Elastic Nut M10

233201436

$2.11

250

Tie Rod ass'y | Includes 250 to 250c

709402023

$70.99

250b

Ball Joint

709401991

$52.99

250c

Steering Rod Nut

715900238

$2.30

260

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$466.49

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Steering Rod Nut

715900238

$2.30

260d

Tie Rod

715900838

$71.99

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

290

Hex. Flange Screw M10 X 25

207502546

$2.11

345

Torx Screw M6 X 20

250000712

$2.11

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
