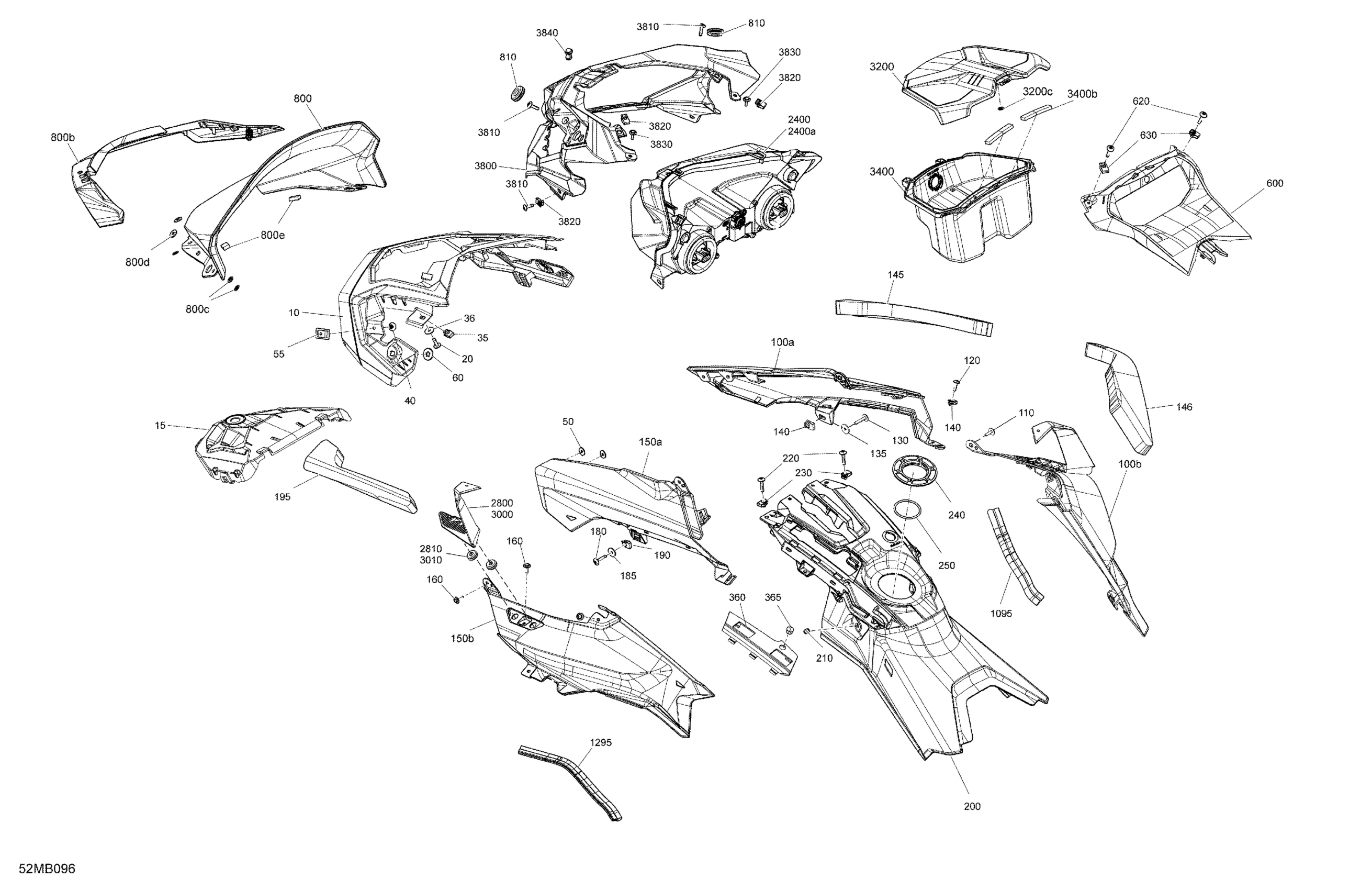

Ski-Doo MACHZ STD 900 ACE TURBO R - 2022 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306284

$153.70

15

Central Hood Grille

517307593

$14.88

20

Torx Screw M5 X 20

250000528

$2.00

35

Panel Nut M5 X 0.8

250000958

$4.00

36

Washer

250200166

$2.00

40

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

50

Washer

517124300

$0.18

55

Rivet Plate

517305109

$4.52

60

Push Nut

508000853

$1.87

100a

RH Front Hood

517307887

$191.76

100b

RH Rear Hood

517307888

$191.76

110

Screw M4 X 16

250000725

$3.30

120

Torx Screw M5 X 20

250000528

$2.00

130

Torx Screw M5 X 26

250000587

$4.15

135

Washer

250200166

$2.00

140

Panel Nut M5 X 0.8

250000958

$4.00

145

RH Front Hood Foam

517305763

$11.19

146

RH Hood Foam

517306001

$11.19

150a

LH Front Hood

517307891

$190.27

150b

LH Rear Hood

517307892

$186.54

160

Screw M4 X 16

250000725

$3.30

180

Torx Screw M5 X 26

250000587

$4.15

185

Washer

250200166

$2.00

190

Panel Nut M5 X 0.8

250000958

$4.00

195

LH Front Hood Foam

517305764

$11.19

200

Rear Console

517307684

$156.69

210

Flange Elastic Nut M5

233251434

$1.91

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

240

Console Nut

517306602

$10.88

250

O-Ring

706002839

$0.96

360

LH Front Console

517306583

$29.07

365

Cap

572051500

$5.22

600

Gauge Support

517307400

$35.04

620

Torx Truss M5 X 20

250000586

$4.15

630

Panel Nut M5 X 0.8

250000958

$4.00

800

Windshield | Includes 800 to 800e

517307895

$141.01

800b

Deep Black, Windshield Support

517305749

$30.57

800c

Push Nut

732610072

$1.97

800d

Rubber Washer 5 mm

250200024

$2.03

800e

Gasket, Neoprene 2000Mm Long

219704476

$14.51

810

Grommet

517303756

$3.61

1095

Neoprene Seal 3000Mm Long

219704371

$50.34

1295

Neoprene Seal 3000Mm Long

219704371

$50.34

2400

Headlamp | Includes 2400 to 2400a

517305752

$412.66

2400a

Bulb

415130081

$38.78

2800

RH Air Deflector

517308096

$32.06

2810

Grommet

517307161

$2.55

3000

LH Air Deflector

517308095

$32.06

3010

Grommet

517307161

$2.55

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

3200c

Push Nut

732610072

$1.97

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

3400b

Seal Joint

517305157

$2.21

3800

Headlamp Fairing

517306301

$71.61

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00

3830

Screw M4 X 16

250000725

$3.30

3840

Tuflok Plastic Rivet

293150230

$1.39
