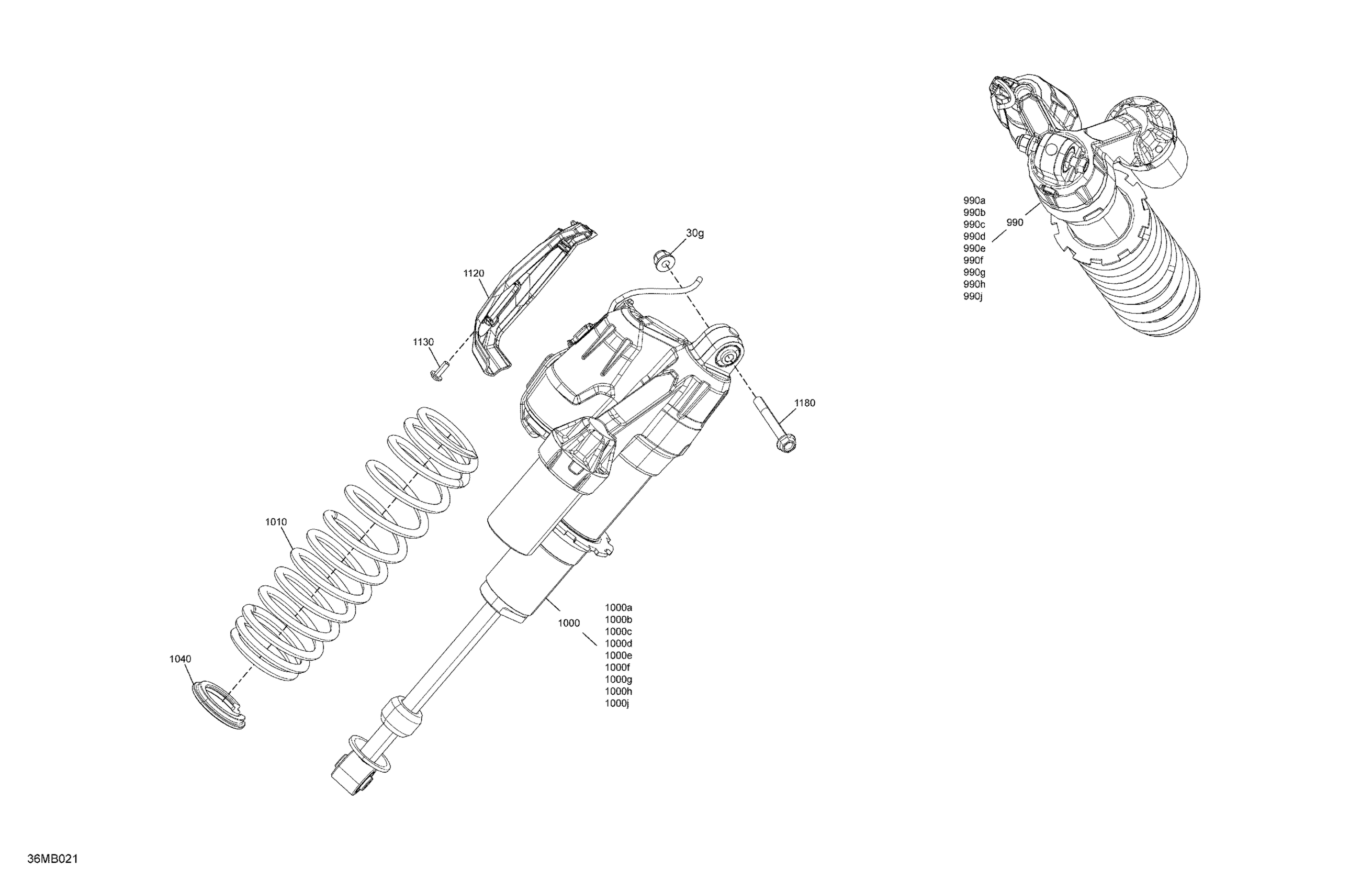

Ski-Doo MACHZ STD 900 ACE TURBO R - 2022 Suspension - Front Shocks Diagram

Description

Price

990

RH Front Shock Absorber | Included 990 to 990j

505075166

$1,529.99

990a

O-Ring

415093807

$33.55

990b

Piston Ring | Not Shown

415093806

$14.52

990c

Screw | Not Shown

505070399

$3.88

990d

O-Ring

505070400

$4.25

990e

Circlip - Call your local BRP dealership

715900076

$3.91

990f

O-Ring

415093804

$4.25

990g

Bolt

415093810

$14.52

990h

O-Ring

415038700

$38.78

990j

Base Valve

415130165

$72.36

1000

LH Front Shock Absorber | Included 1000 to 1000j

505075167

$1,529.99

1000a

O-Ring

415093807

$33.55

1000b

Piston Ring | Not Shown

415093806

$14.52

1000c

Screw | Not Shown

505070399

$3.88

1000d

O-Ring

505070400

$4.25

1000e

Circlip - Call your local BRP dealership

715900076

$3.91

1000f

O-Ring

415093804

$4.25

1000g

Bolt

415093810

$14.52

1000h

O-Ring

415038700

$38.78

1000j

Base Valve

415130165

$72.36

1010

Deep Black, Spring

505075194

$58.18

1040

Spring Stopper

503194270

$16.39

1120

Connector Guard

503196017

$10.93

1130

Torx Screw M5 X 14

250000742

$1.37

1180

Hex. Flange Screw M8 X 58

250000824

$2.00

30g

Elastic Flange Nut M8

233281466

$0.96
