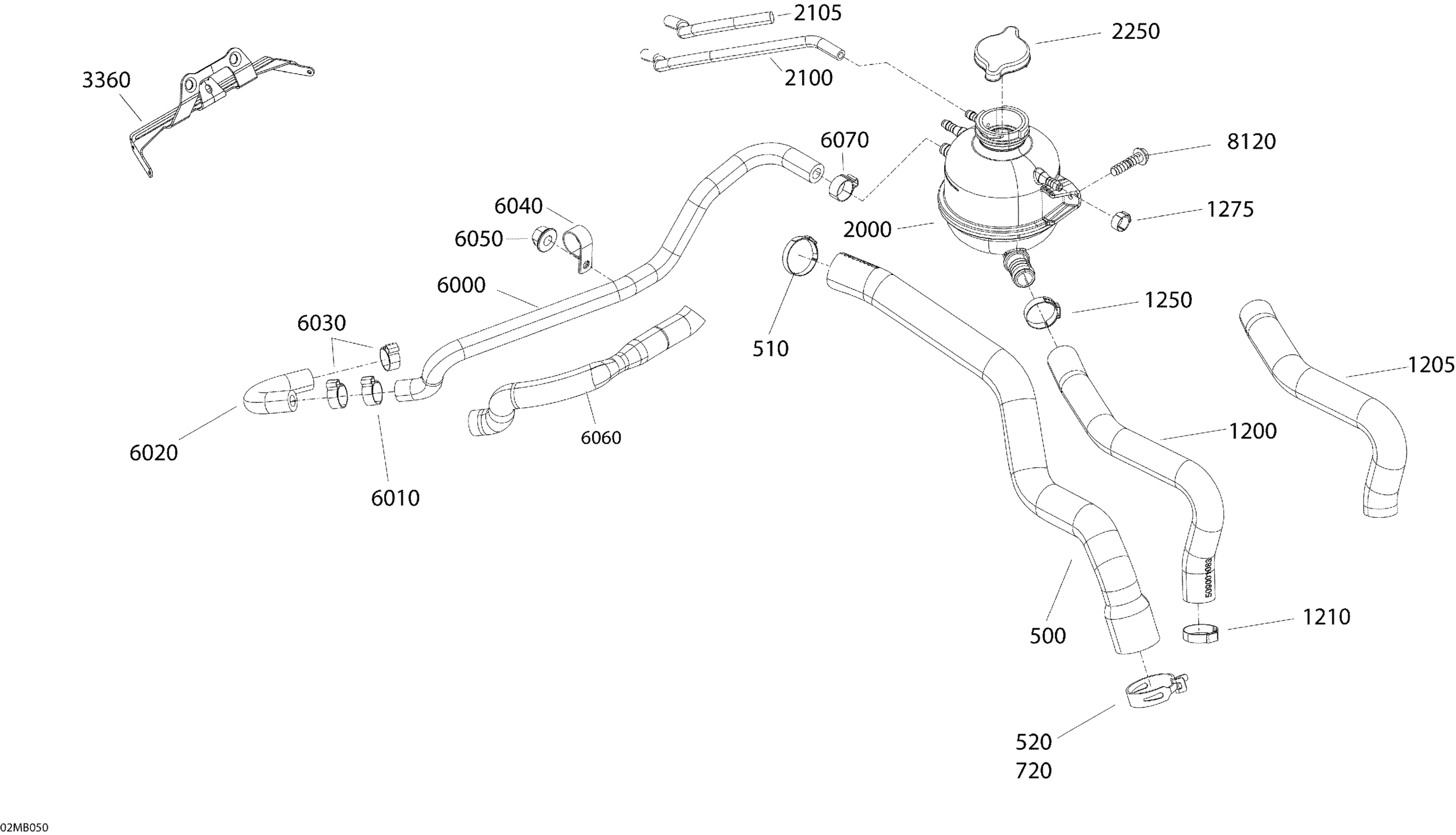

Ski-Doo MACHZ STD 900 ACE TURBO R - 2022 Engine - Cooling Diagram

Description

Price

500

Hose Radiator In

509001079

$15.35

510

Oetiker Gear Clamp 36.1MM

509000045

$3.55

520

Norma Spring Clamp

293650264

$4.28

720

Norma Spring Clamp

293650264

$4.28

1200

Coolant Tank Hose

509001083

$15.35

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1210

Crimp Clamp

293650099

$3.55

1250

Oetiker Clamp

509001041

$2.75

1275

Oetiker Clamp

293650046

$2.33

2000

Cooling Tank

509001012

$86.12

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

2105

Protector Tube | Not shown

503195447

$12.58

2250

Radiator Pressure Cap

509000180

$11.69

3360

Central Radiator Support

509001023

$18.43

6000

Hose

509001092

$15.35

6010

Oetiker Clamp

293650011

$2.46

6020

Hose

509001090

$23.82

6030

Oetiker Clamp

293650011

$2.46

6040

Clamp

512061265

$4.88

6050

Hex. Flange Nut M6

233061414

$1.34

6060

Tube 25Mm 1000Mm Long | Engine 450

219704350

$49.97

6070

Oetiker Clamp

293650011

$2.46

8120

Hex. Flange Screw K50 X 20

241152060

$1.57
