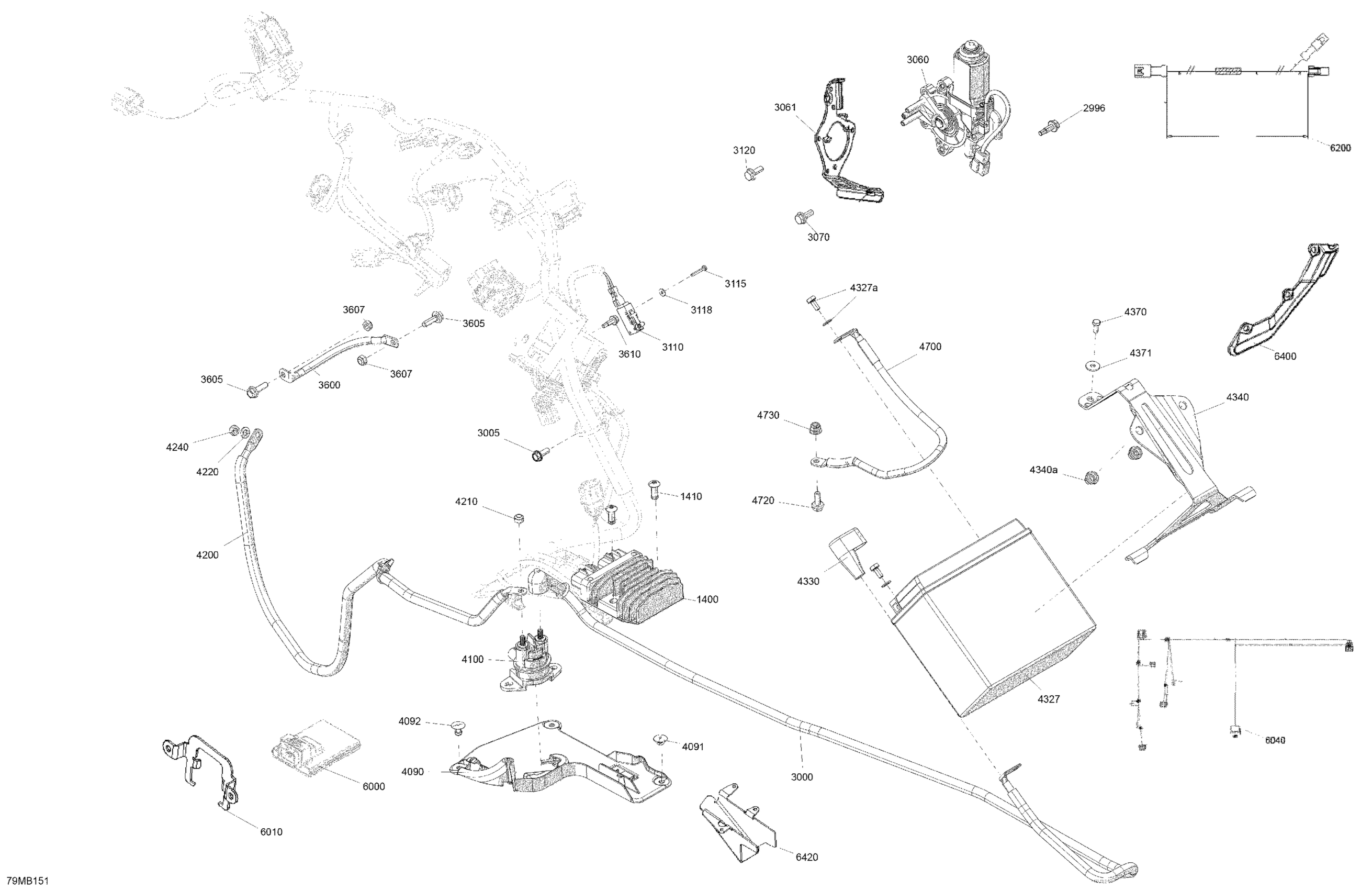

Ski-Doo MACHZ STD 900 ACE TURBO R - Europe, 2022 Electric - Lower Section Diagram

#

Description
Price

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

1410

Monobolt Rivet 6.4

293150182

$3.09

2996

Hex. Flange Screw M5 X 16

250000911

$0.85

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3060

Motor Ass'y

515180200

$184.99

3061

Stopper Plate

515178896

$26.99

3070

Hex. Flange Screw M6 X 16

207661644

$0.74

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3116

Rivet | Not Shown

515178495

$1.29

3118

Flat Washer M3, Stainless

234032600

$0.55

3120

Hex. Flange Screw M6 X 20

210262040

$2.11

3600

Ground Wire

515178338

$16.49

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4090

Starter Relay Support

515178244

$3.49

4091

Pop Rivet 3/16"

293150103

$0.55

4092

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4100

Starter Relay

278003012

$42.49

4200

Battery Wire

515178336

$47.99

4210

Elastic Stop Nut M6

232561434

$1.99

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561434

$1.99

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4327a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

6000

Suspension Controle Module

515178849

$509.99

6010

Module Support

515179152

$35.99

6040

Suspension Wiring Harness

515179282

$229.99

6200

Rear Suspension Wiring Harness

515178738

$78.99

6400

RH Central Skid Plate

515178913

$25.99

6405

Rivet 3/16"

293150102

$0.70

6420

Lower Rear Skid Plate

515179147

$46.49
