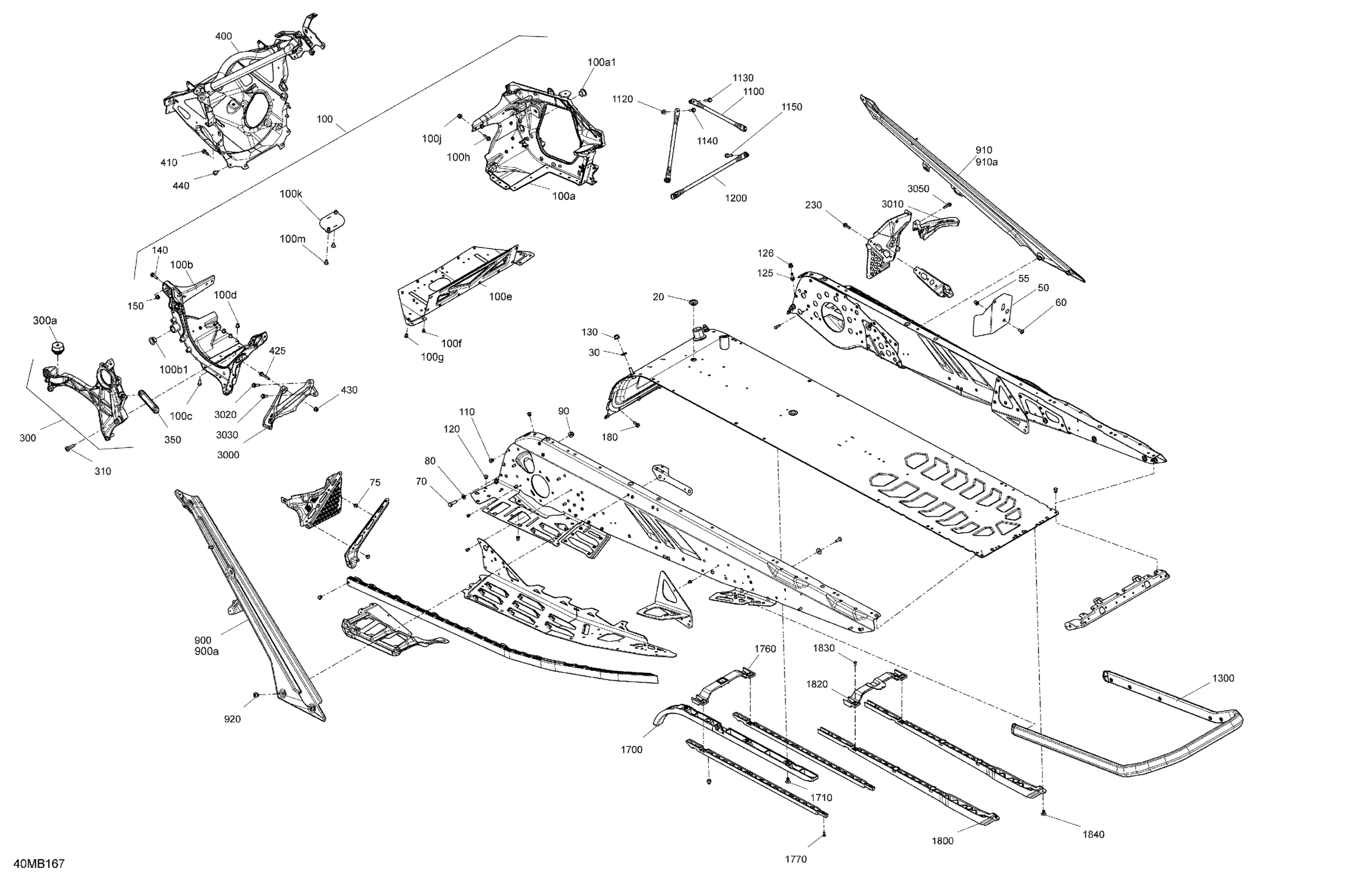

Ski-Doo MACHZ STD 900 ACE TURBO R - Europe, 2022 Frame - System Diagram

#

Description
Price

20

Black, Plug

293730052

$6.18

30

Conical Spring Washer M8

250200146

$0.96

50

Heat Shield

518331823

$7.19

55

Insert

293450275

$11.36

60

Torx Head Screw M6 X 16

250000717

$2.00

70

Hex Screw M8 X 30

250000942

$1.06

75

Hemlock Rivet, 6.5 mm

293150096

$3.07

80

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518332946

Unavailable

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$181.31

100a1

Leg Bushing

505072690

$5.75

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

100b1

Leg Bushing

505072690

$5.75

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

100d

Collar Huck Magna-Grip 6.4

293150149

$0.36

100e

Bottom Plate

518332715

$33.55

100f

Avex Rivet

390909100

$0.28

100g

Insert M5 X 0.8

293450268

$1.90

100h

Hex. Flange Screw M6 X 20

207662046

$2.00

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

100k

Oil Plate

518332276

$16.39

100m

Torx Truss Screw M6 X 12

250000767

$1.91

110

Ornit Rivet 6,5 X 14.5

293150266

$1.88

120

Hemlock Rivet, 6.4 mm

293150174

$6.24

125

Hex. Flange Screw M6 X 20

207662044

$1.91

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

130

Hex. Flange Elastic Nut M8

233281414

$1.31

140

Hex. Flange Screw M6 X 20

207662046

$2.00

150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

180

Hex. Flange Screw M6 X 16

207661646

$1.15

230

Hex. Flange Screw M6 X 20

207562056

$2.00

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$176.09

300a

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.40

400

Chassis Suspension Module

518334461

$633.55

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

440

Ornit Rivet 6,5 X 14.5

293150266

$1.88

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

900a

LH Rear Diagonal Cross Member

518333356

$105.19

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$105.19

910a

RH Rear Diagonal Cross Member

518332559

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329370

$20.12

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1130

Hex. Flange Screw M6 X 25

207662556

$4.15

1140

Hex. Flange Screw M6 X 20

207662046

$2.00

1150

Hex. Flange Screw M6 x 20

207662056

$0.96

1200

Center Column Support

518329755

$3.36

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

1760

Front Protective Structure

518333935

$3.30

1770

Torx Truss PT K40 x 12

250001131

$2.00

1800

Rear Protector

518329979

$7.33

1820

Support

520001545

$3.30

1830

Torx Truss PT K40 x 12

250001131

$2.00

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
