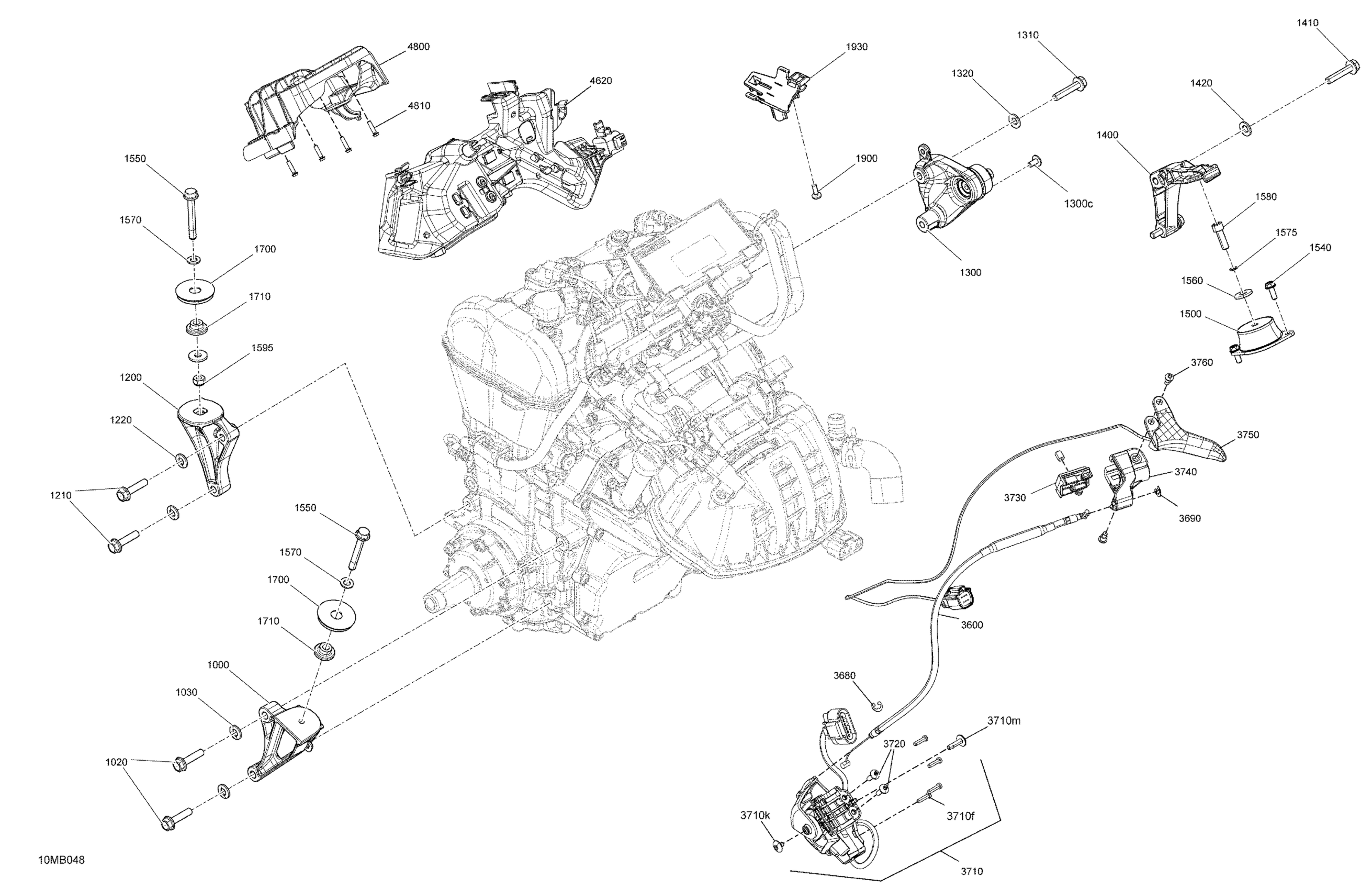

Ski-Doo MACHZ STD 900 ACE TURBO R - Europe, 2022 Engine - System Diagram

#

Description
Price

1000

Rear PTO Support

512061220

$20.99

1020

Hex. Flange Screw M8 X 35

250000986

$2.11

1030

Conical Spring Washer M8

250200146

$1.01

1200

Front PTO Support

512061193

$20.99

1210

Hex. Flange Screw M8 X 35

250000986

$2.11

1220

Conical Spring Washer M8

250200146

$1.01

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$104.99

1300c

Torx Truss Screw M6 X 12

250000767

$2.00

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

1320

Conical Spring Washer M8

250200146

$1.01

1400

Rear Support, Mag

512061194

$21.99

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Rubber Mount

512061514

$73.99

1540

Hex. Flange Screw M6 X 16

250001062

$1.57

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1575

O-Ring

293300123

$1.03

1580

Socket Head Screw M8 X 25

205082544

$1.15

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061408

$20.99

1710

Spacer

512060285

$19.99

1900

Torx Screw K50 X 16

250000720

$1.69

1930

Support Solenoid

512061327

$5.39

3600

Throttle Cable

512061396

$17.25

3680

Circlip

414274500

$0.90

3690

Circlip

414274500

$0.90

3710

Throttle Housing Ass'y | Includes 3710 to 3710m

512061406

$439.99

3710f

Torx Screw

250000671

$1.01

3710k

Screw

512060961

$11.60

3710m

Torx Screw M5 X 20

250000528

$2.11

3720

Torx Screw M5 X 14

250000742

$1.47

3730

Upper Housing

512060859

$8.89

3740

Lower Housing

512060860

$17.53

3750

Throttle Ass'y

512061266

$124.99

3760

Flange Screw M5x12

250000991

$7.51

4620

Multi Purpose Support

512061395

$14.30

4800

Module Support

512061397

$16.33

4810

Hex. Flange Screw K40 X 16

241141660

$1.48
