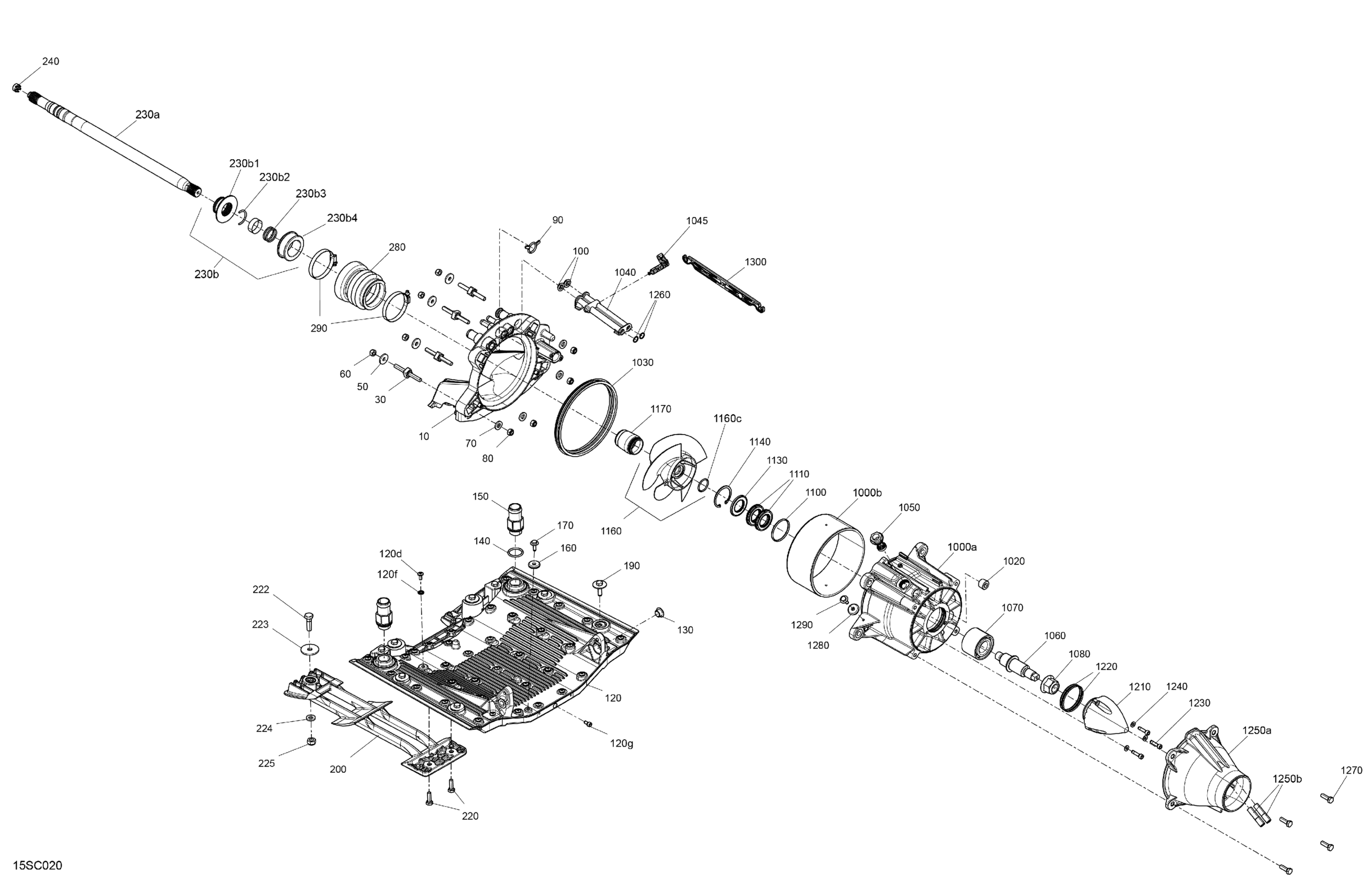

Sea-doo GTX 170, 2023 Drive - Propulsion - With IDF Diagram

#

Description
Price

10

Pump Support

271001976

$41.57

30

Square Stud

250300046

$11.91

50

Flat Washer

279000336

$8.35

60

Hex. Elastic Nut M8 Brass

232581200

$1.29

70

Flat Washer M8.5 x 18

293050001

$1.29

80

Hex. Elastic Nut M8 Brass

232581200

$1.29

90

Gasket

271002033

$1.20

100

Watertight Seal

293250084

$5.81

120

KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.

295501264

Unavailable

120d

Torx Screw M6 X 14

250000384

$6.15

120f

Sealing Washer

250200114

$3.61

120g

Socket Drain Plug M6 X 12

250500005

$11.74

130

Venturi Bushing

293900007

$3.71

140

O-Ring

293300121

$6.18

150

Strait Fitting

293710124

$12.91

160

Anode Zinc

271001920

$11.43

170

Hex Screw M6 X 20

250000965

$1.74

190

Hex Sems Screw M8 X 30

250000967

$2.35

200

Intake Grate - Anodized

271002159

$28.57

220

Hex Sems Screw M8 X 25

250000968

$2.35

222

Hexagonal Head Cap Screw M10 X 35

250001159

$1.48

223

Flat Washer

250200194

$4.84

224

Washer Flat M10

250200193

$4.54

225

Elastic Stop Nut M10, Brass

232501200

$2.16

230a

Propeller Shaft

271002212

$217.72

230b

Carbon Ring Kit | Includes 280b to 280b5

295501202

$66.27

230b1

Rotary Ring

271002206

Unavailable

230b2

C-Clip

271001575

$4.54

230b3

O-Ring

293300219

$0.75

230b4

Carbon Ring

271002109

Unavailable

240

Drive Shaft Plug

271002113

$8.37

280

Bellow Ass'y

271002194

$18.82

290

Tridon Clamp

293650179

$8.81

1000a

Impeller Housing

271002018

$227.47

1000b

Wear Ring

267000419

$68.87

1020

Black, Plastic Plug

267000469

$5.99

1030

Neoprene Seal

293200087

$9.19

1040

Water Outlet

271002150

$3.04

1045

Rotary Valve

271002148

$9.63

1050

Plug | Includes 370z to 370z1

267000282

$14.27

1060

Impeller Shaft

267000388

$94.22

1070

Angled Bearing

271002182

$66.27

1080

Elastic Flange Nut M20

250100104

$9.71

1100

O-Ring

293300090

$5.97

1110

Seal

271002071

$26.62

1130

Oil Seal

293200089

$15.57

1140

Circlip

293370038

$7.12

1160

Impeller Ass'y | Includes 360n to 360n3

267001108

$317.17

1160c

O-Ring

293300044

$0.86

1170

Guard

271002225

$9.20

1210

Impeller Cover

267000428

$14.27

1220

O-Ring

293300086

$2.90

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

1240

Stainless Flat Washer M6

234061600

$0.25

1250a

Venturi Anodized

271001999

$31.82

1250b

Siphone Tube

271002369

$1.27

1260

O-Ring

293300013

$5.69

1270

Hex Sems Screw M8 X 25

250000968

$2.35

1280

Anode Zinc

271001920

$11.43

1290

Hex Screw M6 X 20

250000965

$1.74

1300

Arm

271002149

$11.43
