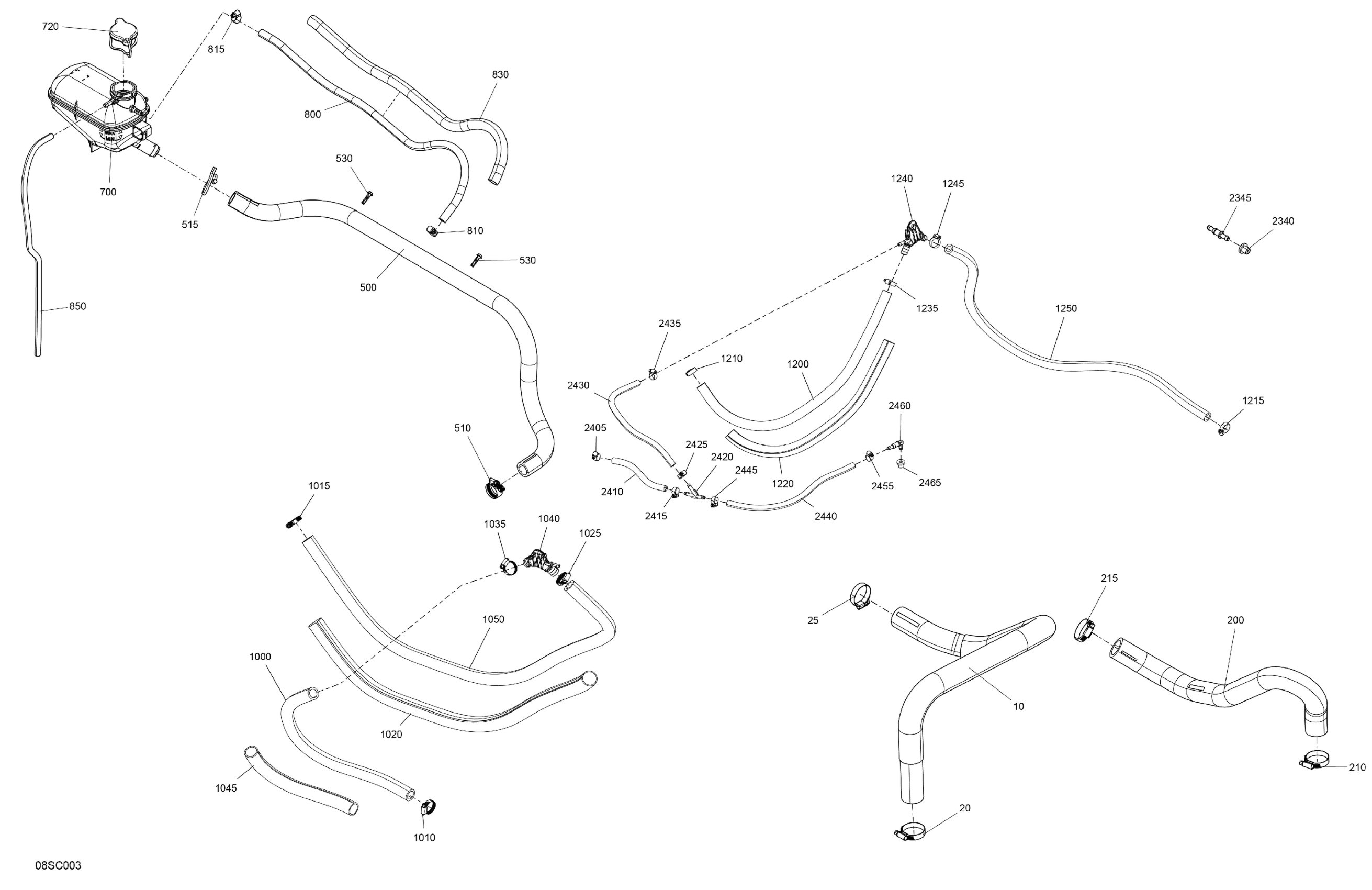

Sea-doo GTX 170, 2023 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$51.97

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Formed Hose

276000517

$45.47

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Coolant Tank Hose

276000523

$31.17

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

530

Hex. Flange Screw K50 X 20

241152060

$1.57

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$1.74

815

Tridon Gear Clamp

293650170

$1.74

830

Was 409901800 Tubing (13 mm)

219704400

$9.40

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$3.61

1015

Tridon Gear Clamp

293650051

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1025

Tridon Gear Clamp

293650051

$3.61

1035

Tridon Gear Clamp

293650051

$3.61

1040

Fitting

276000547

$4.23

1045

Tubing 25 MM 1000MM Long

219704402

$12.69

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Tridon Gear Clamp

293650172

$2.68

1215

Tridon Gear Clamp

293650172

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

1235

Tridon Gear Clamp

293650172

$2.68

1240

Fitting

276000548

$4.85

1245

Tridon Gear Clamp

293650172

$2.68

1250

Was 276000001 Hose 12.5 mm

219704394

$42.87

2340

Grommet

293720029

$1.13

2345

Straight Fitting

293710133

$12.52

2405

Tridon Gear Clamp

293650170

$1.74

2410

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2415

Tridon Gear Clamp

293650170

$1.74

2420

Y-Fitting

293710059

$8.19

2425

Tridon Gear Clamp

293650170

$1.74

2430

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2435

Tridon Gear Clamp

293650170

$1.74

2440

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2445

Tridon Gear Clamp

293650170

$1.74

2455

Tridon Gear Clamp

293650170

$1.74

2460

Elbow Male Connector

414580600

$3.50

2465

Grommet

293720029

$1.13
