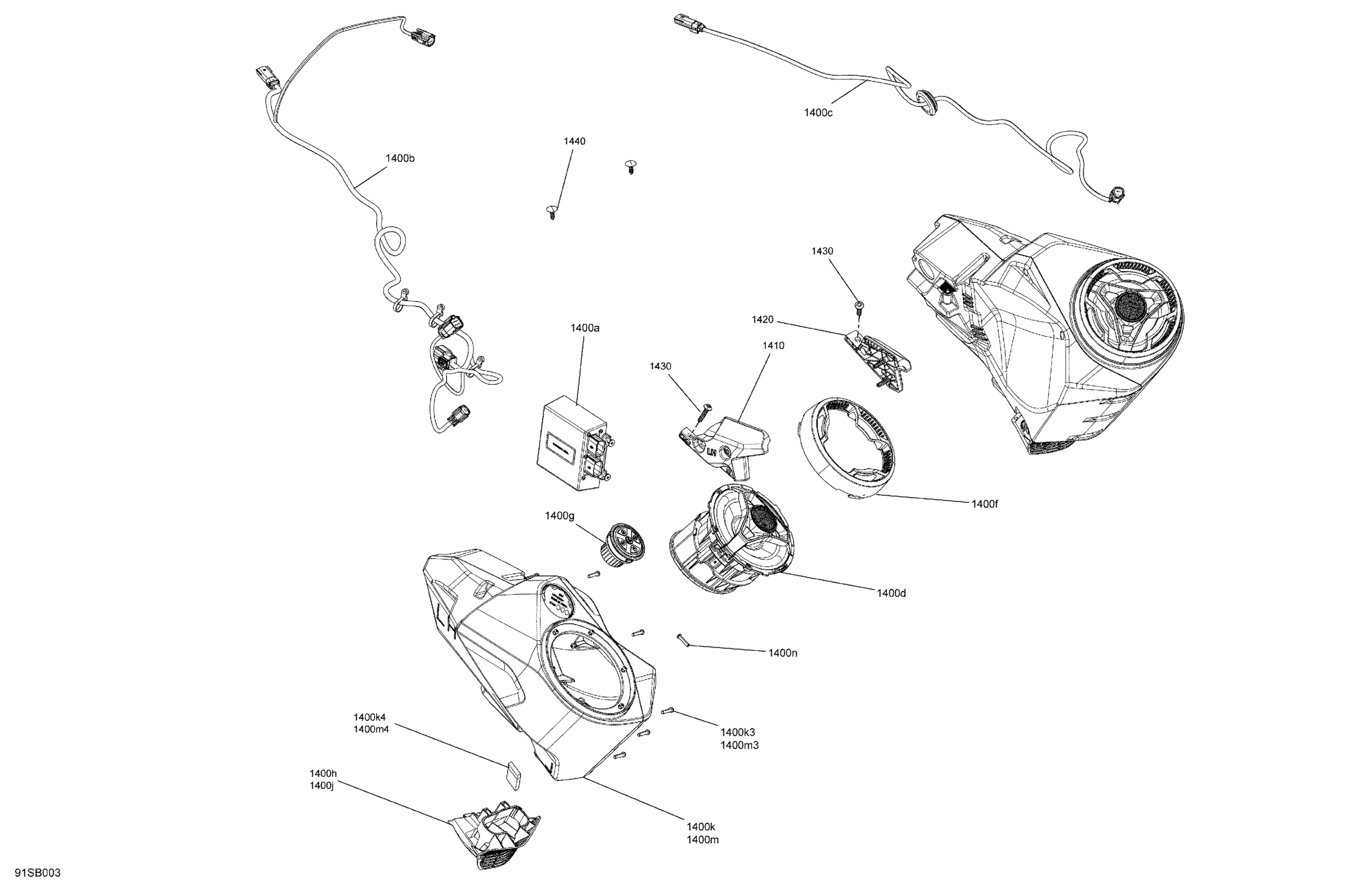

Sea-doo 001 - GTX 170, 2022 08- Electric - Audio System Diagram

Description

Price

1400a

Amplifier

278003464

$465.99

1400b

Amplifier Harness

278003497

$83.99

1400c

Speaker Harness

278003462

$22.99

1400d

Speaker

278003463

$153.49

1400f

Speaker Grille

278003466

$16.34

1400g

Audio Control

278003465

$381.49

1400h

Deep Black, LH Protective Grille

278003616

$11.49

1400j

Deep Black, RH Protective Grille

278003617

$11.49

1400k

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$328.49

1400k3

Plastite Torx Screw #10 X 7/8"

250000207

$2.00

1400k4

Stopper

278003860

$0.76

1400m

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$328.49

1400m3

Plastite Torx Screw #10 X 7/8"

250000207

$2.00

1400m4

Stopper

278003860

$0.76

1400n

Plastite Torx Screw #10 X 7/8"

250000207

$2.00

1410

LH Bracket

278003489

$5.79

1420

RH Bracket

278003518

$5.79

1430

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1440

Black, Dart

293730011

$0.99
