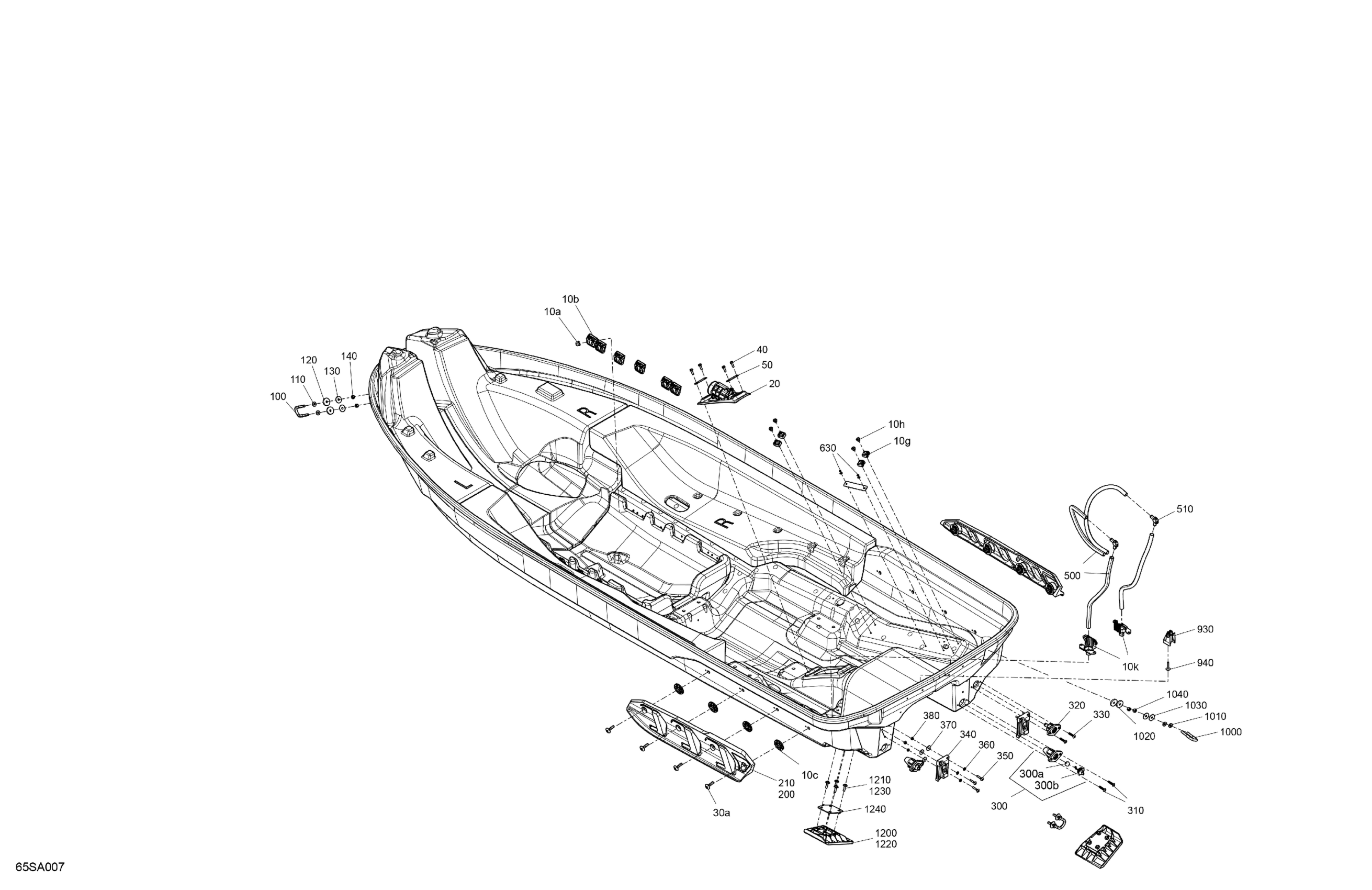

Sea-doo GTX 170, 2021 Body - Hull Diagram

#

Description
Price

10a

Rivet | Model-T3

293150067

$2.29

10b

Strap Retaining

270000933

$5.47

10c

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10g

Strap Anchor

270000854

$5.30

10h

Pop Rivet 3/16

293150186

$1.63

10k

Pump Support

269800956

$2.65

20

Hull Insert

293450384

$28.57

30a

Torx Head Screw M8 X 35

250001215

$4.84

40

Hex. Flange Screw M6.81 x 20

243162060

$3.30

50

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Rubber Washer

293830037

$2.68

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

RH Sponson

292001953

$53.27

210

LH Sponson

292001954

$63.67

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$11.00

300a

Floating Ball

293830080

$5.56

300b

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

310

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

320

Drain Neck Ass'y

292002153

$10.67

330

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

340

Ladder Attachment

292002113

$7.57

350

Truss Cone Torx Screw M6 X 30

250000924

$6.15

360

Stainless Flat Washer M6

234061600

$0.25

370

Flat Washer M6.6 X 22

250200022

$1.87

380

Elastic Stop Nut M6, Brass

232561200

$3.51

500

Hose

293830198

Unavailable

510

Fitting Elbow 90°

293710152

$14.92

630

Avdel Rivet 3/16"

293150037

$0.47

930

Strap Anchor

270000988

$8.06

940

Hexagonal Cap Screw M6 X35

250000399

$3.61

1000

U-Clamp

292000933

$32.47

1010

Flat Washer M8.5 x 18

293050001

$1.29

1020

Rubber Washer

293830037

$2.68

1030

Flat Washer 8 mm, Stainless

250200175

$1.29

1040

Hex. Elastic Nut M8 Brass

232581200

$1.29

1200

LH Trim Tab

292002102

$14.27

1210

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1220

RH Trim Tab

292002103

$14.27

1230

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1240

Gasket

277002171

$3.48
