09- Front Cover

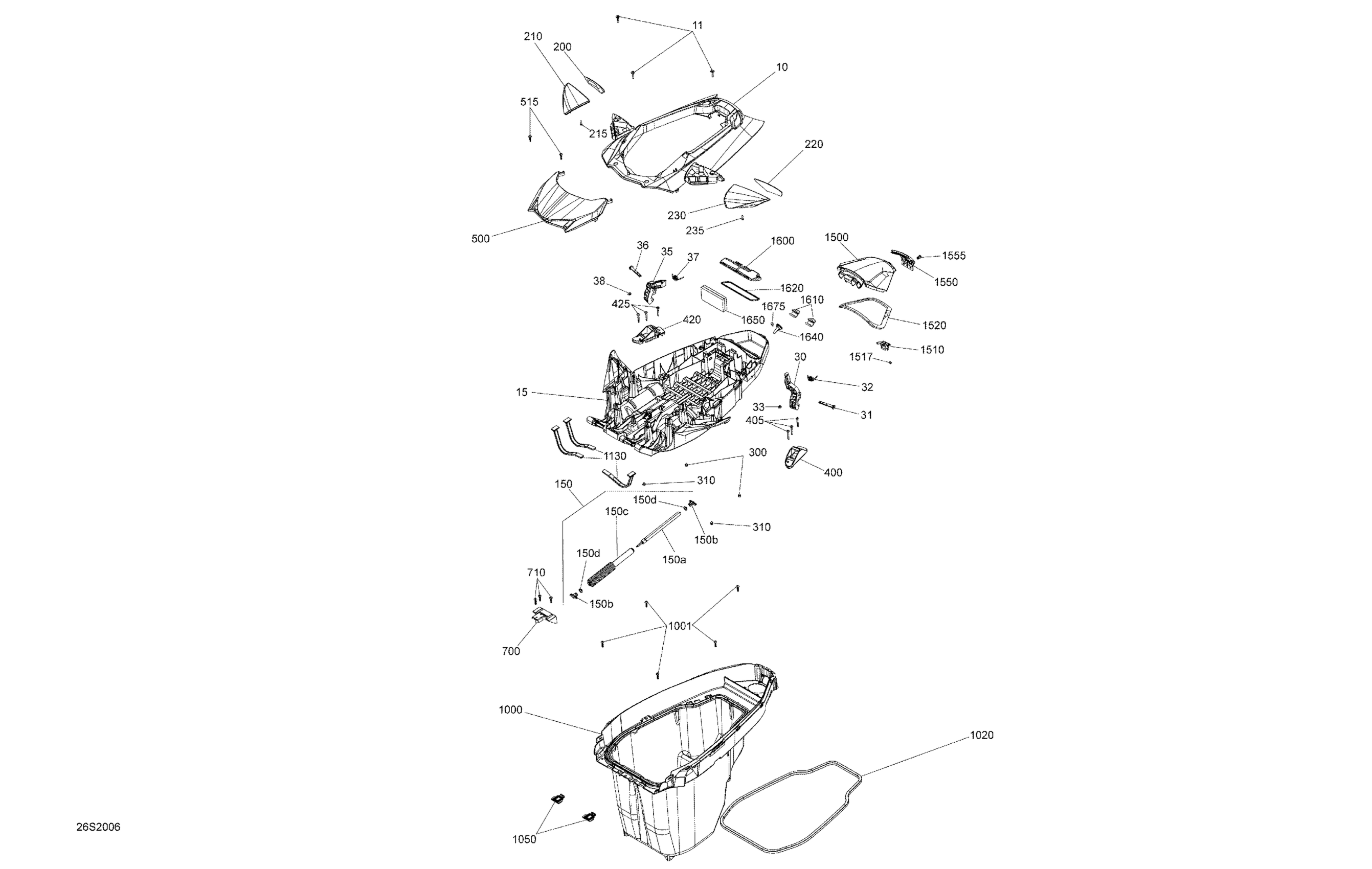

Sea-doo 001 - GTX 170, 2020 09- Front Cover Diagram
#
10
Outer Skin
269502394
$204.99
11
Hexagonal Cap Screw M6 X35
250000399
$4.44
15
Inner Console Support
269502265
$159.99
30
LH Latch
269502267
$30.99
31
Latch Axis
269502326
$18.49
32
Latch Spring
269502268
$26.99
33
Rubber Bumper
293830005
$8.09
35
RH Latch
269502299
$30.99
36
Latch Axis
269502326
$18.49
37
Latch Spring
269502268
$26.99
38
Rubber Bumper
293830005
$8.09
150<150d
Shock Absorber Assembly | Includes 150 to 150b
269502426
$99.99
150a
Not Available As Spare Part - Friction Washer
Unavailable
150b
Not Available As Spare Part - Friction Washer
Unavailable
150c
Not Available As Spare Part - Friction Washer
Unavailable
150d
Tie Wrap 94 mm | 4X4
293750001
$1.03
200
RH Mirror Glass
269502276
$88.99
210
Stone Grey, RH Mirror Cover
269502342
$55.99
215
Hex. Screw 10-14 X 7/8”
211000023
$3.59
220
LH Mirror Glass
269502274
$88.99
230
Stone Grey, LH Mirror Cover
269502341
$55.99
235
Hex. Screw 10-14 X 7/8”
211000023
$3.59
300
Rubber Bumper
293830005
$8.09
310
Rubber Bumper
293830005
$8.09
400
LH Latch Base
269502385
$18.99
405
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
420
RH Latch Base
269502386
$18.99
425
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
500
Stone Grey, Top Cover
269502347
$119.99
515
Screw Torx M6.81 X 30
250001007
$2.54
700
Shock Base
269502282
$25.99
710
Screw Torx M6.81 X 30
250001007
$2.54
1000
Bin Compartment
264000144
$124.99
1001
Screw Torx M6.81 X 30
250001007
$2.54
1020
Gasket
293250478
$13.49
1050
Adjustment Hook
269502325
$10.99
1130
Strap
269502145
$14.30
1500
Glove Box Door
264000132
$65.99
1510
Glove Box Latch
264000133
$21.99
1517
Screw K40 X 10
250001119
$2.40
1520
Cover Gasket
293250717
$29.99
1550
Glove Box Trim
269502538
$19.49
1555
Tuflok Plastic Rivet
293150230
$1.47
1600
Watertight Door
264000134
$14.49
1610
Clip
269501718
$15.89
1620
Gasket
293250412
$17.99
1640
USB Plug
269502324
$3.09
1650
Sealed Compartment Foam
264000135
$12.99
1675
Vent Membrane
264000137
$12.99
