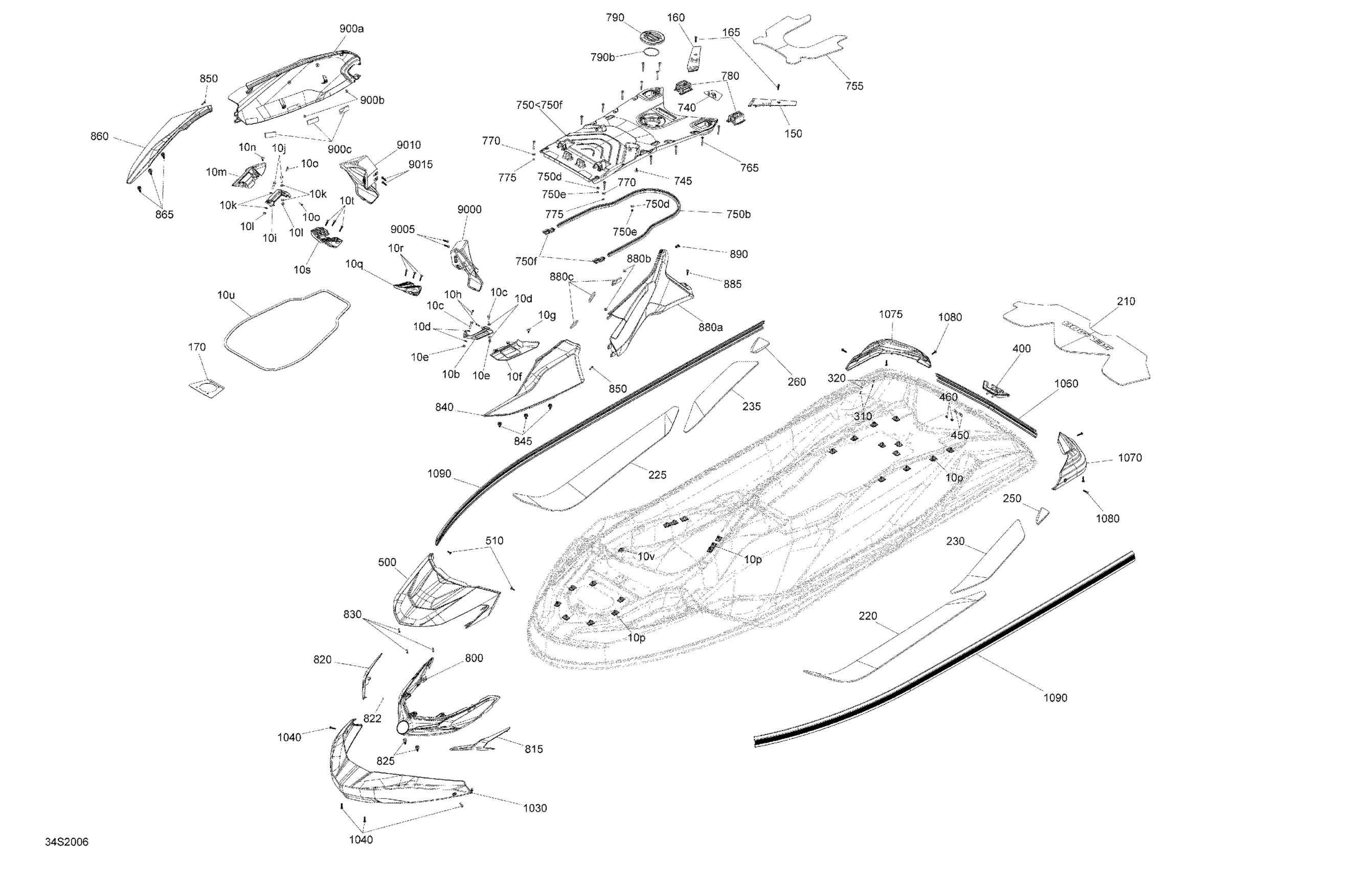

Sea-doo GTX 170, 2020 Body Diagram

#

Description
Price

10b

LH Cleat

291004559

$9.79

10c

Hex. Screw M8 X 35

207083560

$1.47

10d

Stainless, Flat Washer 8 mm

234081600

$0.55

10e

Hex. Elastic Nut M8 Brass

232581200

$2.22

10f

LH Shell Cleat

291004661

$10.99

10g

Black, Dart

293730011

$0.99

10h

Hex. Screw 10-14 X 7/8”

211000023

$3.59

10i

RH Cleat

291004720

$9.79

10j

Hex. Screw M8 X 35

207083560

$1.47

10k

Stainless, Flat Washer 8 mm

234081600

$0.55

10l

Hex. Elastic Nut M8 Brass

232581200

$2.22

10m

RH Shell Cleat

291004719

$10.99

10n

Black, Dart

293730011

$0.99

10o

Hex. Screw 10-14 X 7/8”

211000023

$3.59

10p

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

10q

LH Support

291004714

$10.99

10r

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

10s

RH Support

291004715

$12.49

10t

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

10u

Gasket

293250401

$12.11

10v

Tie-Rap Mount

293750025

$1.25

150

LH Shim

291005176

$16.49

160

RH Shim

291005177

$16.49

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

170

Gasket

293250451

$23.99

210

Rear Plat-Form Carpet

291005076

$104.99

220

LH Front Anti Slip Mat

291005351

$33.99

225

RH Front Anti Slip Mat

291005350

$33.99

230

LH Rear Anti Slip Mat

291005353

$17.20

235

RH Rear Anti Slip Mat

291005352

$17.20

250

LH Anti-Skid Pad

291004516

$5.61

260

RH Anti-Skid Pad

291004517

$5.61

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

Cleat

291004597

$24.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

500

Stone Grey, Hood

291004795

$104.99

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

740

Hose Protector

291004941

$4.69

745

Black, Dart

293730011

$0.99

750<750f

Access Cover Ass'y | Includes 750 to 750f

291005189

$234.99

750b

Was 293200062 Seal

219704366

$76.49

750d

Flat Washer M6, Stainless

234062600

$0.77

750e

Elastic Stop Nut M6, Brass

232561200

$4.23

750f

Seal

291004717

$12.99

755

Black, Mat Cover

291004668

$41.49

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

770

Flat Washer M6, Stainless

234062600

$0.77

775

Elastic Stop Nut M6, Brass

232561200

$4.23

780

Linq Bases Kit

295100858

$13.30

790<790b

Access Cap Ass'y

291004481

$10.99

790b

Not Available As Spare Part - Friction Washer

Unavailable

800

Front Hood Grille

291005915

$35.99

815

Deep Black, LH Trim

291005964

$28.99

820

Deep Black, RH Trim

291005965

$28.99

822

Push Nut | Not shown

211100002

$2.19

825

Dard

293730071

$1.15

830

Hex. Screw 10-14 X 7/8”

211000023

$3.59

840

Iceland Grey, LH Front Body Panel

291004676

$75.99

845

Dard

293730071

$1.15

850

Hex. Screw 10-14 X 7/8”

211000023

$3.59

860

Iceland Grey, RH Front Body Panel

291004775

$75.99

865

Dard

293730071

$1.15

880a

Iceland Grey, LH Central Body Panel

291004556

$164.99

880b

Rubber Bumper

293830005

$8.09

880c

Stopper

278003618

$0.74

885

Screw Torx M6.81 X 30

250001007

$2.54

890

Tuflok Plastic Rivet

293150230

$1.47

900a

Iceland Grey, RH Central Body Panel

291004558

$164.99

900b

Rubber Bumper

293830005

$8.09

900c

Stopper

278003618

$0.74

1030

Front Bumper

291004452

$77.49

1040

Screw Torx M6.81 X 30

250001007

$2.54

1060

Bumper 2775±25mm

291004468

$134.99

1070

LH Rear Bumper

291004465

$30.49

1075

RH Rear Bumper

291004466

$30.49

1080

Screw Torx M6.81 X 30

250001007

$2.54

1090

Bumper 2775±25mm

291004468

$134.99

9000

LH Side Grille

291004455

$11.49

9005

Screw Torx M6.81 X 30

250001007

$2.54

9010

RH Side Grille

291004456

$11.49

9015

Screw Torx M6.81 X 30

250001007

$2.54
